Eaton Tripp Lite Series PDU Metered ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM – horizontal rackmount – power

Add to Wishlist

Quick tech specs

  • Single-Phase Metered/ATS Rackmount PDU w/ 24 Outlets and 2 10ft cords
  • Single phase 2.9kW 30A 120V Auto Transfer Switch PDU
  • Separate primary and secondary inputs
  • Digital meter reports voltage kW load level and output amps
  • PDU/ Power Distribution Unit/ Horizontal PDU/ PDU Strip/ rack pdu/ ATS pdu/ pdus/ metered pdu/ data center pdu/ network pdu
  • Enables redundant A/B power option for single-corded network devices

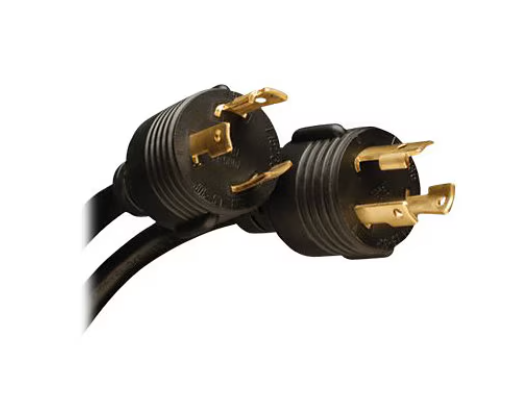

  • 2 L5-30P inputs 24 5-15/20R and 1 L5-30R outlets

AED5,999.00

Add to Wishlist

Know your gear

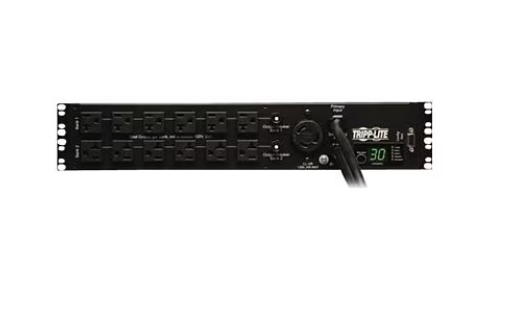

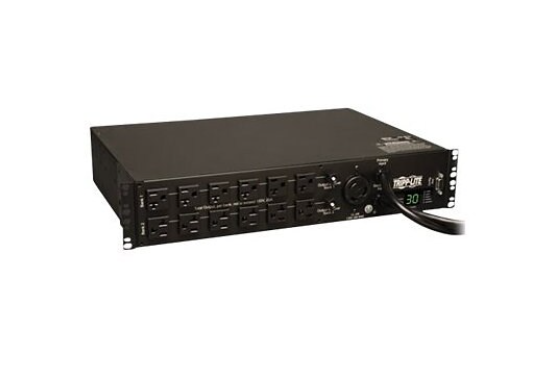

PDUMH30AT Metered ATS / Auto-Transfer Switch offers 120V 30A dual-input power distribution and visual current metering in a 2U horizontal rackmount installation format. Set of two NEMA L5-30P line cords enable separate primary and secondary input connections. Includes 25 built-in outputs (24 NEMA 5-15/20R and 1 L5-30R). Digital current metering with push-button display control tracks output power consumption in 4 segments: Bank 1 (12 upper 5-15/20R outlets), Bank 2 (12 lower 5-15/20R outlets), L5-30R (single outlet) and total PDU output. Supports 2U installation in 2 or 4 post racks, with additional support for wall-mount and under-counter placement. Tripp Lite’s Metered ATS / Auto-Transfer Switch PDU Systems provide redundant-power and hot-swappable UPS options for network and server applications powered by a single input line cord. Separate PRIMARY and SECONDARY input line cords enable a redundant connection to two separate mains circuits. ATS systems will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within 3-6 milliseconds. ATS functionality is supported by any two compatible power sources, regardless of phase angle, to offer support for a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant dual-UPS protection when each cord is connected to a separate UPS system. In a dual-UPS configuration, the primary input cable must be supported by a full time sine wave online UPS. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LEDs display primary and secondary power availability. Additional LEDs identify the displayed load segment reported by the digital current display.
SKU: PDUMH30AT Category: Tag:
Overview
Specification Details
Brand Tripp Lite
Product Line Eaton Tripp Lite Series
Model PDU Metered ATS 120V 30A 24 5-15/20R; 1 L5-30R 2 L5-30P 2URM
Edition Horizontal rackmount
Manufacturer Tripp Lite
Connectivity
Specification Details
Input Connectors 2
Power
Specification Details
Emergency Power Off Automatic Transfer Switch (ATS), Current meter, LED display
Frequency 60 hertz
Frequency Provided 60 hertz
Input Connector Type Power NEMA L5-30
Max Input Current 24 ampere
Output Connector Quantity 25
Power Output Connectors Details 1 x power NEMA L5-30, 24 x power NEMA 5-15/20
Power Provided 2.9 kilograms per millimetere
Provided Voltage AC 100/120/127 volt
Required Voltage AC 100/120/127 volt
Technical Information
Specification Details
Form Factor (Power Device) Rack-mountable
Operating Humidity 0 – 95% (non-condensing)
Product Information
Specification Details
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices

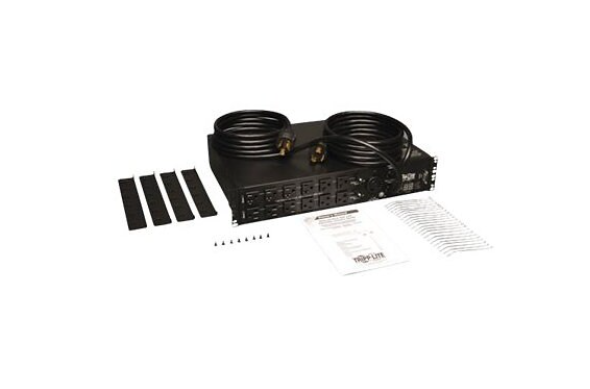

Included Items
Specification Details
Cables 2 x power cable 10 ft
Dimensions & Weight
Specification Details
Height 3.5 inch
Height (Rack Units) 2
Weight 13.89 lbs
Width 17.5 inch
Depth 12.5 inch
