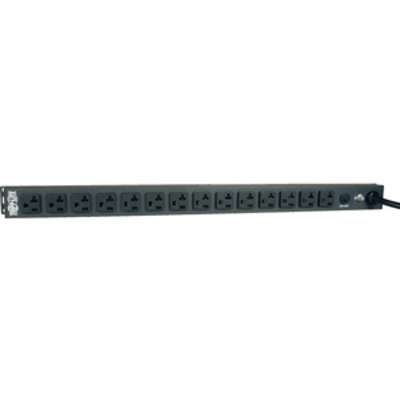

Eaton Tripp Lite Series PDU Single Phase Basic Vertical 120V 2.4kw 14 5-15/20R 20A 0U


  • Basic single phase 20A 120V PDU
  • 0U vertical rackmount installation
  • NEMA L5-20P locking input; 15 ft. / 4.5m line cord
  • 14 NEMA 5-15/20R outlets
  • 24 in. / 61cm height

AED2,299.00

The PDU1420T 2.4kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1420T features a single breakered load bank with 14 NEMA 5-15/20R outlets. The NEMA L5-20P input plug with long 15-foot (4.5 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected equipment from dangerous overloads. The 24-inch all-metal housing supports toolless 0U vertical mounting in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter with user-supplied hardware.

SKU: PDU1420T Category: Tag:
Category Attribute Details
General Information Product Name Tripp Lite series PDU Single Phase Basic Vertical 120V 2.4kw 14 5-15/20R 20A 0U
Product Model PDU1420T
Product Type PDU
Technical Information PDU Type Basic
Plug / Connector Type NEMA L5-20P
Receptacle Type NEMA 5-15/20R
Receptacle Detail 14 x NEMA 5-15/20R
Power Description Input Voltage 120 V AC
Output Voltage 120 V AC
Power Rating (Watt) 2400 W
Physical Characteristics Mounting Orientation Horizontal/Vertical
Mount Type Wall-mountable, Rack-mountable
Height 1.8″
Width 25.8″
Depth 2.3″
Miscellaneous Package Contents – PDU1420T 2.4kW Single-Phase 120V Basic PDU
– Mounting Hardware
– Owner’s Manual
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
