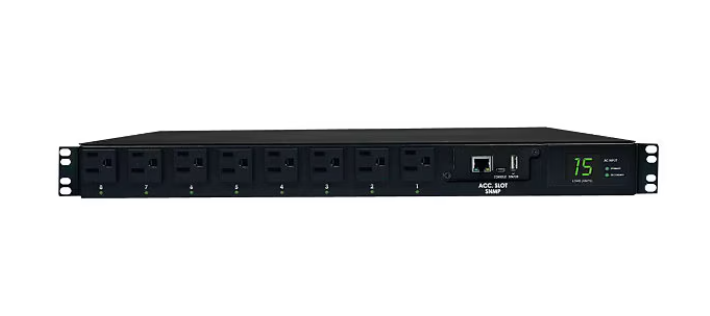

Eaton Tripp Lite Series PDU Switched ATS 120V 1.4kW 15A 5-15R 8 Outlet 2 5-15P 1URM – horizontal rackmount – power

Add to Wishlist

Quick tech specs

  • 1.4kW single-phase ATS/Switched PDU 120V w/ 8 Outlets and 2 12ft cords
  • 8 Outlets (NEMA 5-15R); 2 NEMA 5-15P inputs 12ft cords
  • Enables redundant A/B power option for single-corded network devices
  • PDU/ Power Distribution Unit/ PDU Strip/ Switched PDU/ rack pdu/ pdus/ datacenter pdu/ network pdu/ Vertical PDU/ ATS PDU
  • Separate primary/secondary inputs connect to any two compatible power source
  • Built-in network interface and two digital visual current meters

AED5,299.00

Add to Wishlist

Know your gear

Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. The built-in Java-free HTML5-based LX Platform interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP. Switched PDU features include individually controllable output receptacles. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED’s display primary or secondary power availability.
SKU: PDUMH15ATNET Category: Tag:
Category Specification
Overview
Brand Tripp Lite
Product Line Eaton Tripp Lite Series
Model PDU Switched ATS 120V 1.4kW 15A 5-15R 8 Outlet 2 5-15P 1URM
Edition Horizontal rackmount
Manufacturer Tripp Lite
Network & Communication
Remote Management HTTP, SNMP, Telnet
Remote Management Interface Ethernet 10/100
Expansion Slots
Expansion Slots 1 (total) / 0 (free) x expansion slot
Connectivity
Input Connectors 2
Interface Provided – 1 x management – 6 pin mini-DIN (PS/2 style) – 1 x management – 8 pin mini-DIN – 1 x management – 9 pin D-Sub (DB-9) – 1 x management – RJ-45
Power
Emergency Power Off Automatic Transfer Switch (ATS), Current meter, LED indicators
Frequency 50/60 Hz
Frequency Provided 50/60 Hz
Input Connector Type Power NEMA 5-15
Max Input Current 15 A
Output Connector Quantity 8
Output Connector Type Power NEMA 5-15/20
Power Capacity 1800 volt-ampere per kilogram (Note: Likely a typo; may mean VA)
Power Output Connectors 8 x power NEMA 5-15/20
Power Provided 1.4 kilograms per millimetre (Note: Likely a typo; unclear unit)
Provided Voltage AC 120 V
Required Voltage AC 120 V
Technical Information
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 104°F
Min Operating Temperature 32°F
Operating Humidity 0 – 95%
Product Information
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items
Cables – Power cable – external – 12 ft – Power cable – integrated – 12 ft
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1 U
Weight 11.02 lbs
Width 17.5 inch
Depth 14.5 inch
Physical Characteristics
Color Black
Color Category Black
