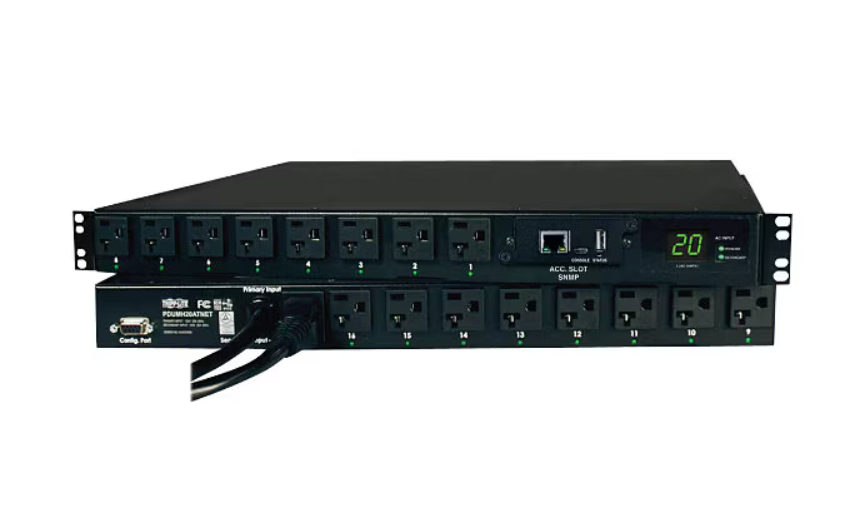

Eaton Tripp Lite Series PDU Switched ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal TAA – horizontal rackmount –

Add to Wishlist

Quick tech specs

  • 1.9kW single-phase ATS/Switched PDU 120V 1U Horizontal w/ 16 outlets and 12ft cords
  • Enables redundant A/B power option for single-corded network devices
  • 16 NEMA 5-15/20R outlets; 2 L5-20P/5-20P inputs 12ft cords
  • PDU/ Power Distribution Unit/ PDU Strip/ Switched PDU/ rack pdu/ pdus/ datacenter pdu/ network pdu/ Horizontal PDU

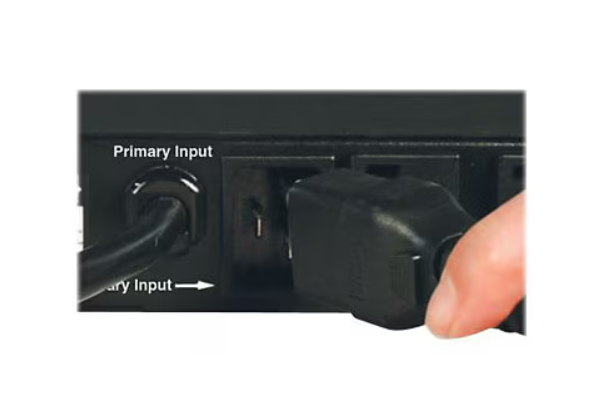

  • Separate primary/secondary inputs connect to any two compatible power sources

AED6,499.00

Add to Wishlist

Know your gear

Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED’s display primary or secondary power availability.
SKU: PDUMH20ATNET Category: Tag:
Category Attribute Value
Overview Brand Tripp Lite
Product Line Eaton Tripp Lite Series
Model PDU Switched ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal TAA
Edition Horizontal rackmount
Manufacturer Tripp Lite
Network & Communication Remote Management HTTP, SNMP, Telnet
Remote Management Interface Ethernet 10/100
Expansion Slots Expansion Slots 1 (total) / 0 (free) x expansion slot
Connectivity Input Connectors 2
Interface Provided 1 x management – 6 pin mini-DIN (PS/2 style), 1 x management – 8 pin mini-DIN, 1 x management – 9 pin D-Sub (DB-9), 1 x management – RJ-45

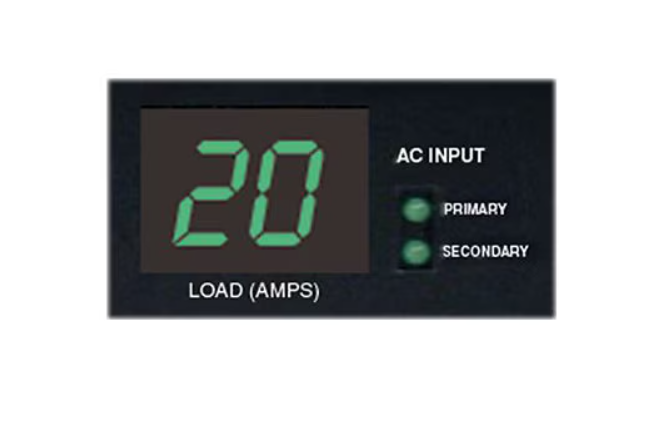

Power Emergency Power Off Automatic Transfer Switch (ATS), Current meter, LED indicators
Frequency 50/60 hertz
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA 5-20, Power NEMA L5-20
Max Input Current 20 ampere
Output Connector Quantity 16
Output Connector Type Power NEMA 5-15/20
Power Capacity 2400 volt ampere per kilogram
Power Output Connectors Details 16 x power NEMA 5-15/20
Power Provided 1.9 kilograms per millimetere
Provided Voltage AC 120 volt
Required Voltage AC 120 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 104 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 0 – 95%
Product Information Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items Cables 2 x power connector adapter – external, Power cable – external – 12 ft, Power cable – integrated – 12 ft
Dimensions & Weight Height 1.7 inch
Height (Rack Units) 1
Weight 12.13 lbs
Width 17.5 inch
Depth 14.5 inch
Physical Characteristics Color Black
Color Category Black
