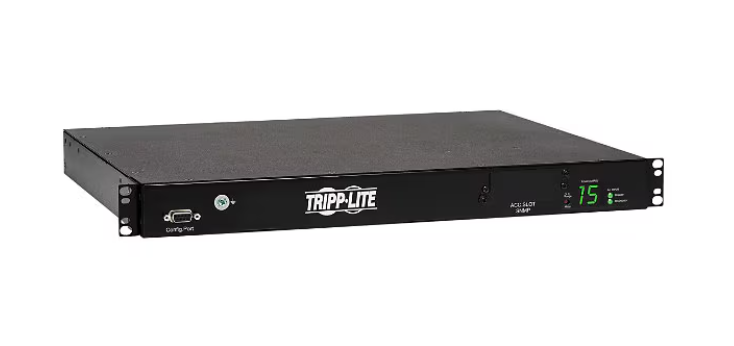

Eaton Tripp Lite Series PDU Switched ATS 2/2.4KW 200/240V 10 C13 2 C14 3.6M Cords 1URM – horizontal rackmount – power

Add to Wishlist

Quick tech specs

  • 2-2.4kW switched PDU provides remote power monitoring and enables redundant power for non-redundant single-corded network devices
  • Single-phase C14 input
  • Automatic transfer switching within 5ms
  • Ethernet network interface for remote outlet control
  • PDU/ Rackmount PDU/ RM PDU/ Switched PDU/ Power Distribution Unit/ ATS PDU

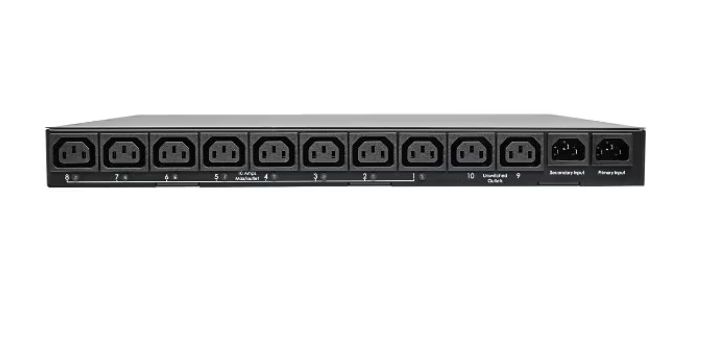

  • 8 switched/2 unswitched C13 outlets
  • Mounts in 1U of space in EIA-standard 19in racks
  • Digital load meter for real-time output current monitoring

AED6,999.00

Add to Wishlist

Know your gear

Recommended for data centers, server rooms and network closets, this 1U switched power distribution unit enables redundant A/B power for network devices with single power cords. Dual 12-foot (3.7-meter) input cords with C14 plugs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids. Plug-lock insert sleeves are included to prevent connected cords from becoming accidentally dislodged. The PDUMH15HVATNET constantly evaluates the power quality of both input sources and maintains continuous power to all outlets as derived from the primary source.
Dynamic solid-state automatic transfer switching (ATS) allows the IEC C13 PDU to switch to the secondary source within 2 – 5 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor prevents switching if the secondary source is unavailable or of lower quality than the primary source.
This switched power distribution unit distributes, monitors and manages selectable 200 – 240V power to equipment in network applications requiring individual outlet control, load shedding and remote monitoring of critical network components. Eight switched C13 outlets (two additional C13 outlets are unswitched) are subject to advanced network control and remote power monitoring, including the ability to turn on, turn off, reboot or lock out power to each outlet. Reducing the frequency of on-site visits can save you money and reduce downtime, thus lowering the PDU’s total cost of ownership.

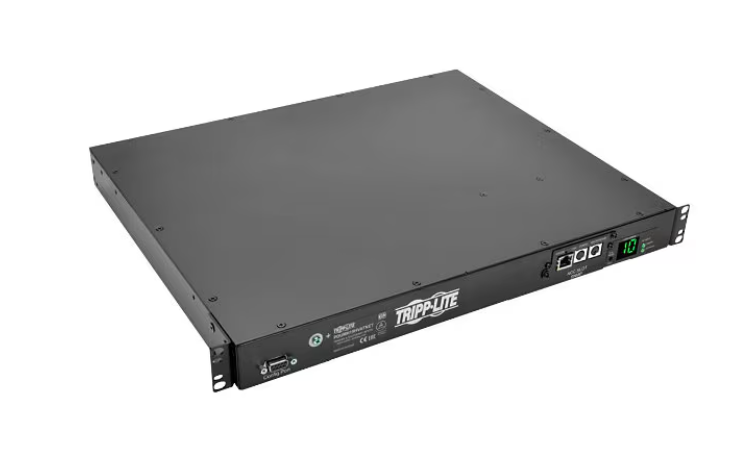

A front-panel digital load meter displays total PDU output current in amps. LEDs indicate on/off status of individual outlets and power status of primary and secondary inputs. An input-voltage select switch lets you toggle between high (220, 230 or 240V) or low (200 or 208V) voltage.
The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
The Auto Probe feature (Firmware 15.5.2 and greater) checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA).
This ATS PDU mounts in 1U of space in 19-inch rack or rack cabinet using the included brackets and hardware.
The PDUMH15HVATNET is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
SKU: PDUMH15HVATNET Category: Tag:
Overview
Specification Details
Brand Tripp Lite
Product Line Eaton Tripp Lite Series
Model PDU Switched ATS 2/2.4KW 200/240V 10 C13 2 C14 3.6M Cords 1URM
Edition Horizontal rackmount
Manufacturer Tripp Lite
Network & Communication
Specification Details
Remote Management HTTPS, SNMP, SNMP 1, SNMP 2, SSH, Telnet
Remote Management Interface Ethernet 10/100
Connectivity
Specification Details
Input Connectors 2
Interface Provided 1 x management (Ethernet) – RJ-45
Power
Specification Details
Emergency Power Off Amp meter, Automatic Transfer Switch (ATS), LED indicators
Frequency 50/60 hertz
Frequency Provided 50/60 hertz
Input Connector Type Power IEC 60320 C14
Max Input Current 10 ampere
Output Connector Quantity 10
Output Connector Type Power IEC 60320 C13
Power Output Connectors Details 10 x power IEC 60320 C13
Power Provided 2.4 kilograms per millimetere
Provided Voltage AC 200/208/220/230/240 volt
Required Voltage AC 200/208/220/230/240 volt
Technical Information
Specification Details
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 104 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 0 – 95% (non-condensing)
Product Information
Specification Details
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices

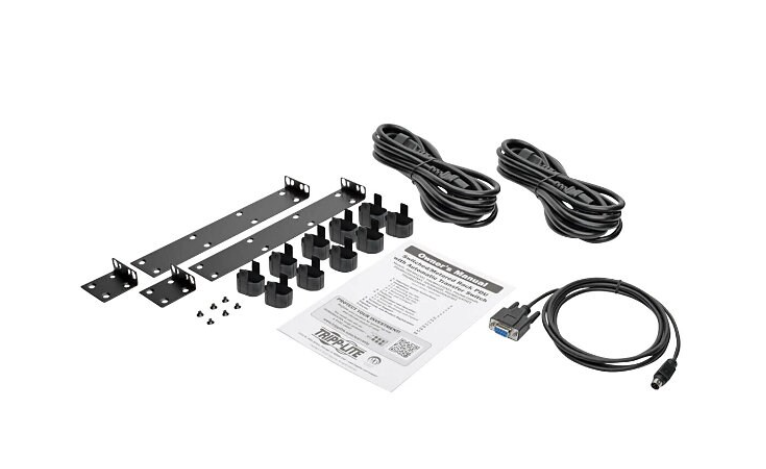

Included Items
Specification Details
Cables 2 x power cable – external – 12 ft
Dimensions & Weight
Specification Details
Height 1.7 inch
Height (Rack Units) 1
Rack Size 19″
Rack Size (metric) 48.3 cm
Weight 10.41 lbs
Width 17.3 inch
Depth 14.4 inch
