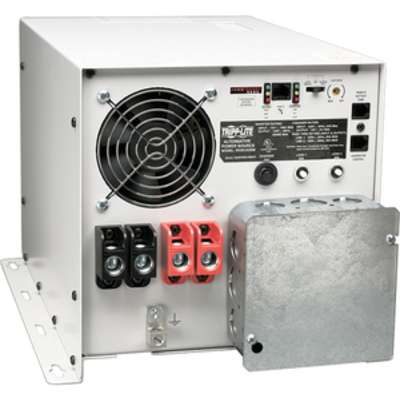

EATON Tripp Lite Series RV Inverter/Charger 3000W 12V DC/120V 35A/240A 120V Hardwire


  • 12V DC or 120V AC input; 120V AC output (hardwired)
  • 3000 watts continuous, 4500 watts OverPowerā„¢ and 6000 watts DoubleBoostā„¢ inverter output
  • 3 stage, 35/140 amp selectable wet/dry cell battery charger
  • Built-in IsobarĀ® premium AC surge protection and Auto Transfer Switching option for battery backup / UPS operation
  • Tested to power inverter standards UL458 (USA) and CSA (Canada)
  • High reliability large-transformer design with protected DC and AC wiring terminals

AED18,999.00

Tripp Lite’s RV3012OEM Inverter/Charger is the quiet alternative to gas generatorswith no fumes, fuel or noise to deal with! It provides equipment with utility- or generator-supplied AC electricity filtered through premium ISOBAR surge protection. This DC-to-AC inverter with automatic line-to-battery transer and integrated charging system serves as an extended run UPS, a standalone power source or an automative inverter suitable for rugged RV applications. Supplies up to 3000 watts of continuous 120V AC power from any 12V DC battery or automotive DC source. OverPower TM inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes and DoubleBoost TM inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, selectable 35/140 amp charging system. Includes optional dual-circuit hardwire AC input to enable full charger output from circuit 1 with a 120V 20A input and full AC pass-through from circuit 2 with a second 120V 20A input feed. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery

SKU: RV3012OEM Category: Tag:
Category Attribute Details
General Information Product Name Tripp Lite Series RV Inverter/Charger 3000W 12V DC/120V 35A/240A 120V Hardwire
Product Line PowerVerter
Product Series RV
Product Model RV3012OEM
Product Type Power Inverter
Technical Information Plug / Connector Type Terminal Block
Receptacles 2 x Hardwired
Power Description Input Voltage 12 V DC
Output Voltage 120 V AC, 12 V DC
Maximum Frequency 60 Hz
Peak Power Load 6000 W
Continuous Power Load 3000 W
Waveform Type Pulse-width Modulated Sine Wave
Physical Characteristics Height 9.8″
Width 11.5″
Depth 16.8″
