Eaton Universal-Input Managed PDU G4, 208V and 415/240V, 24 Outlets, Input Cable Sold Separately, 0U Vertical

17 Removable Power Cables with 15 Different Plugs Support Universal Input
This universal-input PDU (UPDU) G4 is designed to meet your most diverse rack-power needs Fully managed with 24 outlets and sophisticated management capabilities – the EVMAGU23A-E accommodates power needs ranging from 5kVA single-phase to 23kVA three-phase Pair the UPDU with one of 17 removable power cables with 15 different plug options (all sold separately) By delivering a broad range of power options – this UPDU alleviates the cost and complexity of mixing and matching different PDUs for different installations It also ensures you won’t outgrow your PDU as your power needs evolve
Market-Leading Cybersecurity Ensures Your Data Is Kept Safe
Chain-of-trust encryption and secure firmware boot capability prevent the EVMAGU23A-E UPDU from being a cyberattack vulnerability point on a network An embedded – hot-swappable gigabit network module (GNM) offers enhanced management and cybersecurity – including zero-trust architecture and zero-touch provisioning The EVMAGU23A-E is compatible with select Eaton Brightlayer Data Centers suite software solutions that enable extensive automation and remote management to shorten response times to power issues and ensure timely updates for stronger cybersecurity
Remote Management Saves Time and Money
The GNM with multi-color screen supports performance management software for real-time reports – trend charts – dashboards and alerts that are prioritized by severity – as well as remote troubleshooting and automated responses during power events The EVMAGU23A-E is compatible with optional environmental sensors (sold separately) that provide alerts about temperature – humidity and dry-contact device connections
24 Outlets Give You Plenty of Power Options

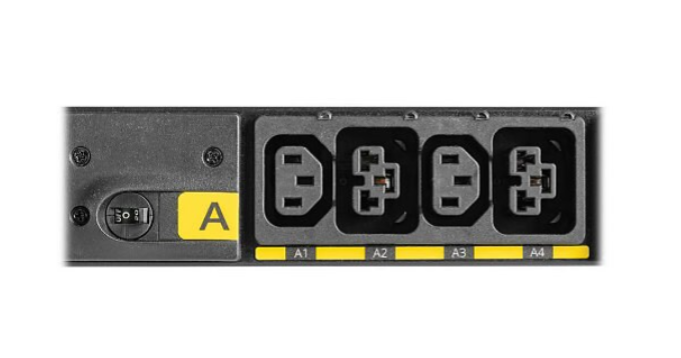

The EVMAGU23A-E rack PDU (rPDU) features 12 C13 outlets – which accept C14 connectors – and 12 high-retention C39 combo outlets – which accept both C14 and C20 connectors – adding flexibility to deployments and reducing the quantity of PDUs you will need to purchase and install
Outlet-Level Control Boosts Performance and Efficiency
All 24 outlets provide metering – monitoring and switching for granular power data and precision control of power delivery The outlets are evenly distributed into six color-coded load banks – each with its own circuit breaker – to improve load balancing and organize connections in a crowded rack
Convenient Box-to-Rack Installation
This UPDU G4 features toolless mounting buttons that allow front- or side-facing rack installation – depending on your rack’s layout and your power needs Choose from a collection of 17 power cables and 15 plug options (all power cables sold separately) Low-profile circuit breakers are flush with the lightweight aluminum chassis – and the narrow two-inch width saves space within the rack for revenue-generating equipment You can cascade up to 40 EVMAGU23A-E models with each model maintaining its own individual IP address from a single network connection point
