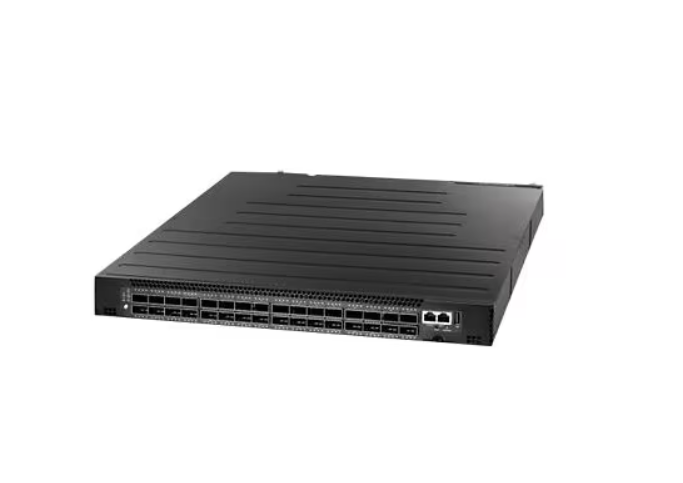

Edge-Core AS7712-32X – switch – 32 ports – managed – rack-mountable
Quick tech specs
- 32X
- L3
- 32 x 100 Gigabit QSFP28
- desktop, rack-mountable
- Switch
- managed
- front to back airflow
AED79,999.00
Know your gear
The Edge-Core AS7712-32X switch is top-of-rack or spine switch for high-performance data centers. In a compact 1RU form factor, the switch provides line-rate L2 and L3 switching across the 32x QSFP28 ports, supporting up to 32 x 40/100 GbE, 64 x 50 GbE, or 128 x 10/25 GbE connections. The AS7712-32X can be deployed as a TOR switch supporting 10/25/50 GbE to servers with 40/50/100 GbE uplinks, or as a spine switch supporting 40/50/100 GbE spine interconnects. This open network switch is loaded with the Open Network Install Environment (ONIE) which supports the installation of compatible Network Operating System software, including the open source options Open Network Linux and OpenSwitch, plus commercial NOS offerings.
| Category | Specification |
|---|
| Overview |
| Brand | Edge-Core |
| Product Line | Edge-Core |
| Model | AS7712-32X |
| Manufacturer | Edge Core |
| Processor |
| Clock Speed | 2.4 GHz |
| Processor Brand | Intel |
| Processor Number | Atom C2538 |
| Processors Installed | 1 |
| Memory |
| Flash Memory Installed | 32 GB |
| Memory Technology | DDR3 SDRAM |
| RAM Installed | 16 GB |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Features | 16MB packet buffer, 5+1 redundant fans, Full duplex mode, Layer 2 switching, Layer 3 switching |
| Form Factor (Hubs & Switches) | Desktop, Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 136K entries |
| Manageable | Yes |
| Ports | 32 |
| Product Type | Switch |
| Status Indicators | Link/activity, Port status |
| Subcategory | Network hubs and switches |
| Switching Type | 100 Gigabit Ethernet |
| Connectivity |
| Interface Provided | 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 1 x USB Type A, 32 x 100Gbit/40Gbit LAN QSFP28 |
| Port Quantity | 32 |
| Port Type | 100 Gigabit QSFP28 |
| Power |
| Hot-Plug | Hot-plug |
| Power Consumption Operational | 350 watt |
| Power Supplies Installed | 2 |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Yes |
| Redundant Power Supply Supported | 1+1 |
| Software |
| Software Type | Open Network Install Environment |
| Technical Information |
| Form Factor (RAM) | SO-DIMM 204-pin |
| Max Operating Temperature | 113 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Operating Humidity | 5 – 95% (non-condensing) |
| Product Information |
| Airflow Direction | Front to back airflow |
| Capacity | Host table entries (IPv4): 72000, Host table entries (IPv6): 36000, VLAN IDs: 4000 |
| Country | North America |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Forwarding performance: 4.7 Bpps, Switching capacity: 3.2 Tbps |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1U |
| Weight | 22.05 lbs |
| Width | 17.2 inch |
| Depth | 20.3 inch |
| Physical Characteristics |
| Color Category | Black |
