Switches

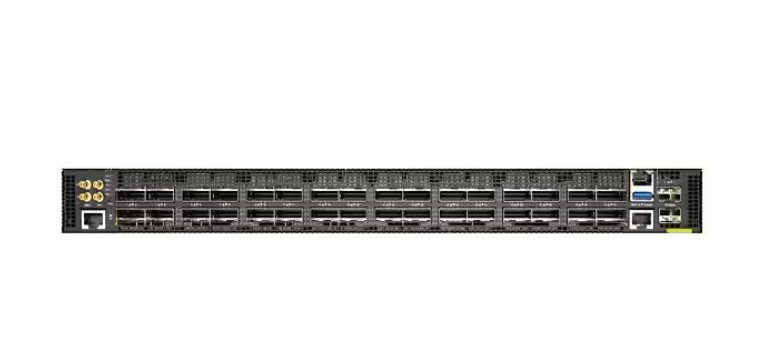

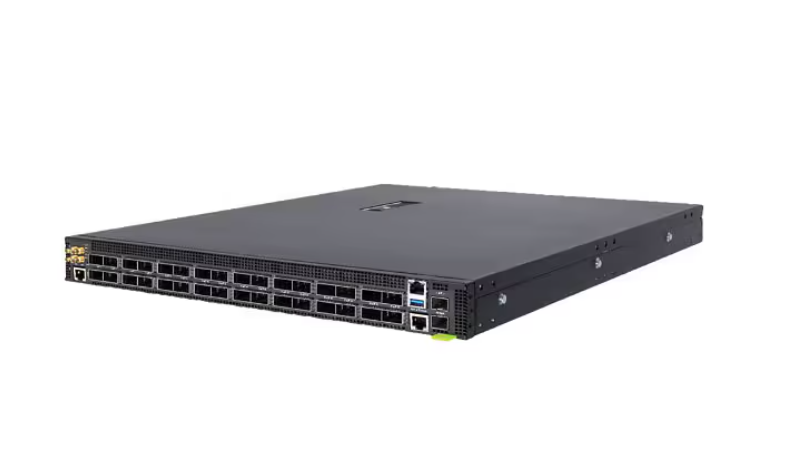

Edge-Core AS9716-32D – switch – 32 ports – managed – rack-mountable
Quick tech specs
- 32D
- L3
- 32 x 400 Gigabit QSFP-DD
- rack-mountable
- Switch
- managed
- front to back airflow
AED164,999.00
Know your gear
The Edge-Core AS9716-32D is a spine switch for high-performance data centers. The switch provides line-rate L2 and L3 switching across the QSFP-DD ports.
| Category | Details |
|---|
| Overview |
| Brand | Edge-Core |
| Product Line | Edge-Core |
| Model | AS9716-32D |
| Manufacturer | Edge Core |
| Processor |
| Clock Speed | 2.4 GHz |
| Processor Brand | Intel |
| Processor Number | D-1518 |
| Processor Type | Xeon |
| Processors Installed | 1 |
| Memory |
| Flash Memory Installed | 256 MB |
| Memory Technology | DDR4 SDRAM |
| RAM Installed | 16 GB |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Features | 5+1 redundant fans, 64MB packet buffer, Layer 2/3 switching, Reset button |
| Form Factor | Rack-mountable |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8K entries |
| Manageable | Yes |
| Ports | 32 |
| Product Type | Switch |
| Status Indicators | Active, Diagnostic, Fan, Power, Speed |
| Subcategory | Network hubs and switches |
| Switching Type | 400 Gigabit Ethernet |
| Connectivity |
| Interface Provided | 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 32 x 400 Gbit LAN QSFP-DD |
| Port Quantity | 32 |
| Port Type | 400 Gigabit QSFP-DD |
| Power |
| Frequency | 50/60 Hz |
| Hot-Plug | Hot-plug |
| Power Provided | 1300 watt |
| Power Supplies Installed | 2 |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Yes |
| Redundant Power Supply Supported | 1+1 |
| Software |
| Software Type | Open Network Install Environment |
| Technical Information |
| Built-in Devices | 32 GB SSD |
| Form Factor (RAM) | SO-DIMM 260-pin |
| Max Operating Temperature | 113°F |
| Min Operating Temperature | 32°F |
| Operating Humidity | 5 – 95% (non-condensing) |
| Product Information |
| Airflow Direction | Front to back airflow |
| Capacity | VLAN IDs: 4000 |
| Country | North America |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Forwarding rate: 19 Bpps, Switching capacity: 25.6 Tbps (full duplex) |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1U |
| Weight | 24.38 lbs |
| Width | 17.3 inch |
| Depth | 21.1 inch |
| Physical Characteristics |
| Color Category | Black |
| Certifications & Listings |
| Compliant Standards | AS/NZS CISPR 32, CB, CCC, CISPR 24, CISPR 32, CISPR 35, EMI, EN 55032, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 62368, EN55024, FCC CFR47 Part 15 B Class A, GR-63-CORE, RoHS 2, UL 60950, UL 62368, VCCI Class A, WEEE 2002/96/EC |
There are no reviews yet.
