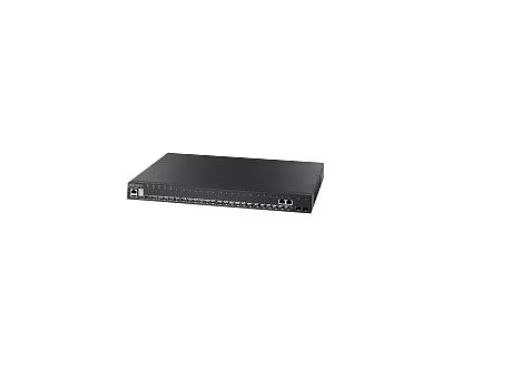

Edge-Core ECS4620-28F – switch – 28 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 28F
  • L3
  • 22 x Gigabit SFP + 2 x combo 1000Base-T + 2 x 10 Gigabit SFP+
  • Switch
  • managed
  • desktop, rack-mountable

AED9,999.00

Add to Wishlist

Know your gear

The Edge-Core ECS4620 series is a compact but high-performance Gigabit Ethernet Layer 3 switch featuring 28 ports; with 24 10/100/1000Base-T ports, 2 10G SFP+ ports, and one 10G dual port expansion slot. The switch is ideal for high-performance server aggregations, such as enterprise data center, where it can connect high-end or network-attached files servers over fiber ports.
SKU: ECS4620-28F Category: Tag:
Category Details
Overview
Brand Edge-Core
Product Line Edge-Core
Model ECS4620-28F
Manufacturer SMC
Memory
Flash Memory Installed 128 megabyte
RAM Installed 256 megabyte
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 802.1x authentication, Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BOOTP support, Bridge protocol data unit (BPDU), Broadcast Storm Control, Cable Diagnostics Function, Class of Service (CoS), DHCP relay, DHCP server, DHCP snooping, DHCP support, DiffServ Code Point (DSCP) support, DiffServ support, Digital Diagnostics Monitoring Interface (DDMI), DNS proxy, DoS attack prevention, Dynamic ARP Inspection (DAI), Dynamic VLAN Support (GVRP), Ethernet Ring Protection Switching (ERPS), Event log, Firmware upgradable, Flow control, Full duplex mode, GARP VLAN Registration Protocol (GVRP), Half duplex mode, IGMP filtering, IGMP proxy, IGMP snooping, IGMP throttling, IPv4 support, IPv6 support, Jumbo Frames support, LLDP support, MAC address filtering, Management Information Base (MIB), Multicast Storm Control, Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, NTP server, Packet filtering, Port isolation, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Routing, sFlow, SNTP support, Spanning Tree Protocol (STP) support, STP Root Guard, Syslog support, Traffic Control, Trunking, Tunneling, Uni-Directional Link Detection (UDLD), VLAN support, VLAN Trunking Protocol (VTP), Weighted Round Robin (WRR) queuing
Form Factor (Hubs & Switches) Desktop, Rack-mountable
Jumbo Frame Support 10KB
MAC Address Table Size 16K entries
Manageable Yes
Ports 28
Product Type Switch
Remote Management CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet
Routing Protocol BGP, BGP-4+, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, OSPF, OSPFv3, PIM-DM, PIM-DMv6, PIM-SM, PIM-SMv6, RIP-1, RIP-2, Static IPv6 routing, VRRP
Stackable Stackable
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
Expansion Slots 2 (total) / 2 (free) x expansion slot
QSFP Slots 10 Gigabit SFP+
Connectivity
Interface Provided 1 x console RJ-45, 2 x 1000Base-T RJ-45, 2 x 10Gbit LAN SFP+, 24 x Gigabit LAN SFP
Port Quantity 22
Port Type Gigabit SFP
Ports Type (2nd) Combo 1000Base-T
Power
Frequency 50/60 hertz
Power Consumption Operational 42 watt
Technical Information
Encryption SSL
Max Operating Temperature 113 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 10 – 90% (non-condensing)
Product Information
Authentication Method RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding performance: 95.23 Mpps, Switching capacity: 128 Gbps
Ports (2nd) Quantity 2
Ports (3rd) Quantity 2
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 8.38 lbs
Width 17.3 inch
Depth 12.4 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards CB, FCC Class A certified, RoHS, UL, WEEE
TCO Certified No
