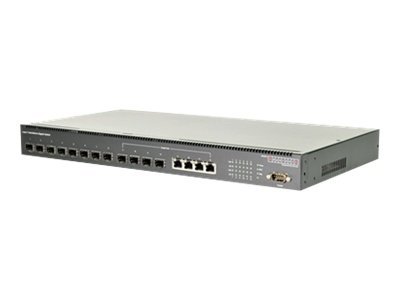

Edge-Core ES4612 – switch – 12 ports – managed – rack-mountable

Add to Wishlist
Edge-Core ES4612 – Switch – L3 – managed – 8 x SFP + 4 x combo Gigabit SFP – rack-mountable

6,799.00 د.إ

Add to Wishlist

The ES4612 is a 12 port gigabit Ethernet switch, ideal to be implemented in the distribution layer of three-tier networks, which provides long distance fiber connections to aggregate access layer switches in different locations.

SKU: ES4612 Category: Tag:
Device Type Switch – 12 ports – L3 – managed
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 8 x SFP + 4 x combo Gigabit SFP
Performance Switching capacity: 24 Gbps
MAC Address Table Size 15K entries
Jumbo Frame Support Yes
Routing Protocol OSPF, RIP-1, RIP-2, IGMP, DVMRP, VRRP, PIM-DM, OSPFv3
Remote Management Protocol SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features Flow control, DHCP support, auto-negotiation, BOOTP support, ARP support, trunking, VLAN support, IGMP snooping, Syslog support, traffic shaping, port mirroring, E-mail alert, store and forward, MAC address filtering, Broadcast Storm Control, half duplex mode, full duplex mode, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, DNS server, DHCP relay, Link Aggregation Control Protocol (LACP), NTP server, TFTP server
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1s
Status Indicators Power, link OK, link/activity
Expansion / Connectivity Interfaces: 4 x 1000Base-T RJ-45, 1 x RS-232C management, 12 x SFP (mini-GBIC)
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 80 Watt
Features Redundant Power System (RPS) connector
Compliant Standards FCC Class A certified, TUV, GS, VCCI Class A ITE, CB
Dimensions & Weight Width: 17.3 in, Depth: 9 in, Height: 1.7 in, Weight: 7.05 lbs
Environmental Parameters Min Operating Temperature: 32 °F, Max Operating Temperature: 104 °F, Humidity Range Operating: 10 – 90%
