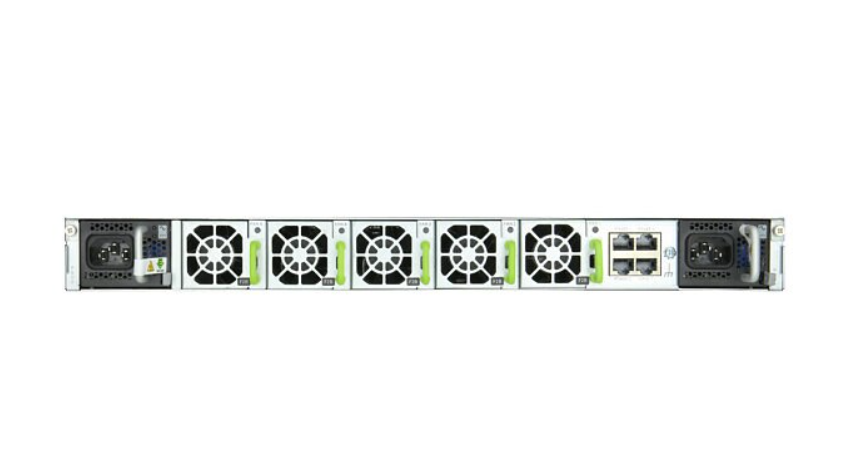

Edge-Core Wedge 100BF-32X – switch – 32 ports – managed – rack-mountable
Quick tech specs
- Ports: 32
- 100GbE
AED59,099.00
Know your gear
The SMC Networks Switch features a host of features that can be used to create a high-speed network. It is easy to setup and ease.
| Category | Specification |
|---|
| Overview |
| Brand | Edge-Core |
| Product Line | Edge-Core Wedge |
| Model | 100BF-32X |
| Manufacturer | SMC |
| Processor |
| Processor Brand | Intel |
| Processor Type | Pentium D |
| Processors Installed | 1 |
| Memory |
| Flash Memory Installed | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Features | Full duplex mode |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| Manageable | Yes |
| Ports | 32 |
| Product Type | Switch |
| Status Indicators | Active, Console, Data rate, Diagnostic, Fan, Link/activity, PSU |
| Subcategory | Network hubs and switches |
| Switching Type | 100 Gigabit Ethernet |
| Connectivity |
| Interface Provided | 1 x management (Gigabit LAN) RJ-45, 1 x management (RS-232) RJ-45, 1 x USB Type A, 32 x 100Gbit LAN QSFP28 |
| Port Quantity | 32 |
| Port Type | 100 Gigabit QSFP28 |
| Power |
| Hot-Plug | Hot-plug |
| Power Supplies Installed | 2 |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Yes |
| Software |
| Software Type | Open Network Install Environment |
| Technical Information |
| Built-in Devices | 32 GB SSD |
| Form Factor (RAM) | SO-DIMM 260-pin |
| Max Operating Temperature | 104 °F |
| Max Storage Temperature | 158 °F |
| Min Operating Temperature | 32 °F |
| Min Storage Temperature | -40 °F |
| Operating Humidity | 0 – 95% (non-condensing) |
| Product Information |
| Airflow Direction | Front to back airflow |
| Country | United States |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Forwarding rate: 4.7 Bpps, Switching capacity: 3.2 Tbps |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Weight | 22.06 lbs |
| Width | 17.3 inch |
| Depth | 20 inch |
| Physical Characteristics |
| Color Category | Silver |
| Certifications & Listings |
| Compliant Standards | CSA, EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN61000-3-11, EN61000-3-12, FCC Part 15 B Class A, IEC 68-2-14, IEC 68-2-29, IEC 68-2-36, IEC 68-2-6, ISTA 2A, RoHS, UL |
| ENERGY STAR Certified | No |
