Electro-Voice RE3-RE420 Wireless Handheld Microphone System with RE420 Wireless Mic (6M: 653 to 663 MHz)

Add to Wishlist

3,799.00 د.إ

Add to Wishlist
Key Features
  • For Singers, Speakers & Presenters
  • Rack-Mountable Diversity Receiver
  • Wireless Handheld Mic Transmitter
  • RE420 Cardioid Condenser Mic Head
  • Full Vocal Tone & Reduced Ambience
  • Control Transmitter via Receiver
  • 8-Hour Operating Time via AA Batteries
  • Informative Backlit LCD Screens
  • Transmitter Battery Status on Receiver
  • Selectable 10 or 20mW RF Output Power

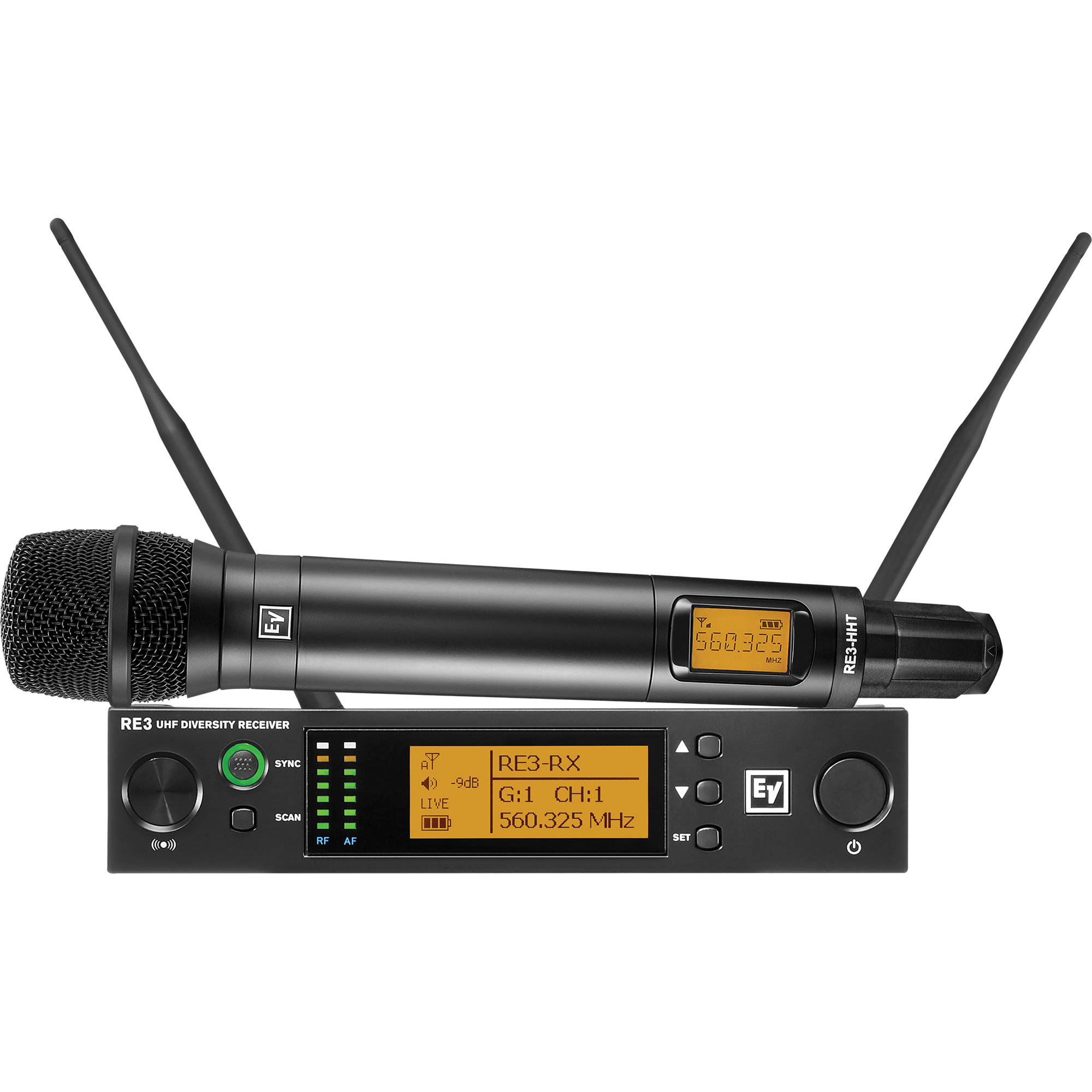

Electro-Voice RE3-RE420 Overview

Achieve solid performance, dependability, and clear voice reproduction with the Electro-Voice RE3-RE420 (Band 6M: 653 to 663 MHz) UHF wireless handheld microphone system. Comprised of a rack-mountable diversity receiver and one handheld wireless transmitter with an RE420 cardioid condenser microphone capsule, this wireless set is well suited for singers, speakers, and presenters in clubs, concert venues, houses of worship, and conference rooms. The RE420 delivers full-bodied vocal tone, reduced ambience, and increased feedback rejection. Thanks to simple operation and the ability to control the transmitter from the receiver, the RE3-RE420 minimizes setup time and maximizes workflow efficiency.

Two included AA batteries provide up to eight hours of operating time for the transmitter, which offers adjustable sensitivity and RF output power to optimize your gain structure and avoid clipping. Backlit LCD screens display crucial information such as transmitter battery status, frequency, KeyLock mode, and mute status. Easily sync, scan, and control this wireless system via its dedicated buttons and straightforward menu navigation.

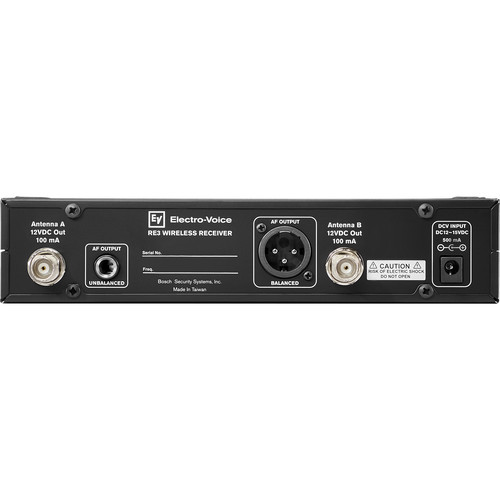

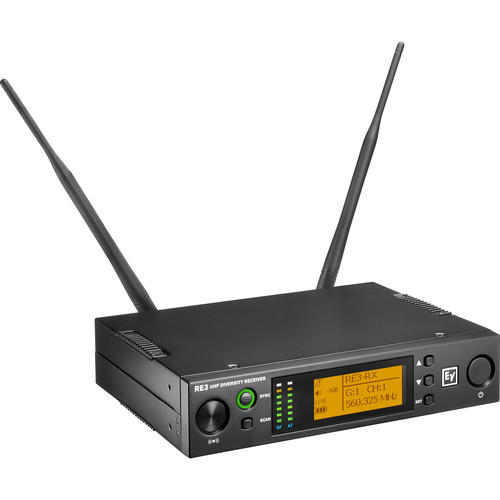

Electro-Voice RE3-RX6M Diversity Wireless Receiver (653 to 663 MHz)

The RE3-RX6M Diversity Wireless Receiver from Electro-Voice is a UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR outputs, and unbalanced 1/4″ TRS outputs. It can be used when paired with any RE3 HHT handheld capsule or bodypack transmitter and microphone (sold separately) to deliver rock-solid system performance for presentation or interview audio applications.

The RE3-RX is rack-mountable, and the 1/2 space diversity receiver is designed to function as the control center for your wireless setup. Using clear frequency scan and sync functions, the receiver offers control settings that synchronize to a mated transmitter. Diversity reception technology minimizes the chance of signal dropouts and provides two different antenna locations. The antennas switch moment by moment based on signal strength and stability, which insures solid performance.

Additionally, the easy-to-read LCD display provides vivid viewing of all menus and operating parameters.

UPC: 800549895262

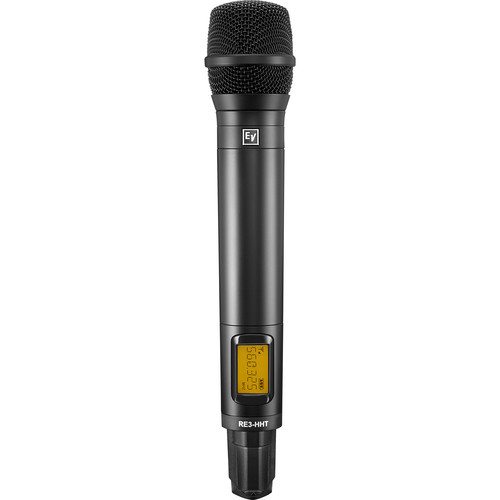

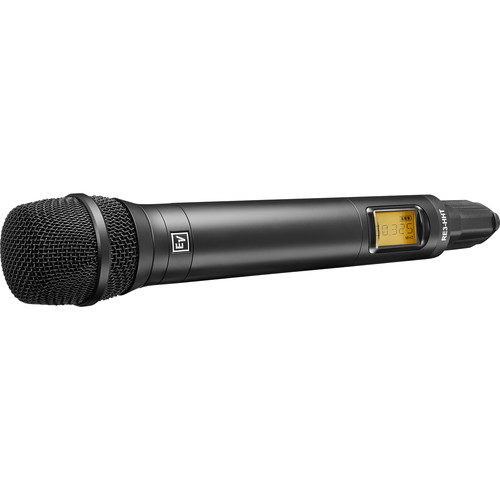

Electro-Voice RE3-HHT4206M UHF Wireless Transmitter with RE420 Condenser Cardioid Capsule (653 to 663 Mhz)

The RE3-HHT4206M UHF Wireless Transmitter with RE420 Condenser Cardioid Capsule from Electro-Voice is a lightweight, yet robust UHF handheld transmitter body with a condenser cardioid microphone head for vocal performance and presentations. It can be used when paired with the RE3-RX diversity receiver (sold separately) to capture audio for all-around voice applications.

The handheld transmitter setup is quick and simple using the RE3 clear frequency scan and sync functions. It features 400 selectable frequencies, switchable low- and high-output power, and up to 10 MHz tuning bandwidth. Additionally, recharging contacts provide for functional use with the optional BC2 charging station (sold separately) allowing the NiMH rechargeable cells to be charged without removal from the transmitter.

SKU: F.01U.354.216 Category: Tag:

Electro-Voice RE3-RX6M Diversity Wireless Receiver (653 To 663 MHz) Specs

System
Wireless Transmission Digital UHF
Number of RF Channels 400
Diversity Antenna Diversity
RF Frequency Band 653 to 663 MHz
RF Bandwidth Up to 10 MHz
Modulation Wideband FM
Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/2 Wave External, Detachable (Rear-Mount)
Antenna Bias Voltage 12 to 15 VDC
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4″ TS Male Unbalanced Line Output
Frequency Response 51 Hz to 16 kHz (Dependent on Mic)
Approximate RF Sensitivity 81 dBm
RF Output Power Up to 20 mW (Max)
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 to 15 VDC (Included)
Display & Indicators Backlit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power)
Housing Metal
Dimensions 8.2 x 1.9 x 6.1″ / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware)

Electro-Voice RE3-HHT4206M UHF Wireless Transmitter With RE420 Condenser Cardioid Capsule (653 To 663 Mhz) Specs

System
Wireless Transmission Analog UHF
RF Frequency Band 653 to 663 MHz
RF Bandwidth Up to 10 MHz
Encryption Yes
Modulation Wideband FM
Transmitter 1
Transmitter
Form Factor Handheld
RF Output Power 10 mW (20 mW Peak, Switchable)
Audio I/O None
Muting Mute Switch
Frequency Response 40 Hz to 20 kHz (Dependent on Mic)
Sync Method IR
Power Requirements Battery
Battery Type 2 x AA (Included, Replaceable)
Display & Indicators LCD (Channel, Group, Mute, Power, RF Output Power)
Housing Metal
Dimensions 1.4 x 7.5″ / 3.6 x 19.1 cm
Weight 12.2 oz / 345.9 g (without Capsule)
Microphone
Form Factor Handheld Capsule
Sound Field Mono
Capsule Condenser
Polar Pattern Cardioid
Frequency Range 50 Hz to 20 kHz
SNR Cardioid: 72 dB
Equivalent Noise Level Cardioid: 22 dB A-Weighted
Maximum SPL 137 dB SPL Peak
Sensitivity 5.6 mV/Pa at 1 kHz
Operating Voltage 4 to 8 V
Length 3.3″ / 8.38 cm
Diameter 2.0″ / 50.80 mm
