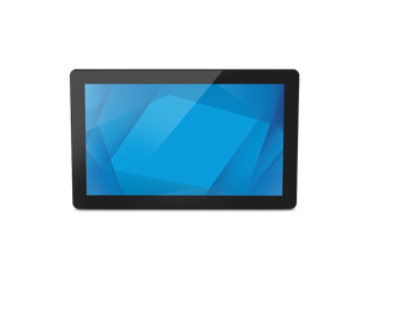

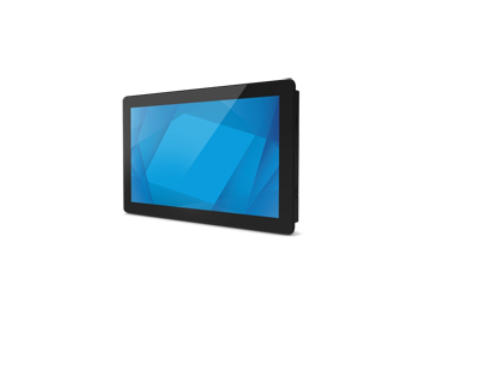

Elo 1594L Commercial 15.6 Inch Wide PCAP LCD/LED Open Frame Touchscreen Display Monitor for Digital Signage – Black

Add to Wishlist
  • Commercial Grade
  • Integrated Touch
  • Video Interfaces: HDMI, VGA & Display Port
  • Elo’s TouchPro PCAP offers:
    – 2GS (two glass solution) with pristine optical clarity and touch durability
    – 10 touch with thru-glass capabilities that passes UL-60950 & IK-07 impact testing

AED3,099.00

Add to Wishlist

HDMI, VGA and Display Port

The EloĀ 1594LĀ is a 15.6-inch FHD open-frame LCD touchscreen display that delivers an industrial-grade solution while being cost-effective for OEMs and systems integrators that require a reliable product for their customers. Designed with reliability from the start, Elo’s open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

The Elo 1594L features a sleek, compact design via Elo’s industry-leading TouchPro PCAP technology. It seamlessly integrates stable performance, crystal-clear image quality, and optimal light transmission for precise touch interactions. With its captivating display,Ā the Elo 1594L is well suited for integration into self-service and HMI applications in retail stores, restaurants, gaming and casinos, amusement parks, industrial automation and more.

Touch Thru Glass
TouchProĀ® PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness’s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments.

Applications:
– Self-Service
– Gaming
– Healthcare
– Industrial Automation

  • Features:

    • Commercial Grade
    • Integrated Touch
    • Video Interfaces: HDMI, VGA & Display Port
    • Elo’s TouchPro PCAP offers:
      – 2GS (two glass solution) with pristine optical clarity and touch durability
      – 10 touch with thru-glass capabilities that passes UL-60950 & IK-07 impact testing
    • Compatible with the Elo Backpack – a low-power, solid-state, fan-less computing solution
SKU: 1594L Category: Tag:

  • Specifications:

    • Enclosure Color:Ā Black
    • Touch Technology & Capacity:Ā PCAP (TouchProĀ® Projected Capacitive) – 10 Touch
    • Touch Interface:Ā USB 2.0
    • Diagonal Size:Ā 15.6″ diagonal, Active matrix TFT LCD (LED)
    • On Screen Display:Ā Accessible through switches on the unit’s tethered OSD Control box
    • Controls:Ā Menu, Up, Down, Select, Power
    • Settings:Ā Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru
    • Languages:Ā English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
    • Lockouts:Ā OSD, Power
    • Aspect Ratio:Ā 16:9
    • Active Area:Ā 13.55″ x 7.62″ (344.16mm x 193.59mm)
    • Resolutions:
      – 1920 x 1080
      – 640 x 480, 60Hz
      – 720 x 400, 70Hz
      – 800 x 500, 60Hz
      – 800 x 600, 56/60Hz
      – 1024 x 768, 60/75Hz
      – 1280 x 800, 60Hz
      – 1280 x 1024, 60Hz
      – 1366 x 768 60Hz, 60Hz RB
      – 1440 x 900 60Hz, 60Hz RB
      – 1680 x 1050 60Hz, 60Hz RB
      – 1920 x 1080, 50/60Hz
    • Viewing Angle:
      – Horizontal: Ā±89Ā° or 178Ā° total
      – Vertical: Ā±89Ā° or 178Ā° total
    • Number of Colors:Ā 16.7 million
    • Brightness (typical):
      – LCD panel: 350 nits
      – TouchPro PCAP: 315 nits
    • Response Time-Total (typical):Ā 25 msec
    • Contrast Ratio:Ā 800:1

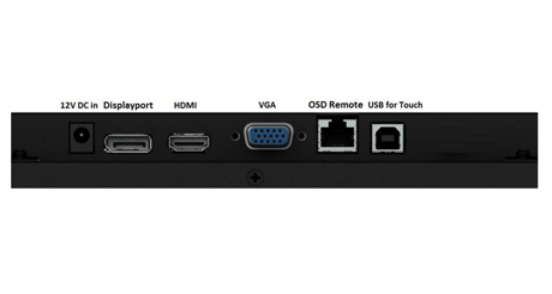

    • Input Video Format:
      – HDMI V1.3 Type A receptacle for HDMI input
      – Analog VGA on Female DB-15 connector
      – DisplayPort V1.1a – Supports later versions of Display Port video input
    • Input Video Frequency:
      – Horizontal: 30 – 82kHz
      – Vertical: 50 – 75Hz
    • Video Interface:Ā HDMI, VGA & Display Port
    • Power Supply:Ā External DC – Optional power brick (sold separately)
    • Input Power Connector (Monitor):Ā Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (Ā±0.3mm) barrel inner diameter, 8.8mm (Ā±0.3mm) barrel depth)
    • Input Voltage:Ā 12VDC Ā±5%
    • Adapter Output Power Connector:Ā DC barrel plug (2.1mm (Ā±0.1mm) pin inner diameter, 5.5mm (Ā±0.05mm) barrel outer diameter, 9.5mm (Ā±0.3mm) barrel length)
    • Power Consumption (Typical) Monitor + Adapter:
      – ON: 13.23 W
      – SLEEP: 0.48 W
      – OFF: 0.22W
    • Dimensions:Ā 15.5″ x 9.52″ x 1.71″ (394.7mm x 242.0mm x 43.4mm)
    • Shipping Box Dimensions:Ā 18.5″ x 13.03″ x 6.89″ (470mm x 331mm x 175mm)
    • Weight (Unpackaged):Ā 6.7lbs (3.02kg)
    • Weight (Packaged):Ā 10.2lbs (4.62kg)
    • Operating Temperature:Ā 32Ā°F – 104Ā°F (0Ā°C – 40Ā°C)
    • Storage Temperature:Ā -4Ā°F – 140Ā°F (-20Ā°C – 60Ā°C)
    • Humidity:
      – Operating: 20% – 80%
      – Storage: 10% – 95%
    • MTBF:Ā 50,000 hours demonstrated

  • Item Includes:

    • 1xĀ 1594L Monitor with power supply
    • 1xĀ Quick Install Guide
    • 1xĀ HDMI cable
    • 1xĀ EEI label
    • 1xĀ VGA cable
    • 1xĀ USB cable
    • 1xĀ Mounting brackets
    • 1xĀ OSD remote
