Network Adapters

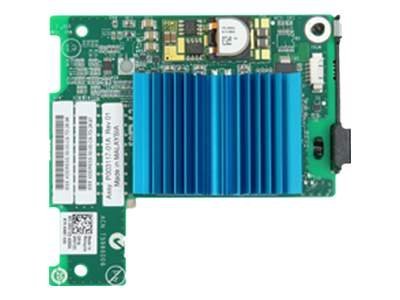

Emulex LPe1205-M HBA – host bus adapter – PCIe 2.0 – 8Gb Fibre Channel x 2
Emulex LPe1205-M HBA – Host bus adapter – PCIe 2.0 – 8Gb Fibre Channel x 2 – for PowerEdge M600, M605, M805, M905
AED2,999.00
The Emulex LPE1205-M Fiber-Channel card from Dell facilitates optimization of internal links for improved high-speed performance for your Server. Its LightPulse Virtual HBA technology provides efficient host utilization and compliance. With comprehensive virtualization capabilities, it supports N-Port ID Virtualization (NPIV) and virtual fabric.
| General |
|---|
| Device Type | Host bus adapter |
| Interface (Bus) Type | PCI Express 2.0 |
| Networking |
| Ports | 8Gb Fibre Channel x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Fiber optic |
| Data Link Protocol | 2Gb Fibre Channel, 4Gb Fibre Channel, 8Gb Fibre Channel |
| Fibre Channel | FC-AL-2, FC-FLA, FC-FS, FC-GS-4, FC-PH-3, FC-PLDA, FC-Tape, FC-SP, FCP-2, FC-PI-2 |
| Data Transfer Rate | 8.5 Gbps |
| Features | Manageable, LightPulse |
| Expansion / Connectivity |
| Interfaces | 2 x network – 8Gb Fibre Channel |
| Compatible Slots | 1 x PCI Express 2.0 |
| Miscellaneous | Compliant Standards: UL, TUV, C-Tick, VCCI Class A ITE, EN55024, EN55022 Class A, EMC, ICES-003 Class A, RoHS, UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, FCC Part 15 A, MIC Class A |
| Power |
| Power Consumption Operational | 6.8 Watt |
| Software / System Requirements | OS Required: Red Hat Linux, SuSe Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 – 95% |
| Compatibility Information | Designed For: Dell PowerEdge M600, M605, M805, M905 |
