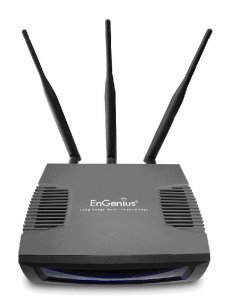

ECB9500 is a powerful and multi-functional 802.11n wireless device with 7 operation modes, designed to operate in different kinds of business environments.
ECB9500 is a Wireless N device that delivers up to 6x faster speeds and 7x extended coverage than normal-power 802.11g devices. ECB9500 provides your network with superior throughput, performance and unparalleled wireless range. With user-friendly WPS function, it helps users to connect to the ECB9500 simply with a one-push button.
To protect wireless data transmissions, ECB9500 encrypts all wireless through WPA2/WPA/WEP wireless encryption. ECB9500 also supports IEEE 802.1x Supplicant function in Client Bridge mode. Its MAC Address Filter allows user to select or deny stations with access to the wireless network. In addition, user isolation function protects private network between client users. ECB9500 thus is the best device to ensure wireless performance for enterprises.
BASIC INFO
User Type | Business |
Technology | Gigabit ⢠Wireless N |
Application | Indoor |
Model Number | ECB9500 |
KEY DIFFERENTIATORS:
WIRELESS N MULTI-FUNCTIONAL DEVICE
Offers multi operation modes for different network topologies
7 Modes: Access Point/Client Bridge/Repeater/Router/Client Router/WDSĀ
Flexible solution for various wireless applications
MULTIPLE WIRELESS NAMES (AP MODE)
Broadcasts multiple SSID’s in one device
Permits different levels of network access (VLAN Tagging)
GIGABIT ETHERNET PORT
Optimized for up to 10X faster data transfer than Fast Ethernet
Ideal for large data streaming like online gaming, VoIP, video multimedia applications
HIGH GAIN DETACHABLE MULTI-ANTENNA DESIGN
Three 5dBi MIMO antennas for wider wireless coverage
Upgradeable antennas to increase range and receive sensitivity
POWER-OVER-ETHERNET (802.3af) CAPABLE
Power and data over one single cable for convenient installation
INTELLIGENT QUALITY OF SERVICE (QOS) TECHNOLOGY
Facilitates bandwidth priority for VoIP, video streaming, online gaming
HARDWARE SPECIFICATIONS:
MCU: RT2880, 266MHz
Memory: 32MB SDRAM
Flash: 8MB
Physical Interface:
LAN One 10/100/1000 GigabitĀ Ethernet
Reset Button
Power Jack
WPS Push Button (Wi-Fi Protected Setup)
LEDās Status:
Power (Status)
LAN (10/100/1000Mbps)
WLAN (Wireless Connection)
Power Requirements:
Power Supply: 90 to 240VDC ± 10% 50/60Hz (Depends on different countries)
Active Ethernet: (Power-over-Ethernet, IEEE 802.3af) 48VDC/0.375A
Device: 12V/1A
Regulation Certifications: FCC Part 15/UL, CE
RF SPECIFICATIONS:
Frequency Band: 2.400ā2.484GHz
Media Access Protocol: Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA)
Modulation Technology: OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK
Operation Channels: 11 for North America
Receive Sensitivity (Typical):
IEEE 802.11n
MCS8 @ -91dBm
MCS15 @ -74dBm
IEEE 802.11g
6Mbps @ -92dBm
54Mbps @ -75dBm
IEEE 802.11b
1Mbps @ -93dBm
11Mbps @ -91dBm
Available Transmit Power:
IEEE 802.11n/g
19dBm @ 6~9Mbps / MCS9
18dBm @ 12~18Mbps / MCS11
17dBm @ 24~36Mbps / MCS13
16dBm @ 48~54Mbps / MCS15
IEEE 802.11b
18dBm @ 1~11Mbps
Antenna: Detachable Omni AntennaĀ x3;Ā RP-TNC Type; Peak Gain 5dBi
Impedance: 50ohm
Frequency Range: 0~6GHz
V.S.W.R.: 1.5 (Max)
Working Voltage: <=500Vrms
Dielectric Withstanding Voltage: <=1500Vrms
Insulation Resistance: >=5000Megohms
Contact Resistance: Center contact 1.5Milliohms (Max) / Outer contact 0.2Milliohms (Max)
SOFTWARE FEATURES:
Topology: Infrastructure
Operation Mode: Client Bridge / Access Point / WDS AP / WDS Bridge / Client Router / Router / Universal Repeater
LAN: DHCP Server / DHCP Client
Wireless:
Wireless Mode 802.11b / 802.11g / 802.11n
Channel Selection (Setting varies by Country)
Signal Strength
Bandwidth Selection 40/20MHz
Transmission Rate
802.11b/g: 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 in Mbps
802.11n:Ā See Below Chart
Guard Interval 800nsĀ Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Guard Interval 400ns
MCSĀ 20MHz(Mbps) / 40MHz(Mbps)Ā Ā Ā Ā Ā 20MHz(Mbps) / 40MHz(Mbps)
0Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 6.5Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 13.5Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 7.2Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 15
1Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 13Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 27Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 14.4Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 30
2Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 19.5Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 40.5Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 21.7Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 45
3Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 26Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 54Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 28.9Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 60
4Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 39Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 81Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 43.3Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 90
5Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 52Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 108Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 57.8Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 120
6Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 58.5Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 121.5Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 65Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 135
7Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 65Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 135Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 72.2Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 157.5
8Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 13Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 27Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 14.4Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 30
9Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 26Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 54Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 28.9Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 60
10Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 39Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 81Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 43.3Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 90Ā
11Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 52Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 108Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 57.8Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 120
12Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 78Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 162Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 86.7Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 180
13Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 104Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 216Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 115.6Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 240
14Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 117Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 243Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 130Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 270
15Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 130Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 270Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 144.4Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā 300
Security:
WEP Encryption 64/128bits
WPA Personal (WPA-PSK using TKIP or AES)
WPA Enterprise (WPA-EAP using TKIP)
802.1x Authenticator
802.1x Supplicant MD5/TTLS (Client Bridge & Client Router mode)
Hide SSID in Beacons
Multiple SSID with 802.1q VLAN Tagging (up to 4 SSID)(Access Point mode)
MAC Filter (Access Point mode)
WLAN L2 Isolation (Access Point mode)
Wireless STA (Client) Connected List
QoS: WMM
MANAGEMENT:
Configuration: Web-Based Configuration (HTTP) / Telnet
Firmware Upgrade: Upgrade Firmware via Web Browser; Keep Latest Setting When FirmwareĀ Update
Administrator Setting: Administrator Password Change
Reset Setting: Reboot / Reset to Factory Default
System Monitoring: Status, Statistics and Event Log
SNMP: v1, v2c
MIB: MIB I, MIB II (RFC1213), and Private MIB
Traffic Measurement: Per Interface
Bandwidth Measurement: IP Range & Bandwidth Management
Backup & Restore: Settings Through Web
ENVIRONMENT & PHYSICAL:
Temperature Range: Operation 0°C to 45°C (32°F to 113°F) / Storage -20°C to 70°C (-4°F to 158°F)
Humidity (Non-condensing): 5% ~ 95% Typical
Dimensions: L: 4.92ā (125mm) x W: 4.25ā (108mm) x H: 1.22ā (31mm)
Weight: 0.77lb. (350g)
