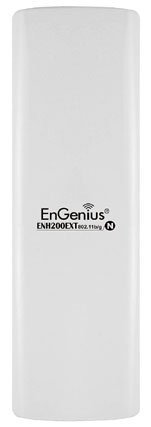

EnGenius- ENH200EXT NEW!!

BASIC INFO

Key Differentiators

• High-Power Long Range coverage
• Maximum 500mW Power output ensures robust signal overcoming long distances barrier that Provides superior Wi-Fi coverage over competitors
• High performance three time as fast as wireless G access point.
• Built-in SMA connector & included SMA-N-type conversion cable allows installers to choose different antenna for the device.
• Designed for outdoor usage with IP65 rated housing
• Supports multiple SSID/VLAN binding provide business class network security

ENH200EXT features & benefits:

• High-output power up to 27 dBm delivers superior range and coverage
• Fully interoperable with IEEE 802.11b/IEEE 802.11g/IEEE 802.11n-compliant devices
• Built-in RP SMA connector & SMA-N-type conversion cable give installer to choose the type of antenna w/ different gains that perfectly fit the project.
• High-speed data rates up to 150 Mbps make the ENH200EXT ideally suited for handling heavy data payloads such outdoor security camera, video streaming, etc.
• WPA2/WPA/ WEP/ IEEE 802.1x support and MAC address filtering ensure secure network connections
• RSSI indicator makes it easy to select the best signal for Access Point connections
• Four SSIDs provides different wireless network accesses with the same access point
• Multi-function operation (Access point/Client/WDS bridge/WDS AP) modes provide extremely flexible deployment
• WMM Quality of Service (QoS) support enhances performance and user experiences

SPECIFICATIONS:

Hardware Specifications
MCU: Atheros AR7240
Memory: 32 MB
Flash: 8 MB
Physical Interface: 10/100 Fast Ethernet port x 1
One Reset button
LED’s Status:
Power (Status)
LAN1 (10/100Mbps)
WLAN (Wireless is up)
3 x Link Quality (Client Bridge mode)
Power requirements:
Active Ethernet: (Power over Ethernet) Proprietary PoE design
Power Adapter: 24VDC / 0.6A

RF SPECIFICATIONS:

Wireless standard
IEEE802.11 b/g/n
Frequency Band: 2.412 ~ 2.472GH (b/g/n)
Modulation Technologies: IEEE 802.11b: DBQSK, DQPSK, CCK
IEEE 802.11g: BQSK, QPSK, 16-QAM, 64-QAM
IEEE 802.11n: BQSK, QPSK, 16-QAM, 64-QAM
Operating Channels:
11 channels
Transmit Power
802.11b (2.412 ~ 2.472GHz)
27 dBm@1Mbps
27 dBm@2Mbps
27 [email protected]
27 dBm@11Mbps

802.11g(2.412 ~ 2.472GHz)
26dBm@6Mbps
26dBm@9Mbps
26dBm@12Mbps
26dBm@18Mbps
25dBm@24Mbps
24dBm@36Mbps
23dBm@48Mbps
22dBm@54Mbps

802.11n(2.412 ~ 2.472GHz)
MCS0 / MCS8 26dBm
MCS1 / MCS9 26dBm
MCS2 / MCS10 26dBm
MCS3 / MCS11 26dBm
MCS4 / MCS12 24dBm
MCS5 / MCS13 23dBm
MCS6 / MCS14 22dBm
MCS7 / MCS15 21dBm
Receiver Sensitivity (Typical):
802.11b(2.412 ~ 2.472GHz)
-97dBm@1Mbps
-95dBm@2Mbps
[email protected]
-89dBm@11Mbps

802.11g(2.412 ~ 2.472GHz)
-96dBm@6Mbps
-93dBm@9Mbps
-89dBm@12Mbps
-85dBm@18Mbps
-81dBm@24Mbps
-79dBm@36Mbps
-76dBm@48Mbps
-75dBm@54Mbps

802.11n(2.412 ~ 2.472GHz)
MCS0 / MCS8 -95dBm
MCS1 / MCS9 -92dBm
MCS2 / MCS10 -87dBm
MCS3 / MCS11 -85dBm
MCS4 / MCS12 -80dBm
MCS5 / MCS13 -79dBm
MCS6 / MCS14 -74dBm
MCS7 / MCS15 -73dBm

Antenna: Built-in RP SMA connector & SMA-N-type conversion cable
Antenna not included
Frequency Band Range: 2.4 GHz ~ 2.5 GHz

SOFTWARE FEATURES:

Topology: Infrastructure
Protocol: IEEE802.3, 802.3U, 802.11 b/g/n (2.4 GHz)
Operation mode: Client Bridge/Access Point/WDS bridge/Client Router
Service: DHCP server/client
VPN: VPN Pass-through
Networking: PPPoE, PPTP
Narrow bandwidth (selectable 5MHz/10MHz/20MHz/40MHz )

MANAGEMENT:

Firmware upgrade: Reset & Backup, Ping & Trace Route
MIB: MIB I, MIB II(RFC1213), Private MIB
SNMP: SNMP v1, v2c
Security:
WEP Encryption-64/128/152 bit
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
802.1x Authenticator
Hide SSID in beacons
MAC address filtering, up to 50 field
Wireless STA (Client) connected list
QoS
WMM (Wi-Fi Multimedia)

ENVIRONMENT & PHYSICAL:

Temperature Range
Operating: -20°C to 70°C (-4°F to 158°F)
Storage: -30°C to 80°C (-22°F to 176°F)
Humidity (non-condensing): 0%～90% typical
Dimensions: Length: 10.24” (260mm) x Width: 3.31” (84mm) x Height: 2.17” (55mm)
Weight: 0.9 Ib
Certifications: FCC, CE, IC
