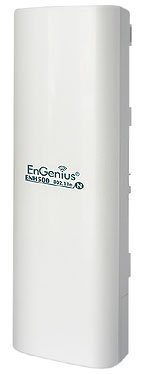

EnGenius ENH500..NEW!!

BASIC INFO

The following list summarizes the key features of the ENH200:
– High-output power up to 28dBm delivers superior range and coverage
– Fully interoperable with IEEE 802.11a/IEEE 802.11n-compliant devices
– High-speed data rates up to 300 Mbps make the ENH500 ideally suited for handling heavy data payloads such outdoor security camera, video streaming, etc.
– WPA2/WPA/ WEP/ IEEE 802.1x support and MAC address filtering ensure secure network connections
– RSSI indicator makes it easy to select the best signal for Access Point connections
– Power-over-Ethernet capabilities allow for flexible installation locations and cost savings
– Four SSIDs let clients access different networks through a single Access Point, and assign different policies and functions for each SSID
– Multi-function operation (CB/AP/WDS/APRouter) modes provide flexible deployment
– The AP-Router mode with PPPoE/PPTP, DHCP server function support in special network deployment in which the CPE also serves as Internet gateway
– QoS (WMM) support enhances performance and user experiences

Key Differentiators

High-Power Long Range wireless coverage
– Maximum 600mW Power output ensures robust signal overcoming long distances barrier

5GHz for minimal interference
– A High performance three time as fast as wireless G. The Maximum wireless connection rate is up to 150 Mbps. Backward compatible to wireless b/g network.
Integrated Dual Polarity Antenna Design

– Selectable vertical or horizontal antenna polarity to avoid interference and Maximize performance
Design for Outdoor Deployment

– IP55 waterproof housing against rain, moisture
High wireless data rate up to 300Mbps

– Compliant with 802.11n standard for connection rate up to 300Mbps – 6x the speed of similar 802.11g devices and backward compatible to 11g
Internal High-Gain Directional Antenna

– With built-in 13 dBi antenna gives you long range reach
PoE kit & mounting kit provides easy installation
– Included power adapter, PoE injector, mast mount strap, cable accessories.

SPECIFICATIONS:
Hardware Specifications
MCU: Atheros AR7240
RF: Atheros AR9280
Memory: 32 MB
Flash: 8 MB
Physical Interface: 10/100 Fast Ethernet port x 2
One Reset button
LED’s Status:
Power (Status)
LAN1 (PoE 10/100Mbps) /LAN2 (10/100Mbps)
WLAN (Wireless is up)
3 x Link Quality (Client Bridge mode)
Power requirements:
Active Ethernet: (Power over Ethernet) Proprietary PoE design
Power Adapter: 24VAC / 0.6A

RF SPECIFICATIONS:
Wireless standard
IEEE802.11 a/n
Frequency Band: 5.18 ~ 5.825GHz (a/n)
Modulation Technologies: IEEE 802.11b: DBQSK, DQPSK, CCK
IEEE 802.11a: BQSK, QPSK, 16-QAM, 64-QAM
IEEE 802.11n: BQSK, QPSK, 16-QAM, 64-QAM
Operating Channels:
24 channels

Transmit/Recieve Power

Antenna: Internal Antenna x 2
Antenna gain: 13 dBi
Frequency Band Range: 5.18 ~ 5.825GHz
Horizontal Beam width: 60°
Vertical Beam width: 15°
Antenna Polarity: Dual-Polarized: Vertical/Horinzontal
This product does not include an external antenna connector.

SOFTWARE FEATURES:
Topology: Infrastructure
Protocol: IEEE802.3, 802.3U, 802.11 a/n (5GHz)
Operation mode: Client Bridge/Access Point/WDS bridge/Client Router
Service: DHCP server/client
VPN: VPN Pass-through
Networking: PPPoE, PPTP
Narrow bandwidth (selectable 20MHz/40MHz )

MANAGEMENT:
Firmware upgrade: Reset & Backup, Ping & Trace Route
MIB: MIB I, MIB II(RFC1213), Private MIB
SNMP: SNMP v1, v2c
Security:
WEP Encryption-64/128/152 bit
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
802.1x Authenticator
Hide SSID in beacons
MAC address filtering, up to 50 field
Wireless STA (Client) connected list
QoS: WMM (Wi-Fi Multimedia)

ENVIRONMENT & PHYSICAL:
Temperature Range
Operating: -20°C to 70°C (-4°F to 158°F)
Storage: -30°C to 80°C (-22°F to 176°F)
Humidity (non-condensing): 0%～90% typical
Dimensions: Length: 10.24” (260mm) x Width: 3.31” (84mm) x Height: 2.17” (55mm)
Weight: 0.9 Ib
Certifications: FCC, CE, IC
