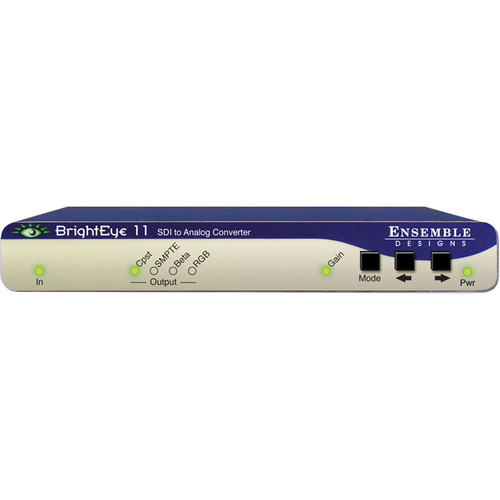

Ensemble Designs BrightEye 11 SDI-to-Analog Converter

Add to Wishlist

AED3,599.00

Add to Wishlist

The BrightEye 11 SDI-to-Analog Converter from Ensemble Designs, is a device designed to convert an SDI input to a wide range of analog output formats, including Beta, SMPTE, RGB, and composite (with simultaneous Y/C). Processing, encoding and conversion are performed digitally at 12-bit resolution with 8X oversampling.

Front-panel controls allow you to select the input source and format, as well as adjust video gain. Video levels can also be adjusted through the BrightEye software package that is included with the unit and compatible with both Windows and Mac operating systems.

SDI-to-Analog Conversion
Use this device to convert an SDI input to a wide range of analog output formats: Beta, SMPTE, RGB, and composite (with simultaneous Y/C).
Controls
The unit can be controlled through the push buttons on the converter’s faceplate or through the proprietary software package included with the unit.
OS Compatibility
The converter will work on both Windows and Mac operating systems.
12-Bit Resolution
The unit offers 12-bit resolution.
SKU: BE11 Category: Tag:
Construction
Metal, plastic
Finish
Blue, silver
Inputs
SERIAL DIGITAL INPUT
Quantity: x1
Signal type: 270Mb/s SD serial digital (SMPTE 259M)
Impedance: 75Ī©
Return Loss: >15dB
Maximum cable length: 984ft (300m)
Outputs
ANALOG OUTPUT
Quantity: x1
Type:
Beta/SMPTE, Y, Pr, Pb
RGB
NTSC, PAL Composite
NTSC, PAL S-Video
Return Loss: >40 dB
Output: DC None (AC coupled)

SERIAL DIGITAL OUTPUT
Quantity: x1
Type: 270Mb/s SD serial digital (SMPTE 259M)
Impedance: 75Ī©
Return loss: >15dB
Output: DC <50mV
Conversion
SDI-to-ANALOG PERFORMANCE
Bit resolution:
12-bit output reconstruction
8X oversampling
Signal to noise: >65dB
Frequency response: Ā±0.1dB, 0 to 5.5MHz
K Factor: <1%
ScH phase error: <Ā±2Ā°
Differential phase: <1Ā°
Differential gain: <1%
Power
12V, 7W

*100 to 230VAC modular power supply not included
Dimensions
0.8 x 5.625 x 5.5″ ( 20 x 143 x 140mm)
Weight
Not specified by manufacturer
Packaging Info
Package Weight
1.44 lb
Box Dimensions (LxWxH)
9 x 8 x 2.5″
