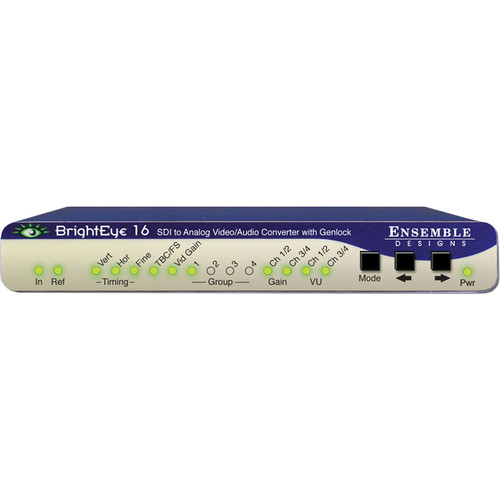

Ensemble Designs BrightEye 16 SDI to Analog and Audio Disembedder with Genlock Frame-Sync – SDI, Digital Audio, BNC and Multipin Connections

Add to Wishlist

AED7,199.00

Add to Wishlist

The Ensemble Design BrightEye 16 is an SDI to analog video converter and audio disembedder for SDI digital video signals. This device will convert SDI to composite video and extract a digital audio signal from an SDI video signal and output balanced analog audio. This model features frame sync and genlock capabilities.

Audio Capability
Four AES audio channels can be disembedded from the SDI video stream and converted to analog balanced audio.
Frame Sync and Genlock
This allows the BrightEye 16 to be used for broadcast or timed into studio operations requiring synchronization.
Adjustable
Audio mixing, level adjustments and channel shuffling can be accomplished in both modes.
Analog Video
SDI video is converted to composite analog video.
Category: Tag:
Input
SDI Video, SMPTE 259 with embedded audio, on a BNC connector
PC or Mac Connectivity, on a USB connector
Reference, on a BNC connector
Output
Analog Audio x4, extracted, balanced, on a multipin connectors
Composite Video x2, 1 Vpp @ 75 ohms, on a BNC connector
Processes
Disembedding Digital Audio from an SDI Digital Video Signal Stream
Converting SDI Video to Composite Analog Video with Four Channels of Balanced Analog Audio
Frame Sync Capabilities
Control
Front Panel or Remote Computer Via USB:
Embed
Signal Level Adjustment
Channel Selection
Timing
Proc-Amp
Power Source
12 VDC from an external power source (not included)
Dimensions (WxHxD)
5.625 x 0.8 x 5.5″
14.3 x 2 x 14cm
Weight
Not Specified by Manufacturer
Packaging Info
Package Weight
1.45 lb
Box Dimensions (LxWxH)
8.8 x 7.9 x 2.4″
