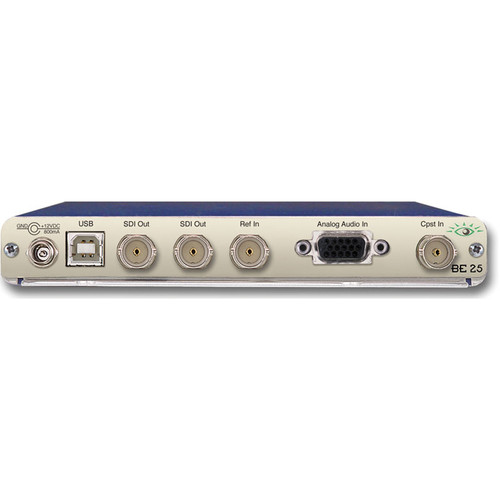

Ensemble Designs BrightEye 25 Analog Video and Audio to SDI Converter – SDI, Analog Audio, TBC and Embedder, BNC and Multipin Connections

Add to Wishlist

AED6,199.00

Add to Wishlist

The Ensemble Design BrightEye 25 is an analog video and audio to SDI converter. This device will accept composite video and balanced audio and output SDI video with embedded audio. It features TBC and frame-sync capabilities.

TBC and Frame-Sync
A TBC/Frame Sync is a standard feature and allows this BrightEye to work with any sort of video input. Great for broadcast and desktop applications, BrightEye 25 can be used with sources such as VTRs and incoming satellite feeds.
Audio Capability
Analog audio can be embedded in the SDI video signal.
Adjustable
The audio is converted to digital and then it passes through the built-in four channel mixer with shuffle and level control.
Remote
This device can be controlled by a PC or Mac computer with software and USB connectivity.
SKU: BE25 Category: Tag:
Input
Composite Video, PAL or NTSC, 1 Vpp @ 75 ohms, on a BNC connector
Balanced Analog Audio x4, @ 30 ohms, on a mulitpin connector
PC or Mac Connectivity, on a USB connector
Reference Video, on a BNC connector
Output
SDI Video x2, SMPTE 259, with embedded audio, on BNC connectors
PC or Mac Connectivity, on a USB connector
Processes
Composite Video Conversion to SDI Video
Embedding Analog Audio on an SDI Digital Video Signal Stream
TBC and Frame Sync
Control
Front Panel or Remote Computer Via USB:
Embed
NTSC or PAL
Audio Mixer Adjustment
Channel Selection
Video Proc-Amp
Power Source
12 VDC from an external power source (not included)
Dimensions (WxHxD)
5.625 x 0.8 x 5.5″
14.3 x 2 x 14cm
Weight
Not Specified by Manufacturer
Packaging Info
Package Weight
1.5 lb
Box Dimensions (LxWxH)
9 x 8 x 2.5″
