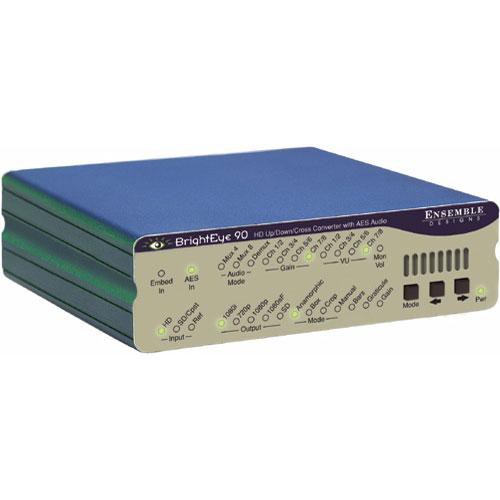

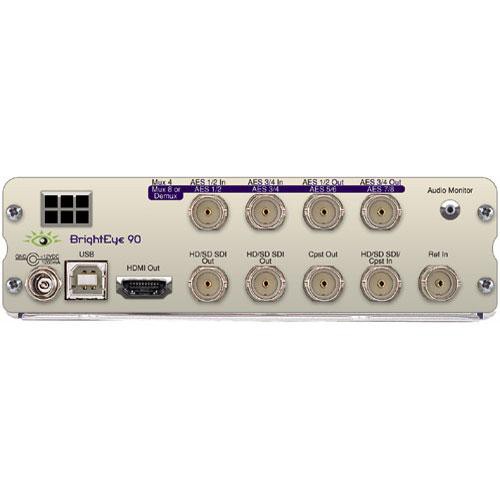

Ensemble Designs BrightEye 90 HD Up-, Down-, Cross- & ARC-Converter with AES Audio

SERIAL DIGITAL INPUT
Quantity: x1
Signal type:
270Mbs SD serial digital (SMPTE 259M)
1.485Gbs HD serial digital (SMPTE 274M or 296M)
Impedance: 75Ω
Return loss: >15dB
Maximum cable length:
984 ft (300m) for 270 Mbs
328 ft (100m) for 1.485 Gbs

REFERENCE INPUT
Quantity: x1
Type:
1Vp-p Composite Video
PAL or NTSC
Tri-level sync
Impedance: 75Ω
Return loss: >40dB

AES/EBU DIGITAL INPUTS
Quantity: x4 (total of eight channels, selectable as inputs or outputs)
Type: AES3id
Connector: coaxial, 75Ω
Bit depth: 20 and 24 bit
Sample rate: 30KHz to 96KHz (sample rate converted internally to 48KHz)
Reference level: -18 or -20dBFS (selectable)

SERIAL DIGITAL OUTPUT
Quantity: x2
Type:
HD serial digital 1.485 Gbs (SMPTE 274M or 296M)
SD serial digital 270Mbs (SMPTE 259M-C)
Processing: 12 and 16 bit
Impedance: 75Ω
Return loss: >15dB
Maximum cable length:
328 ft (100m) for HD
984 ft (300m) for SD
(Belden 1694A or equiv.)
HD standards supported:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60Hz
1080p (SMPTE 274M -9,10,11) 23.98,24, 25Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz

AES/EBU DIGITAL VIDEO OUTPUT
Quantity: x4 (total of eight channels, selectable as inputs or outputs)
Type: AES3id
Connectors: coaxial, 75Ω
Bit depth: 24 bit
Sample rate:
48KHz
Synchronous to video output
Reference level: -18 or -20dBFS (selectable)

EMBEDDED OUTPUT (in serial output)
Group assignment: two of four groups
Channels: x16 passed
Bit depth: 24 bit

MONITOR OUTPUT
Quantity: x1
Connector: HDMI

AUDIO MONITORING OUTPUT
Quantity: x1  (select from eight channels)

Connector: 3.5mm stereo mini jack

*100 to 230VAC modular power supply not included
