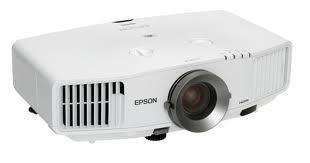

Epson Projector EB-G5100 Lumens 4000, XGA, 6.6Kg, 1000:1

PRODUCT TYPE  Portable Multimedia Projector
PRODUCT NAME Epson EB-G5100
PROJECTION SYSTEM  RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD  Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.8 inches with MLA
  Driving method Poly-Silicon TFT Active Matrix
  Pixel number 786,432 pixels (1024 x 768) x 3
  Native resolution XGA
   Aspect ratio 4:3
  Pixel arrangement Cross Stripe
  Refresh Rate 50Hz-60Hz
PROJECTION LENS Type Manual: zoom / focus
  F-number 1.64 – 2.5
  Focus length 21.27 – 37.93mm
  Zoom ratio 1:1.8
PROJECTION LAMP Type E-TORL 210 W UHE
  Optical System Dichroic Mirror Separation & Prism Combine Method
SCREEN SIZE (PROJECTED DISTANCE)  30 to 300 inch [0.77m to 8.08m] (Zoom: Wide),
30 to 300 inch [1.42m to 14.57m] (Zoom: Tele)
100″ screen 2.66m Â? 4.83m
LENS SHIFT RANGE
  MANUAL Vertical +/-60% max
(upward and downward)
    Horizontal +/-10% max
(left and right)
BRIGHTNESS
  High Brightness Mode 4,000 Lumens Light Output
4,000 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide)
  Low Brightness Mode 3,200 Lumens Light Output
3,200 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide)
CONTRAST 1000:1
BRIGHTNESS UNIFORMITY 86%
COLOUR REPRODUCTIVITY Full colour (16.77 million colours)
SOUND OUTPUT (Internal speaker) 7W monaural
FUNCTION Pointer, User Logo, A/V mute, Freeze, E Zoom, Test Pattern
EFFECTIVE SCANNING FREQUENCY RANGE (Analog)
PIXEL CLOCK 13.5MHz to 162MHz ( up to UXGA 60Hz )
HORIZONTAL 15KHz to 99KHz
VERTICAL 50Hz to 120Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal
FOOT ADJUSTER Front-centre / Rear side
TILT ANGLE -2.5  to 10 degrees
KEYSTONE CORRECTION Vertical: -40 to +40 degrees (Zoom: Tele)
Horizontal: -20 to +20 degrees (Zoom: Tele)
QUICK CORNER
 Yes
SOURCE SEARCH               Yes
AUTO DETECTION OF RGB YCbCr Yes
MULTI SCREEN COLOUR ADJUSTMENT Yes
OPERATION PANEL PROTECTION  Yes
PASSWORD PROTECTED  Yes
HIGH ALTITUDE MODE Yes
COLOUR MODE PC Photo, Presentation,Text, Theatre, Game, SRGB, Blackboard.
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 1024 x 768 pixels
INPUT SIGNAL Signal type Separate signal
  Video signal Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. signal Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
  Audio signal 500mVrms / 47K-ohm
VIDEO INPUT TERMINAL   D-sub 15pin x 2 Blue-moulding
VIDEO I/O
DISPLAY PERFORMANCE   NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Video signal Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Audio signal 500mVrms / 47Kohm
VIDEO INPUT TERMINAL   Composite Video: RCA (Yellow) x 1
S-Video: Mini DIN
Component Video: Mini D-sub 15pin Blue-moulding x 2
(in common with Analog RGB connector)
Video-RGB: Mini D-sub 15pin 2 x Blue-moulding
(in common with Analog RGB connector

CONTROL I/O
USB I/O I/O terminal N/A
  I/O speed N/A
SERIAL I/O I/O Terminal D-sub 9 pin x 1
  I/O signal RS-232C
NETWORK I/O
USB I/O Type N/A
  Supported wireless LAN unit N/A
  Wired LAN RJ45 x 1
OPERATING TEMPERATURE  0°C to 40°C (32°F to 104°F), (20% – 80% Humidity unfrozen)
Thermal shutdown > 45 degree C
  0°C to 35°C (32°F to 95°F), ( over 1500m with high altitude mode, High brightness)
OPERATING ALTITUDE 0m to 3000m < 0ft to 9843ft >
(over 1500m / 4,921ft with high altitude mode)
DIRECT POWER ON Yes
DIRECT POWER OFF Yes
COOL-DOWN PERIOD Instant off
THEFT PROOF
  Security Cable Hole Yes
  Kensington Lock Yes
POWER SUPPLY VOLTAGE  100-240V AC±10% 50/60Hz
POWER CONSUMPTION
  lamp On 327W
  Stand by ( network on ) 12W
  Stand by ( network off ) 0.6W
DIMENSION
EXCLUDE FEET 311.5mm(D) x 470mm(W) x 135mm(H)
MAXIMUM DIMENSION 311.5mm(D) x 470mm(W) x 151.5mm(H)
WEIGHT Approx. 6.6Kg
FAN NOISE
HIGH BRIGHTNESS MODE 35dB
LOW BRIGHTNESS MODE 29dB
ACCESSORIES
POWER CABLE 3m
COMPUTER CABLE 1.8m, D-sub 15pin (Male) – Mini D-sub 15pin (Male)


USB CABLE N/A
REMOTE CONTROL Included
BATTERY Alkaline AA x 2
USER MANUAL SET Included (CD-ROM)
PROJECTOR SOFTWARE Included (CD-ROM)
PASSWORD PROTECT STICKER Included
EASY MP
Function   Projector control and projector management via network
Email notification
SNMP
PJ Link
AMX Device Discovery compatible
Web Control

  Software EMP IP Link V4.21 ( for Windows*)
EMP Monitor (for Windows*#)
* Software compatible with MS Vista
# EMP NS Connection, EMP Monitor or EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit.
WARRANTY
STANDARD WARRANTY 2 years*
*excluding lamp
* For more information visit Epson Projector Warranty
PRODUCT CODE  V11H272053
PRODUCT OPTIONS
Item Code Description
V11H272953 Main projector unit without standard lens

V12H004S03
 Standard Lens

V12H004R03
 Rear Projection Lens
