Epson professional photo and graphics printers built around the PrecisionCore MicroTFP printhead technology have set the benchmark for high-end print quality. With the SureColor P8570DL, Epson brings that same technology to high-speed production, photo and graphic art printing – with an equally extraordinary design. Featuring the smallest footprint in its class and all-front-operation, this high-performance printer fits where other printers can’t. Its innovative 6-color aqueous-pigment ink set delivers the widest color gamut in its class. This printer pairs simple, carefree operation with new levels of versatility and media flexibility, as well as a dual-roll configuration, to help you do more with less – all with a low total cost of ownership. Add it all up, and this is not just a one-of-a-kind printer – it’s a powerful option for high-volume shops and fleets. The SureColor P8570DL uses 6-color UltraChrome PRO6 Ink with Gray and a high-capacity 1.6-liter ink pack system to produce vivid, beautiful output that rivals comparable 8-color printers.
Printers & Supplies

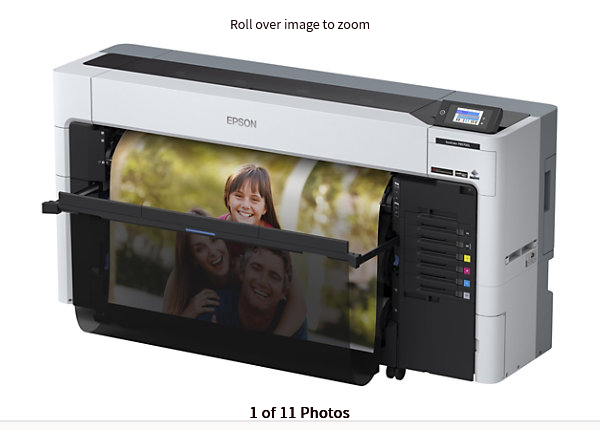

Epson SureColor P8570DL – large-format printer – color – ink-jet
Quick tech specs
- 44″ large-format printer
- ink-jet
- USB 3.0, Gigabit LAN, Wi-Fi(ac)
- color
- – 2400 x 1200 dpi
- cutter
AED59,699.00
Overview |
Brand | Epson |
Product Line | Epson SureColor |
Model | P8570DL |
Manufacturer | Epson UMRP |
Memory |
RAM Installed | 4 GB |
Connectivity |
Interface | Gigabit LAN, USB 3.0, Wi-Fi(ac) |
Interface Required Connections | 1 Ć Gigabit LAN (RJ-45), 1 Ć USB 3.0 |
Printing |
Borderless Photo Sizes | Roll (10 in), Roll (11.8 in), Roll (13 in), Roll (16 in), Roll (17 in), Roll (20 in), Roll (20.3 in), Roll (24 in), Roll (28.66 in), Roll (33.1 in), Roll (36 in), Roll (40.6 in), Roll (44 in), Roll A1 (24 in) |
Color | 6-ink |
Duplex Printing | None |
Image Enhancement Technology | Epson Variable-sized Droplet Technology |
Ink Cartridge Configuration | 6 cartridges (cyan, magenta, yellow, gray, photo black, matte black) |
Ink Palette Supported | Cyan, magenta, yellow, photo black, matte black, gray |
Ink Type | Epson UltraChrome PRO6 |
Inkjet Technology | Epson PrecisionCore MicroTFP |
Max B/W Print Resolution | 2400 Ć 1200 dpi |
Max Color Print Resolution | 2400 Ć 1200 dpi |
Max H-Document Size | 44 in |
Max Print Length | 298 ft |
Max Print Size | Roll (44 in) |
Max Resolution Class B/W | 2400 Ć 1200 dpi |
Max Resolution Class Color | 2400 Ć 1200 dpi |
Media Thickness Range | 0.0028 in ā 0.06 in |
Min H-Document Size | 8 in |
Minimum Ink Droplet Size | 3.5 pl |
Mobile Device Printing | Epson Cloud Solution PORT |
Photo Printing | Yes |
Print Output Type | Color |
Wireless Print Technology | Wired, Wireless |
Wireless Print Technology Ready | Yes |
Media Types & Handling |
Large Format Printer Size | 44″ (1118 mm) |
Media Feeders | 1 Ć automatic ā 2 rolls (44 in) |
Media Size Class | Other |
Media Sizes | 8.5 Ć 11 in, Roll (10ā44 in), Roll A1 (24 in) |
Media Type | Other, Plain paper |
Power |
Frequency | 50/60 Hz |
Power Consumption Operational | 70 W |
Power Device Type | Power supply |
Required Voltage | AC 110ā240 V |
Sleep-Mode Power Consumption | 2 W |
Software |
Software Type | EpsonNet Config, EpsonNet Print, EpsonNet Setup |
Technical Information |
Auto Paper Cutter | Yes |
Power Device Form Factor | Internal |
Language Emulation | Adobe PostScript 3, EPSON ESC/P, HP GL/2, HP RTL, PDF 1.7 |
Max Operating Temperature | 95 °F |
Min Operating Temperature | 50 °F |
Operating Humidity | 20 ā 80% (non-condensing) |
Operating System Required | macOS 10.9.5 or later (incl. macOS 11+), Windows XP (32/64-bit) through Windows 10, Windows Server 2003 SP2 through 2019 |
Sound Emission (Operating) | 49.6 dBA |
Product Information |
Built-in Devices | Touch screen |
Office Machine Type | Printer |
Printer Product Type | Large-format printer |
Scanner Functionality | None |
Printer Functions | Printer |
Packaged Quantity | 1 |
Preview Screen Size | 4.3″ (10.9 cm) |
Print Technology | Inkjet |
Printer Features | Auto take up reel, Borderless printing |
Included Items |
Printer Accessories Included | 2 roll adapters |
Dimensions & Weight |
Height | 38.4 in |
Width | 72.8 in |
Depth | 19.6 in |
Weight | 363.76 lbs |
Physical Characteristics |
Color Category | Black, White |
Certifications & Listings |
Compliant Standards | FCC Class B certified, RoHS, UL/CSA 62368-1 |
Energy Star | Yes |
ENERGY STAR Certified | No |
EPEAT Compliant | No |
TCO Certified | No |
Energy & Performance |
Standby Power Consumption | 0.3 W |
