Epson delivers a first-of-its-kind design that shatters expectations and redefines capability, versatility and efficiency for its class: the SureColor T3770DR. With a compact footprint and all-front operation, the T3770DR fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, producing technical drawings at production-class speeds with A1/D-size prints in as little as 16 seconds1. Its innovative six-ink set with dedicated Red Ink opens the door to an extraordinary color gamut for a production printer as well as rich red branding colors. And simple, carefree operation combined with new levels of media flexibility helps users do more using less space – all with a low total cost of ownership (TCO). Add it all up, and this is not just a one-of-a-kind printer – it’s the new benchmark in high-speed CAD and graphics.
Printers & Supplies

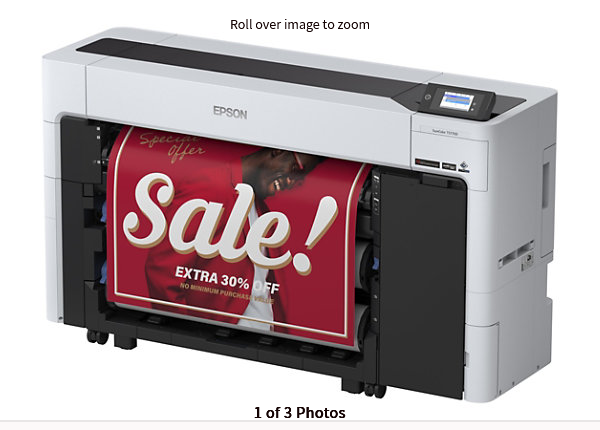

Epson SureColor T3770DR – large-format printer – color – ink-jet
Quick tech specs
- 24″ large-format printer
- ink-jet
- Gigabit LAN, USB 3.0, Wi-Fi(ac)
- color
- – 2400 x 1200 dpi
- cutter
AED26,399.00
Overview |
Brand | Epson |
Product Line | Epson SureColor |
Model | T3770DR |
Manufacturer | Epson UMRP |
Memory |
RAM Installed | 4 GB |
Network & Communication |
Product Type | Print server |
Connectivity |
Interface | Gigabit LAN, USB 3.0, Wi-Fi(ac) |
Required Connections | 1 x Gigabit LAN (RJ-45), 1 x USB 3.0 (9-pin Type B) |
Printing |
Color | 6-ink |
Ink Cartridge Configuration | 6 cartridges (Cyan, Magenta, Yellow, Red, Photo Black, Matte Black) |
Ink Palette Supported | Cyan, Magenta, Yellow, Red, Photo Black, Matte Black |
Ink Type | Epson UltraChrome XD3 Ink |
Inkjet Technology | Epson PrecisionCore MicroTFP |
Image Enhancement Technology | EPSON Variable-sized Droplet Technology |
Max B/W Print Resolution | 2400 x 1200 dpi |
Max Color Print Resolution | 2400 x 1200 dpi |
Max Resolution Class B/W | 2400 x 1200 dpi |
Max Resolution Class Color | 2400 x 1200 dpi |
Max H-Document Size | 24 in |
Max Print Size | Roll (24 in) |
Max Print Length | 298 ft |
Media Thickness Range | up to 0.06 in |
Min H-Document Size | 10 in |
Minimum Ink Droplet Size | 3.5 pl |
Nozzle Configuration | 6 x 1600 nozzles |
Print Output Type | Color |
Mobile Device Printing | Epson Cloud Solution PORT |
Wireless Print Technology | Wired, Wireless |
Wireless Print Ready | Yes |
Media Types & Handling |
Large Format Printer Size | 24″ (610 mm) |
Media Feeders | 1 x manual – 1 roll – Roll (24 in) |
Media Size Class | Other |
Media Sizes | Roll (25.4ā61 cm), Roll A1 (24 in) |
Media Type | Other, Plain paper |
Power |
Frequency | 50/60 Hz |
Power Consumption (Operational) | 75 W |
Required Voltage | AC 110ā240 V |
Power Device Type | Power supply |
Sleep-Mode Power Consumption | 2 W |
Standby Power Consumption | 0.3 W |
Software |
Software Type | EpsonNet Config, EpsonNet Print, EpsonNet Setup |
Technical Information |
Auto Paper Cutter | Yes |
Power Device Form Factor | Internal |
Language Emulation | EPSON ESC/P Raster, HP GL/2, HP RTL, PDF 1.7, PostScript 3 |
Max Operating Temperature | 95 °F |
Min Operating Temperature | 50 °F |
Operating Humidity | 20 ā 80% (non-condensing) |
Supported Media Types | Bond, Continuous, Glossy, Matte, Plain, Technical paper |
Operating System Support | macOS 11 or later, macOS X 10.9.5 or later, Windows XP (32/64-bit), Vista, 7, 8, 8.1, 10, Windows Server 2003ā2019 |
Sound Emission (Operating) | 49.6 dBA |
Product Information |
Built-in Devices | 4.3″ LCD touch screen |
Office Machine Type | Printer |
Printer Product Type | Large-format printer |
Printer Functions | Printer |
Packaged Quantity | 1 |
Print Technology | Inkjet |
Included Items |
Consumables Included | 6 x ink cartridges (240 ml each: Cyan, Magenta, Yellow, Red, Photo Black, Matte Black) |
Accessories Included | 2 roll adapters |
Dimensions & Weight |
Height | 39 in |
Width | 53.9 in |
Depth | 20 in |
Weight | 260.14 lbs |
Physical Characteristics |
Color Category | Black, White |
Certifications & Listings |
Compliant Standards | FCC Class B, NRTL, RoHS, UL/CSA 62368-1 |
Energy Star | Yes |
ENERGY STAR Certified | No |
EPEAT Compliant | No |
TCO Certified | No |
