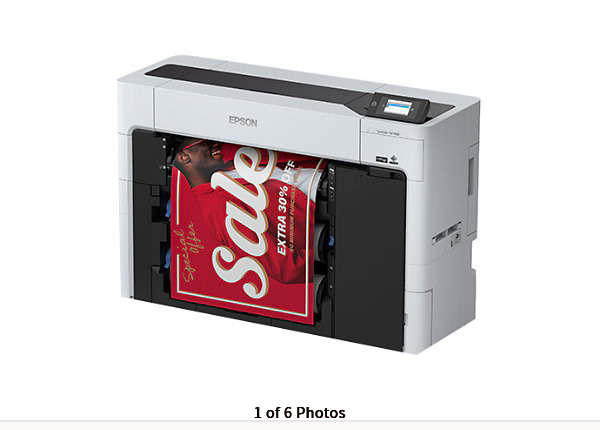

Epson SureColor T3770E 24″ Large Format Single Roll CAD/Technical Printer

Add to Wishlist

Quick tech specs

  • Incredible Speed and Performance
  • Stunning Image Quality and Precise Line Detail
  • Easy to Use and Maintain
  • Maximize Productivity with Epson Software Suite and Epson Cloud Solution Port
  • Innovative Design Fits Any Workflow
  • Print on a Wide Range of Media for Various Applications
  • Versatile Connectivity

AED22,799.00

Add to Wishlist

The 24-inch Epson SureColor T3770E Large Format Single Roll CAD/Technical Printer, with a compact footprint and all-front operation, fits and operates effortlessly in any space. Its six-ink set with dedicated Red Ink opens the door to a wide range of color gamuts for a production printer as well as rich red branding colors. This helps with the production of technical drawings and graphics at high speed.

SKU: SCT3770ESR Category: Tag:
Category Specification
Overview
Brand Epson
Product Line Epson SureColor
Model T3770E
Manufacturer Epson UMRP
Memory
RAM Installed 4 GB
Network & Communication
Product Type Print server
Connectivity
Interface Gigabit LAN, USB 3.0, USB host, Wi-Fi(ac)
Interface Required Connections 1 x Gigabit LAN, 1 x USB 3.0, 1 x USB host
Printing
Borderless Photo Sizes Roll (10 in), Roll (13 in), Roll (16 in), Roll (17 in), Roll (20 in), Roll (24 in)
Color 6-ink
Image Enhancement Technology EPSON Variable-sized Droplet Technology
Ink Cartridge Configuration 6 individual ink tanks
Ink Palette Supported (Colors) Cyan, Magenta, Yellow, Red, Photo Black, Matte Black
Ink Type Epson UltraChrome XD3 Ink
Inkjet Technology Epson PrecisionCore MicroTFP
Max B/W Print Resolution 2400 x 1200 dpi
Max Color Print Resolution 2400 x 1200 dpi
Max Color Print Speed 1.1 min/page
Max Mono Print Speed 1.1 min/page
Max H-Document Size 24 in
Max Media Weight 27 lbs
Max Print Length 298 ft
Max Print Size Roll (24 in)
Max Resolution Class B/W 2400 x 1200 dpi
Max Resolution Class Color 2400 x 1200 dpi
Media Thickness Range up to 0.06 in
Min H-Document Size 8 in
Min V-Document Size 8 in
Minimum Ink Droplet Size 3.5 pl
Mobile Device Printing Epson Cloud Solution PORT
Nozzle Configuration 6 x 1600 nozzles
Print Output Type Color
Print Speed Up to 0.3 min/page – A1 (23.4 in x 33.1 in), Up to 1.1 min/page – speed mode – A1
Wireless Print Technology Wired, Wireless
Wireless Print Technology Ready Yes
Media Types & Handling
Large Format Printer Size 24″
Large Format Printer Size (metric) 610 mm
Media Feeders 1 x automatic – 1 roll – Roll (24 in)
Media Size Class Other
Media Sizes A1 (23.4 in x 33.1 in), Roll (25.4 – 61 cm)
Media Type Other, Plain paper
Power
Electric Current Required 3.4 A
Frequency 50/60 Hz
Power Consumption Operational 75 W
Power Device Type Power supply
Required Voltage AC 110-240 V
Sleep-Mode Power Consumption 2 W
Standby Power Consumption 0.3 W
Software
Software Type Epson Device Admin, Epson Edge Dashboard, Epson Media Installer, Epson Print Admin, EpsonNet Config SE, EpsonNet Print, EpsonNet Setup, LFP Accounting Tool, Software/Firmware updaters, Windows & Mac drivers
Technical Information
Auto Paper Cutter Yes
Power Device Form Factor Internal
Language Emulation EPSON ESC/P Raster, HP GL/2, HP RTL
Max Operating Temperature 95°F
Min Operating Temperature 50°F
Operating Humidity 20 – 80% (non-condensing)
Media Type Bond paper, Continuous paper, Glossy paper, Matte paper, Plain paper, Poster board, Technical paper
Operating System Required macOS 10.9.5 or later, macOS 11 or later, Windows XP (32/64-bit), Vista, 7, 8, 8.1, 10, Windows Server 2003 R2/SP2 or later, Server 2008, 2008 R2, 2012, 2012 R2, 2016, 2019
Sound Emission (Operating) 49.6 dBA
Product Information
Built-in Devices 4.3″ LCD touch screen
Office Machine Type Printer
Printer Product Type Large-format printer
Scanner Functionality None
Printer Functions Printer
Packaged Quantity 1
Print Technology Inkjet
Printer Features Borderless printing
Included Items
Consumables Included 1 x borderless maintenance box, 1 x cyan (240 ml), 1 x magenta (240 ml), 1 x matte black (240 ml), 1 x photo black (240 ml), 1 x red (240 ml), 1 x yellow (240 ml)
Printer Accessories Included Roll adapter, Start here poster
Dimensions & Weight
Height 38 in
Width 53.9 in
Depth 20 in
Weight 253.53 lbs
Physical Characteristics
Color Category Black, White
Certifications & Listings
Compliant Standards FCC Class B, NRTL, RoHS, UL/CSA 62368-1
Energy Star Yes
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
