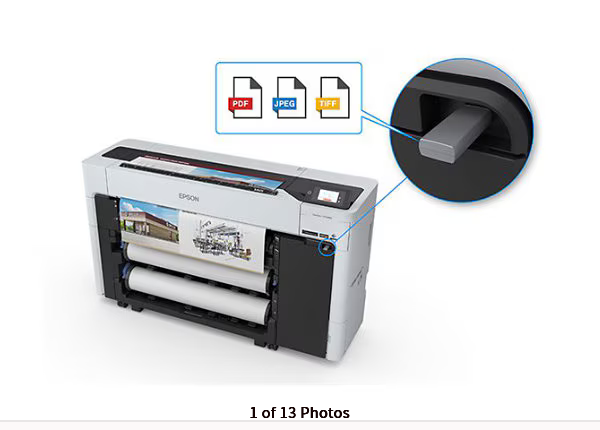

Epson SureColor T5770DM – multifunction printer – color


Quick tech specs

  • 36″ multifunction printer
  • ink-jet
  • Gigabit LAN, USB 3.0, USB host, Wi-Fi(ac)
  • color
  • Roll (36 in x 300 ft) (media)

AED67,799.00

The all-in-one SureColor T5770DM is the multifunction printer features an integrated 36″ wide dual-light scanner that enables both high-speed scanning, at up to 10 inches per second (black-and-white) and 4.5 inches per second (color), and copying for documents up to 36″ wide. What’s more, there is no additional footprint vs. single-function T5770 Series printers. The scanner’s dual light source reduces the appearance of wrinkles on the original document, and predefined modes help optimize scan quality based on image type. With a compact design that includes full front operation, the T5770DM fits where other printers don’t.

The T5770DM delivers A1/D-size prints in as fast as 16 seconds and features integrated wireless connectivity, so you can easily print from virtually anywhere in your home or office as well as scan a variety of file formats to your mobile device using the Epson Smart Panel3 app. Additionally, the printer’s vibrant UltraChrome XD3 six-ink set with dedicated Red Ink opens the door to both an extraordinary color gamut for a production printer and rich red branding colors. And simple, carefree operation combined with new levels of versatility and media flexibility helps users do more using less space – all with a low total cost of ownership. Add it all up, and the T5770DM is not just a one-of-a-kind printer – it’s the new benchmark in high-speed CAD and graphics.

SKU: SCT5770DM Category: Tag:
Specification Details
Brand Epson
Product Line Epson SureColor
Model T5770DM
Manufacturer Epson UMRP

Memory

Specification Details
RAM Installed 9 GB

Connectivity

Specification Details
Connection Availability Yes
Interface Gigabit LAN, USB 3.0, USB host, Wi-Fi(ac)
Interface Required 1 x Gigabit LAN, 1 x USB 3.0, 1 x USB host

Printing

Specification Details
Color 6-ink
Image Enhancement Technology Variable Sized Droplet Technology
Ink Cartridge Configuration 6 cartridges (C, M, Y, R, Photo Black, Matte Black)
Ink Palette Supported Cyan, Magenta, Yellow, Red, Photo Black, Matte Black
Ink Type Epson UltraChrome XD3 Ink
Inkjet Technology Epson PrecisionCore MicroTFP
Max B/W Print Resolution 2400 x 1200 dpi
Max Color Print Resolution 2400 x 1200 dpi
Max Print Size Roll (36 in x 300 ft)
Max Resolution Class (B/W & Color) 2400 x 1200 dpi
Minimum Ink Droplet Size 3.5 pl
Nozzle Configuration 6 Ɨ 1600 nozzles
Photo Printing Yes
Print Output Type Color
Printer Drivers/Emulations Adobe PostScript 3, EPSON ESC/P-R, PDF 1.7
Wireless Print Technology Ready Yes

Scanning

Specification Details
Interpolated Resolution 2400 x 2100 dpi
Optical Resolution 600 dpi
Scan Element CIS

Copying

Specification Details
Max Copy Resolution 600 dpi
Max Copying Resolution Color 600 dpi
Max Document Enlargement 755%
Max Document Reduction 25%
Maximum Copies 99

Media Types & Handling

Specification Details
Borderless Photo Sizes Roll (10″, 11.8″, 16″, 17″, 20″, 24″, 36″)
Document & Media Handling Input tray – 2 rolls
Large Format Printer Size 36″ (914 mm)
Max Media Weight 27 lbs
Media Size Class Other
Media Thickness Range Up to 0.06 in
Media Type Film/transparencies, Photo paper, Plain paper, Other
Supported Media Sizes 8″x8″, A0, A1, Roll (10 in – 36 in x 300 ft)
Supported Media Types Bond, Coated, Film, Glossy, Matte, Photo, Plain, Poster board, Recycled, Tracing paper

Display & Graphics

Specification Details
Display Diagonal Size 4.3″ (10.9 cm)
Features Touchscreen

Power

Specification Details
Frequency Required 50/60 Hz
Power Consumption (Operational) 90 W
Power Consumption (Standby) 44 W
Power Consumption (Sleep) 2 W
Voltage Required AC 120/230 V

Software

Specification Details
Included Software Drivers & Utilities, EpsonNet Config, EpsonNet Print, EpsonNet Setup, LFP Accounting Tool
Operating System Supported macOS 10.9.5+, macOS 11+, Windows XP (32/64), Vista, 7, 8, 8.1, 10, Windows Server 2003–2019

Technical Information

Specification Details
Max Operating Temperature 95°F
Min Operating Temperature 50°F
Operating Humidity 20–80% (non-condensing)
Sound Emission (Idle) 6.6 dBA
Sound Emission (Operating) 49.6 dBA

Product Information

Specification Details
Office Machine Type Printer / Copier / Scanner
Printer Functions Copier, Printer, Scanner
Office Machine Features Auto take-up reel, Scan to mobile, Scan to PC, Scan to USB, Scan to network folder
Packaged Quantity 1
Print Technology Inkjet
Speed Details Printing: 0.3 min/page (A1/D), 0.5 min/page (A0); Scanning: 270 in/min color (200 dpi), 600 in/min B/W (200 dpi)

Included Items

Specification Details
Consumables Included 6 ink cartridges (C, M, Y, R, Photo Black, Matte Black)
Accessories Included 2 roll media adapters, Maintenance box

Dimensions & Weight

Specification Details
Height 39 in
Width 65 in
Depth 20 in
Weight 330.69 lbs

Physical Characteristics

Specification Details
Color Category Black, White

Certifications & Listings

Specification Details
Compliant Standards FCC Class B, NRTL, RoHS, UL/CSA 62368-1
ENERGY STAR Certified Yes
EPEAT Compliant No
TCO Certified No
