Epson delivers a first-of-its-kind design that shatters expectations and redefines capability, versatility and efficiency for its class: the SureColor T5770DR. With a compact footprint and all-front operation, the T5770DR fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, producing technical drawings at production-class speeds with A1/D-size prints in as little as 16 seconds. Its innovative six-ink set with dedicated Red Ink opens the door to an extraordinary color gamut for a production printer as well as rich red branding colors. And simple, carefree operation combined with new levels of media flexibility helps users do more using less space – all with a low total cost of ownership (TCO). Add it all up, and this is not just a one-of-a-kind printer – it’s the new benchmark in high-speed CAD and graphics.
Printers & Supplies

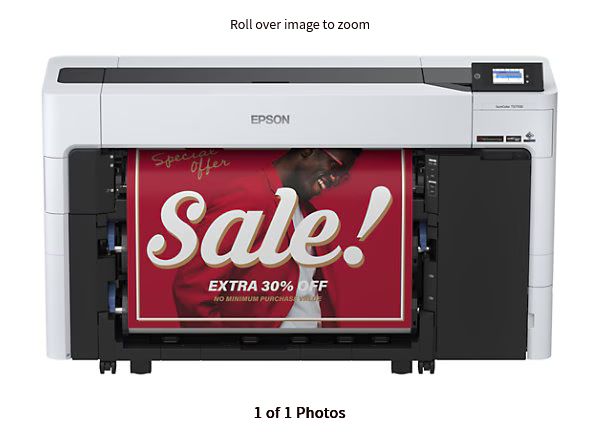

Epson SureColor T5770DR – large-format printer – color – ink-jet
Quick tech specs
- 36″ large-format printer
- ink-jet
- Gigabit LAN, USB 3.0, Wi-Fi(ac)
- color
- – 2400 x 1200 dpi
- cutter
AED38,399.00
Overview |
Brand | Epson |
Product Line | Epson SureColor |
Model | T5770DR |
Manufacturer | Epson UMRP |
Memory |
RAM Installed | 4 GB |
Network & Communication |
Product Type | Print server |
Connectivity |
Interface | Gigabit LAN, USB 3.0, Wi-Fi(ac) |
Interface Required Connections | 1 x Gigabit LAN ā RJ-45, 1 x USB 3.0 ā 9 pin USB Type B |
Printing |
Color | 6-ink |
Image Enhancement Technology | EPSON Variable-sized Droplet Technology |
Ink Cartridge Configuration | 6 cartridges (Cyan, Magenta, Yellow, Red, Photo Black, Matte Black) |
Ink Palette Supported (Colors) | Cyan, Magenta, Yellow, Red, Photo Black, Matte Black |
Ink Type | Epson UltraChrome XD3 Ink |
Inkjet Technology | Epson PrecisionCore MicroTFP |
Max B/W Print Resolution | 2400 x 1200 dpi |
Max Color Print Resolution | 2400 x 1200 dpi |
Max Resolution Class B/W | 2400 x 1200 dpi |
Max Resolution Class Color | 2400 x 1200 dpi |
Max H-Document Size | 36 in |
Max Print Length | 298 ft |
Max Print Size | Roll (36 in) |
Media Thickness Range | Up to 0.06 in |
Min H-Document Size | 10 in |
Minimum Ink Droplet Size | 3.5 pl |
Mobile Device Printing | Epson Cloud Solution PORT |
Nozzle Configuration | 6 x 1600 nozzles |
Print Output Type | Color |
Wireless Print Technology | Wired, Wireless |
Wireless Print Technology Ready | Yes |
Media Types & Handling |
Large Format Printer Size | 36″ |
Large Format Printer Size (metric) | 914 mm |
Media Feeders | 1 x manual ā 1 roll (36 in) |
Media Size Class | Other |
Media Sizes | Roll (25.4 ā 91.4 cm), Roll (36 in) |
Media Type | Other, Plain paper |
Power |
Frequency | 50ā60 Hz |
Power Consumption Operational | 80 W |
Power Device Type | Power supply |
Required Voltage | AC 110ā240 V |
Sleep-Mode Power Consumption | 2 W |
Software |
Software Type | EpsonNet Config, EpsonNet Print, EpsonNet Setup |
Technical Information |
Auto Paper Cutter | Yes |
Power Device Form Factor | Internal |
Language Emulation | EPSON ESC/P Raster, HP-GL/2, HP RTL, PDF 1.7, PostScript 3 |
Max Operating Temperature | 95 °F |
Min Operating Temperature | 50 °F |
Operating Humidity | 20ā80% (non-condensing) |
Media Type | Bond paper, Continuous paper, Glossy paper, Matte paper, Plain paper, Technical paper |
Operating System Required | macOS 11 or later, macOS X 10.9.5 or later, Windows Server 2003ā2019, Windows Vista / 7 / 8 / 8.1 / 10, Windows XP (32/64-bit) |
Sound Emission (Operating) | 49.6 dBA |
Product Information |
Built-in Devices | 4.3-inch LCD touchscreen |
Office Machine Type | Printer |
Printer Product Type | Large-format printer |
Printer Functions | Printer |
Packaged Quantity | 1 |
Print Technology | Inkjet |
Included Items |
Consumables Included | 6 x ink cartridges (Cyan, Magenta, Matte Black, Photo Black, Red, Yellow ā 240 ml each) |
Printer Accessories Included | 2 roll adapters |
Dimensions & Weight |
Height | 39 in |
Width | 65 in |
Depth | 20 in |
Weight | 302.03 lbs |
Physical Characteristics |
Color Category | Black, White |
Certifications & Listings |
Compliant Standards | FCC Class B certified, NRTL, RoHS, UL/CSA 62368-1 |
Energy Star | Yes |
ENERGY STAR Certified | No |
EPEAT Compliant | No |
TCO Certified | No |
Energy & Performance |
Standby Power Consumption | 0.3 W |
