Epson delivers a first-of-its-kind design that redefines speed, versatility and efficiency for its class: the SureColor T7770DL. Having the smallest footprint in its class – up to 25% smaller than its competition – and full-front operation means the T7770DL fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, generating technical drawings at production-class speeds over 1,400 ft./hr., A1/D-size prints in as little as 16 seconds, and graphics at speeds up to 300 ft./hr. Its innovative UltraChrome XD3 six-ink set with dedicated Red Ink opens the door to both an extraordinary color gamut for a production printer and rich red branding colors. This high-quality printer provides over double the ink capacity of previous generations for a remarkably low ink cost per milliliter, as well as helps minimize waste when compared to Epson SureColor T-Series cartridge systems. And simple, carefree operation combined with new levels of versatility and media flexibility helps users do more using less space – all with a low total cost of ownership. Add it all up, and this is not just a one-of-a-kind printer: it’s the new benchmark in high-speed CAD and graphics.
		Printers & Supplies

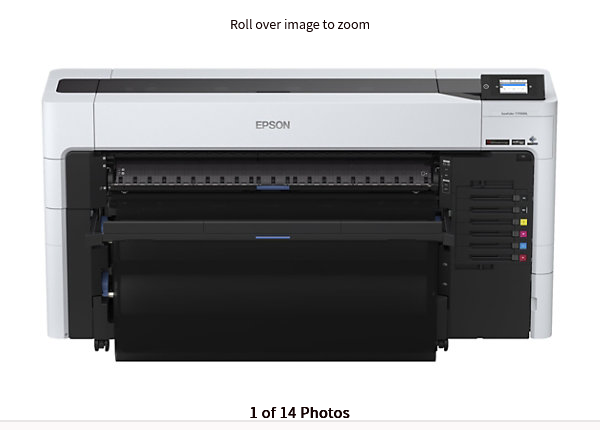

			Epson SureColor T7770DL – large-format printer – color – ink-jet
Quick tech specs
- 44″ large-format printer
- ink-jet
- up to 1399.3 sq.ft/hour (mono) / up to 1399.3 sq.ft/hour (color)
- USB 3.0, Gigabit LAN, Wi-Fi(ac)
- color
- – 2400 x 1200 dpi
- capacity: 2 rolls
- cutter
AED56,699.00
| Category | Specification |
|---|---|
| Overview | |
| Brand | Epson |
| Product Line | Epson SureColor |
| Model | T7770DL |
| Manufacturer | Epson UMRP |
| Memory | |
| RAM Installed | 4 GB |
| Network & Communication | |
| Product Type | Print server |
| Connectivity | |
| Interface | Gigabit LAN, USB 3.0, Wi-Fi(ac) |
| Interface Required Connections | 1 x Gigabit LAN, 1 x USB 3.0 |
| Printing | |
| Borderless Photo Sizes | Roll (10, 13, 16, 17, 20, 24, 36, 44 in) |
| Color | 6-ink |
| Image Enhancement Technology | EPSON Variable-sized Droplet Technology |
| Ink Cartridge Configuration | 6 individual ink tanks |
| Ink Palette Supported | Cyan, Magenta, Yellow, Red, Photo Black, Matte Black |
| Ink Type | Epson UltraChrome XD3 Ink |
| Inkjet Technology | Epson PrecisionCore MicroTFP |
| Max B/W Print Resolution | 2400 x 1200 dpi |
| Max Color Print Resolution | 2400 x 1200 dpi |
| Max Color Print Speed | 1399.3 sq.ft/hour |
| Max Mono Print Speed | 1399.3 sq.ft/hour |
| Max Print Size | Roll (44 in) |
| Max H-Document Size | 44 in |
| Min H-Document Size | 8 in |
| Min V-Document Size | 8 in |
| Media Capacity | 2 rolls |
| Media Thickness Range | up to 0.06 in |
| Minimum Ink Droplet Size | 3.5 pl |
| Nozzle Configuration | 6 x 1600 nozzles |
| Print Output Type | Color |
| Print Speed | Up to 0.3 min/page (A1), Up to 1399.3 sq.ft/hour (B0), Up to 300.3 sq.ft/hour |
| Wireless Print Technology | Wired, Wireless |
| Wireless Print Technology Ready | Yes |
| Media Types & Handling | |
| Large Format Printer Size | 44″ (1118 mm) |
| Media Feeders | 2 x manual – Roll (44 in) |
| Media Sizes | A1 (23.4 x 33.1 in), B0 (39.37 x 55.67 in), Roll (25.4 ā 111.8 cm) |
| Media Type | Continuous paper, Plain paper, Poster board, Other |
| Power | |
| Frequency | 50/60 Hz |
| Power Consumption (Operational) | 75 W |
| Sleep-Mode Power Consumption | 2 W |
| Required Voltage | AC 110-240 V |
| Power Device Type | Power supply |
| Software | |
| Software Type | Drivers & Utilities |
| Technical Information | |
| Auto Paper Cutter | Yes |
| Language Emulation | Adobe PostScript 3, EPSON ESC/P Raster, HP GL/2, HP RTL, PDF 1.7 |
| Max Operating Temperature | 95°F |
| Min Operating Temperature | 50°F |
| Operating Humidity | 20 – 80% (non-condensing) |
| Operating System Required | Windows XPā11, Windows Server 2003ā2019, macOS 10.9.5 or later, macOS 11+ |
| Sound Emission (Operating) | 49.6 dBA |
| Product Information | |
| Built-in Devices | 4.3″ LCD touch screen |
| Office Machine Type | Printer |
| Printer Product Type | Large-format printer |
| Scanner Functionality | None |
| Printer Functions | Printer |
| Packaged Quantity | 1 |
| Print Technology | Inkjet |
| Printer Features | Auto take up reel, Replaceable Ink Pack System (RIPS) |
| Included Items | |
| Consumables Included | 1 x maintenance box |
| Printer Accessories Included | 2 roll adapters, Start here poster, USB stick |
| Dimensions & Weight | |
| Height | 38.4 in |
| Width | 72.8 in |
| Depth | 19.6 in |
| Weight | 363.76 lbs |
| Physical Characteristics | |
| Color Category | Black, White |
| Certifications & Listings | |
| Compliant Standards | FCC Class B, NRTL, RoHS, UL/CSA/EN 62368-1 |
| Energy Star | Yes |
| ENERGY STAR Certified | No |
| EPEAT Compliant | No |
| TCO Certified | No |
| Energy & Performance | |
| Standby Power Consumption | 32 W |
