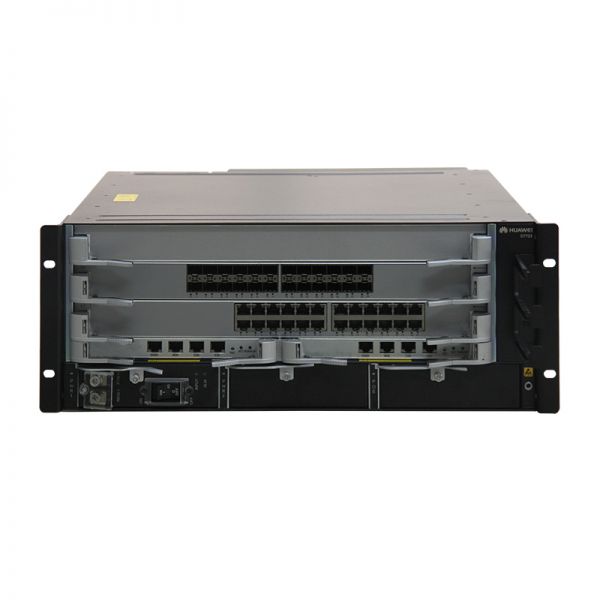

ES0Z1B03ACS0 – Huawei S7700 Series switch


Model: ES0Z1B03ACS0 – Huawei S7700 Series switch
Detail:
S7703 Basic Engine AC Bundle(Including Assembly Chassis,MCUA Main Board*2,800W AC Power*2)

AED8,999.00

ES0Z1B03ACS0 is the Huawei S7703 Basic Engine AC Bundle(Including Assembly Chassis,MCUA Main Board*2,800W AC Power*2).

Quick Specs

Table 1 shows the Quick Specs.

Product Code ES0Z1B03ACS0
Switching Capacity 1.92 Tbit/s
Forwarding Performance 1,440 Mpps
Redundancy Design Supervisors, Power modules, CMUs, Fans trays
Buffer Capacity 200 ms per Port
Pack Weight
(kg)
21.8
Pack Volume
(m^3)
0.124
Pack Dimension
(D*W*H mm)
652*595*322
Net Dimension
(D*W*H mm)
489*442*175



Note:

ā‘  Three service cards, including:

Ā·Open Service Platform Unit
Ā·100M Interface Card
Ā·1000M Interface Card
Ā·GE/10GE Interface Card
Ā·10GE Interface Card
Ā·40GE Interface Card
Ā·40GE/100GE Interface Card
Ā·100GE Interface Card
NOTE:

The cards supported by a switch depends on the software version.

ā‘” TwoĀ MPUs
ā‘¢ A pair of mounting brackets

NOTE:

The mounting brackets are used to secure the chassis in the cabinet.

ā‘£ TwoĀ power modules
⑤ One PoE power modules

In versions earlier than V200R006C00:

Ā·800 W AC Power Module
Ā·2200 W AC Power Module
Ā·In V200R006C00 and later versions:
Ā·2200 W DC Power Module
Ā·800 W AC Power Module
Ā·2200 W AC Power Module

ā‘„ Front ESD jack

NOTE:

The ground terminal of an ESD wrist strap can be inserted in this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.

⑦ Cable management frames

NOTE:

Cable management frames are used to route cables.



Note:

ā‘  OneĀ Fan Module
ā‘” Ground screw

NOTE:

The ground screw is used to ground the chassis.

ā‘¢ Rear ESD jack

NOTE:

The ground terminal of an ESD wrist strap can be inserted in this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.

ā‘£. Air filter

NOTE:

The air filter prevents dust from entering the chassis.



ES0Z1B03ACS0 Specifications

Switching Capacity 1.92 Tbit/s
Forwarding Performance 1,440 Mpps
Redundancy Design Supervisors, Power modules, CMUs, Fans trays
Wireless Management Native AC, wired and wireless convergence

AP access control, AP region management, and AP profile management

Radio profile management, unified static configuration, and centralized dynamic management

Basic WLAN services, QoS, security, and user management

AC deployment on different network layers

User Management Unified management of wired and wireless users

802.1x, MAC, and portal authentications

Charging based on traffic volume, online duration, and destination addresses (DAA mode)

User authorization based on user groups, domains, and time ranges

iPCA Adds marks on service packets in order to measure the number of lost packets and packet loss ratios in real time with zero payload

Measures the number of lost packets and packet loss ratios at the network and device levels on Layer 2 and Layer 3 networks

SVF 2.0 256 clients (access switches) and 4,096 APSĀ virtualized into a single device

2-level AS structure

Unified management on Huawei and non-Huawei devices

Routing IPv4 static routes, RIP, OSPF, IS-IS, and BGP4

IPv6 static routes, RIPng, OSPFv3, IS-ISv6, and BGP4+

IPv4/IPv6 equal-cost routes, policy routing, route policy

IPv4 and IPv6 stack

Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, and ICMPv6

IPv4-to-IPv6 transition technologies, such as IPv6 manual tunnel, 6 to 4 tunnel, ISATAP tunnel, GRE tunnel, and IPv4-compatible automatic tunnel

Buffer Capacity 200 ms per Port
Pack Weight
(kg)
21.8
Pack Volume
(m^3)
0.124
Pack Dimension
(D*W*H mm)
652*595*322
Net Dimension
(D*W*H mm)
489*442*175
