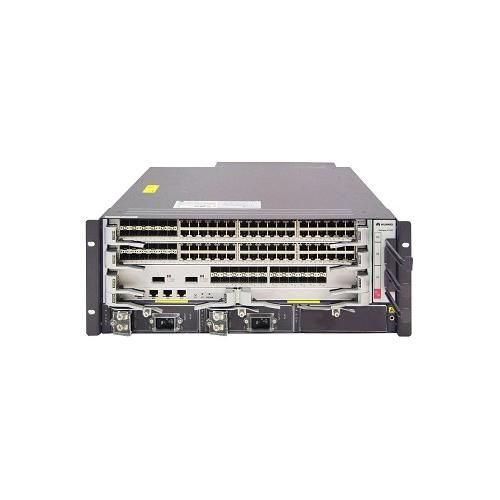

ES1B03SACM0N Huawei S7700 Series switch

Add to Wishlist
Model: ES1B03SACM0N Huawei S7700 Series switch
Detail:
S7703 Basic Engine AC Bundle (Including Assembly Chassis,MCUA Main Board*1,800W AC Power*2,48-Port

AED48,799.00

Add to Wishlist

ES1B03SACM0N is the Huawei S7703 Basic Engine AC Bundle (Including Assembly Chassis, MCUA Main Board*1,800W AC Power*2,48-Port 10/100/1000BASE-T Interface Card(FA,RJ45)*1,2-Port 10GBASE-X Interface Card(EA,XFP)*1).

Quick Specs

Ā  Ā Table 1 shows the Quick Specs.

Product Code ES1B03SACM0N
Forwarding Performance 1,440 Mpps
Switching Capacity 1.92 Tbit/s
Service Slots 3
Redundancy Design Supervisors, Power modules, CMUs, Fans trays
MPU Slots 2
LPU slots 3
System power supply slots 2
Fan slots 1
PoE power supply slots 1
Maximum PoE Power 2,200W
Maximum power consumption (fully loaded) 1000 W
Working Voltage DC: ā€“38.4V to ā€“72V

AC: 90V to 290V
Dimensions (W x D x H, excluding rack-mounting brackets) With cable management frames: 442 mm x 585 mm x 175 mm (17.4 in. x 23.0 in. x 6.9 in. (4 U))

Without cable management frames: 442 mm x 489 mm x 175 mm (17.4 in. x 19.3 in. x 6.9 in. (4 U))
Weight (empty/fully loaded) 10 kg/22 kg (22.0 lb/48.5 lb)

Product Details



Note:

ā‘  Three service cards, including:

  • Open Service Platform Unit
  • 100M Interface Card
  • 1000M Interface Card
  • GE/10GE Interface Card
  • 10GE Interface Card
  • 40GE Interface Card
  • 100GE Interface Card
ā‘” Two MPUs
ā‘¢ Ā A pair of mounting brackets
ā‘£ Two power modules
ā‘¤ Ā One PoE power modules
ā‘„ Front ESD jack
ā‘¦ Cable management frames





Note:

ā‘  One Fan Module
ā‘” Ground screw
ā‘¢ Rear ESD jack
ā‘£ Air filter



SKU: ES1B03SACM0N Category: Tags: ,

ES1B03SACM0N Specifications
Switching Capacity 1.92 Tbit/s
Forwarding Performance 1,440 Mpps
Service Slots 3
Redundancy Design Supervisors, power modules, CMUs, fans trays
Wireless Network Management Native AC
AP access control, AP region management, and AP profile management
Radio profile management, uniform static configuration, and centralized dynamic management
Basic WLAN services, QoS, security, and user management
Deployment of ACs on different network layers
User Management Unified user management
802.1x, MAC address, and Portal authentication
Traffic- and time-based accounting
User authorization based on user groups, domains, and time ranges
VLAN Three types of interfaces: access, trunk, and hybrid
Default VLAN
VLAN switching
QinQ and selective QinQ
MAC address-based VLAN assignment
ARP 256K ARP entries
MAC Address 1M MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
Limit on the number of MAC addresses learned on ports and VLANs
Ring Protection STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
SEP
BPDU protection, root protection, and loop protection
BPDU tunnel
ERPS (G.8032)
IP Routing 1M IPv4 routing entries
IPv4 routing protocols, such as RIP v1/v2, OSPF, BGP, and IS-IS
IPv6 dynamic routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+
Multicast 128,000 multicast routing entries
IGMP v1/v2/v3 and IGMP v1/v2/v3 snooping
PIM-DM, PIM-SM, and PIM-SSM
MSDP and MBGP
Fast leave
Multicast traffic control
Multicast querier
Multicast packet suppression
Multicast CAC
Multicast ACL
MPLS Basic MPLS functions
MPLS OAM
MPLS-TE
MPLS VPN/VLL/VPLS
CSS Switch Fabric Clustering CSS Switch Fabric Clustering (S7706 and S7712)
Service Port Clustering Service Port Clustering (S7706 and S7712)
Reliability LACP and E-Trunk between devices
VRRP and BFD for VRRP
BFD for BGP/IS-IS/OSPF/static route
NSF and GR for BGP/IS-IS/OSPF/LDP
TE FRR and IP FRR
HSR
Ethernet OAM (IEEE 802.3ah and 802.1ag)
ITU-Y.1731
DLDP
QoS 256K ACLs
Traffic classification based on Layer 2 protocol packet header, Layer 3 protocol information, Layer 4 protocol information, and 802.1p priority
ACL, CAR, re-marking, and scheduling
Queue scheduling algorithms including PQ, WRR, DRR, PQ + WRR, and PQ + DRR
Congestion avoidance mechanisms, such as WRED and tail drop
HQoS
Traffic shaping
Configuration and Maintenance Zero-Touch Provisioning
Console and SSH terminals
Network management protocols, such as SNMP v1/v2c/v3
File uploading and downloading using FTP and TFTP
BootROM upgrade and remote upgrade
Hot patches
User operation logs
Security and Management 802.1x authentication and portal authentication
MACSec
NAC
RADIUS and HWTACACS authentication
Different user levels for commands, preventing unauthorized users from using certain commands
Defense against DoS attacks, TCP SYN Flood attacks, UDP Flood attacks, broadcast storms, and heavy traffic attacks
Ping and traceroute
RMON
Service Chain
Time synchronization IEEE 1588v2
SyncE
Value-added Service* Firewall
NAT
NetStream
IPSec
Load balancing
IPS
Interoperability Supports VBST (compatible with PVST/PVST+/RPVST)
Supports LNP (similar to DTP)
Supports VCMP (similar to VTP)
Energy Conservation IEEE 802.3az: Energy Efficient Ethernet (EEE)
Dimensions (W x D x H) 442 mm x 489 mm x 175 mm
Chassis Weight (empty) 10 kg
Working Voltage DC: ā€“38.4V to ā€“72V

AC: 90V to 290V
Maximum Power

Consumption of the Entire Equipment

 2,200W
Maximum PoE Power 2,200W
