Power Supply

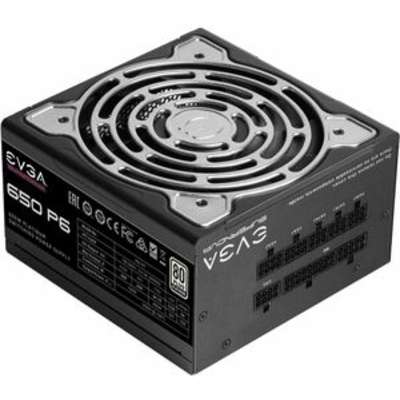

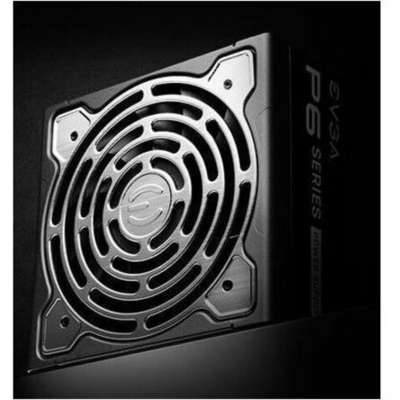

Evga PS 220-P6-0650-X1 SuperNova 650 P6 650W 80+Platinum Fully Modular

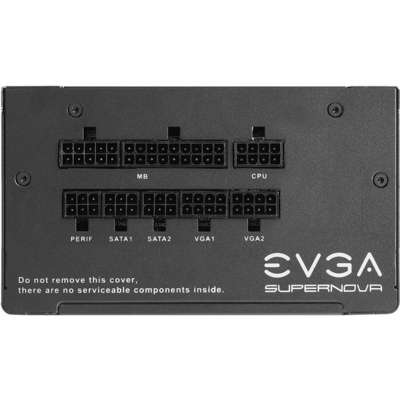

- Fully Modular to reduce clutter and improve airflow
- 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
- 100% Japanese Capacitors ensure long-term reliability
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Active Power Factor Correction
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), Dual OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

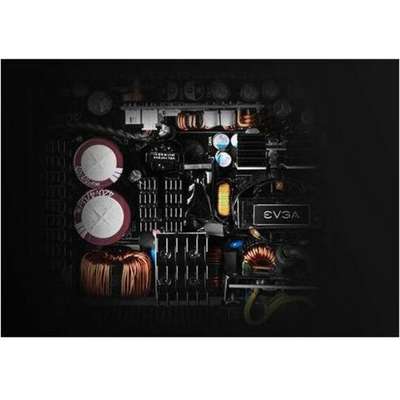

- Full-bridge LLC Resonant Converter and DC-DC design leads to tight voltage regulation and low ripple & noise
AED1,099.00
The EVGA SuperNOVA P6 power supplies feature a new platform design, using new materials and better layout placement to achieve greater efficiency with extremely low ripple and noise in an even smaller chassis. With a full-bridge, LLC Resonant Rectification, and DC-DC design, the SuperNOVA P6 provides rock-solid stability, uncompromising efficiency, and extremely tight voltage regulation.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | EVGA PS 220-P6-0650-X1 SuperNOVA 650 P6 650W 80+ Platinum Fully Modular |
| Manufacturer Part Number | 220-P6-0650-X1 |
| Product Line | SuperNOVA |
| Product Series | P6 |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V, EPS12V |
| Efficiency | 94% |
| Power Factor Correction | Active |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Diameter | 135 mm |
| Protection Type | Over Voltage, Under Voltage, Over Current, Over Power, Short Circuit, Over Temperature |
| Modular | Yes |
| Features | Compact |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 6 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCIe Connectors | 3 |
| Number of (4+4 pin) CPU Connectors | 1 |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC, 5 V DC, 12 V DC, 5 V SB, -12 V DC |
| Output Voltage Detail | 3.3 V DC @ 24 A 5 V DC @ 24 A 12 V DC @ 54.1 A 5 V SB @ 3 A -12 V DC @ 0.5 A |
| Output Power | 650 W |
| Reliability | |
| MTBF | 100,000 Hours |
| Physical Characteristics | |
| Form Factor | Internal, ATX |
| Height | 3.4″ |
| Width | 5.9″ |
| Miscellaneous | |
| Energy Efficiency Certification | 80 Plus Platinum |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | RoHS, Waste Electrical and Electronic Equipment Directive (WEEE) |
| Other Information | |
| Product Family | SuperNOVA P6 |
| Input Frequency | 60Hz |
