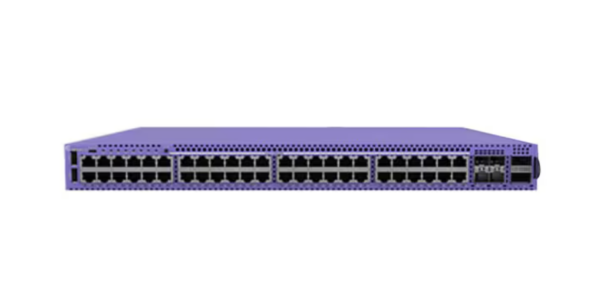

Extreme Networks 4220 48-Port Multi Gigabit PoE Switch

Add to Wishlist

Quick tech specs

  • Number of Ports: 48
  • 4x 1/10GB Uplink/Stack Ports
  • Highly Flexible Enterprise Layer 2 Wired Access Solution
  • Multi-Gigabit Ethernet Access Port
  • up to 90W PoE Power

39,999.00 د.إ

Add to Wishlist

Know your gear

The Extreme Networks 4220-8MW-40P-4X switch is engineered to meet the demands of modern network environments, offering a blend of performance, flexibility, and security. With its extensive array of ports, including 40 PoE+ and 8 PoE++ ports, this switch is capable of powering a wide range of devices while facilitating high-speed data transfer. Its robust performance metrics, including a 240 Gbps switching bandwidth and a 178.6 Mpps forwarding rate, ensure efficient data handling for busy networks.

Advanced features such as cloud management, Zero-touch provisioning, and Universal Zero Trust Network Access streamline network setup and maintenance, enhancing security and operational efficiency. The switch’s high PoE budget and support for redundant power supplies make it a reliable choice for powering critical devices in any network setup. Designed to withstand challenging environmental conditions and compliant with a broad set of standards, the Extreme Networks 4220-8MW-40P-4X is a durable, high-performance solution for today’s networking needs.

SKU: 4220-8MW-40P-4X Category: Tag:
Category Specification
Overview
Brand Extreme Networks
Product Line Extreme Networks 4000 series
Model 4220-8MW-40P-4X
Manufacturer Extreme Networks
Network & Communication
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3by, IEEE 802.3bz
Features 802.1x authentication, ACL support, Cloud managed, DHCP client, DHCP relay, IGMP snooping, Link Aggregation Group (LAG), LLDP support, Media Endpoint Discovery (LLDP-MED), Non-blocking architecture, Port Security, PVST+, Quiet mode, sFlow, Universal Zero Trust Network Access (UZTNA), VLAN support, ZTP
Form Factor Rack-mountable
Jumbo Frame Support Yes
Manageable Yes
Max Units In A Stack 8
PoE Budget 740 watt
Ports 48
Power Over Ethernet (PoE) PoE++
Product Type Switch
Remote Management DHCP
Routing Protocol IGMP, IGMPv2, IGMPv3, MLD, MSTP, PBR, RSTP, Static IP routing, STP
Stackable Stackable
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
QSFP Slots 1 Gigabit / 10 Gigabit SFP+ (uplink/stacking)
Connectivity
Interface Provided 1 x management (Gigabit LAN) RJ-45, 1 x micro-USB Type B console, 1 x serial (console) RJ-45, 1 x USB Type A, 4 x 1/10GBase-X SFP+ uplink/stacking, 40 x 10/100/1000Base-T RJ-45 PoE+ (30W), 8 x 1/2.5/5GBase-T RJ-45 PoE++ (90W)
Port Quantity 40
Port Type 10/100/1000Base-T (PoE+)
Ports Type (2nd) 1/2.5/5GBase-T (PoE++)
Power
Hot-Plug Hot-plug
Power Provided 950 watt
Power Supplies Installed 1
Power Supplies Supported 2
Redundant Power Supply Yes
Software
Software Type Base Software License
Technical Information
Humidity Range Storage 10 – 95% RH (non-condensing)
Max Operating Temperature 122°F
Max Storage Temperature 158°F
Min Operating Temperature 32°F
Min Storage Temperature -40°F
Operating Humidity 10 – 95% RH (non-condensing)
Product Information
Authentication Method RADIUS
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding rate: 178.6 Mpps, Stacking bandwidth: 40 Gbps, Switching bandwidth: 240 Gbps
Ports (2nd) Quantity 8
Ports (3rd) Quantity 4
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Weight 11.93 lbs
Width 17.4 inch
Depth 13 inch
Physical Characteristics
Color Category Purple
Certifications & Listings
Compliant Standards 2014/30/EU, 2014/35/EU, ACMA RCM, ANATEL, AS/NZS 60950-1, AS/NZS CISPR 32, ASTM D3580, BSMI, CAN/CSA C22.2 No. 60950-1, CDRH, China RoHS II (GB/T 26572-2011), CISPR 32 Class A, CQC, EAC, EMC, EN 300 386, EN 55032 Class A, EN 55035, EN 60825-1 Class 1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2, EN/ETSI 300 019-2-2 v2.3.1, EN/ETSI 300 019-2-3 v2.1.2, EN/ETSI 300 753 (1997-10), FCC CFR 47 Part 15 Class A, FCC CFR21 Part 1040.10, ICES-003 Class A, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 62368-1, KCC, NOM, NRCS, REACH 1907/2006/CE, RoHS, Taiwan RoHS CNS 15663 (2013.7), TEC, UL 60950-1, UL/CUL 62368-1, VCCI Class A, WEEE 2012/19/EU
