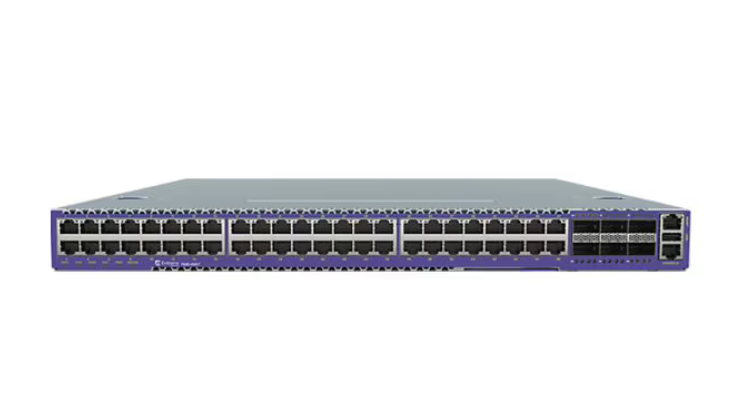

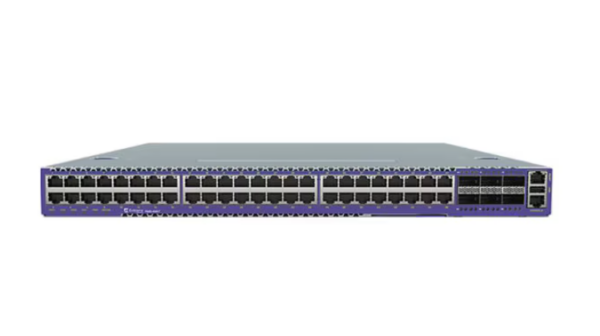

Extreme Networks 7520-48XT Switch with 48×10/1G Ports

Add to Wishlist

Quick tech specs

  • Includes 48×10/1G Ports

AED179,999.00

Add to Wishlist

Know your gear

The Extreme 7520 are purpose-built 48-port switches designed for high-performance aggregation and core applications. As a universal hardware platform, the 7520 provides end-to-end secure network segmentation, in addition to advanced policy capabilities, with a user-selectable choice of Extreme’s flagship switch operating systems. This makes the 7520 a uniquely flexible platform that can be deployed in a variety of aggregation and core environments.

The Extreme 7520 network hardware platform enables organizations to design networks that accommodate a variety of applications and east-west traffic patterns. With its high-density scale-out architecture, leading power efficiency, and airflow options, the 7520 platform delivers a cost-effective solution that optimizes power, cooling, and equipment room space, wherever your network operating center might be.

SKU: 7520-48XT-6C-AC-F Category: Tag:
Category Details
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching
Model 7520-48XT-6C
Manufacturer Extreme Networks
Memory
Memory Technology DDR4 SDRAM
RAM Installed 16 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3by
Features Non-blocking architecture, Wire speed forwarding, Zero-touch provisioning (ZTP)
Form Factor Rack-mountable
Manageable Yes
Max Units In A Stack 8
Ports 48
Product Type Switch
Remote Management CLI, HTTP, HTTPS
Stackable Yes
Status Indicators System
Subcategory Network hubs and switches
Switching Type 10 Gigabit Ethernet
Connectivity
Interface Provided 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 1 x USB Type A, 48 x 1/10Gbit LAN RJ-45, 6 x 40/100Gbit LAN QSFP28
Port Quantity 48
Port Type 1/10GBase-T
Ports Type (2nd) 40/100 Gigabit QSFP28
Power
Features Front-to-rear airflow
Frequency 50 – 60 hertz
Hot-Plug Yes
Power Provided 800 watt
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Optional
Required Voltage AC 100-140/200-240 volt
Software
Software Type Base Software License
Technical Information
Built-in Devices 128 GB SSD, 6 x fans
Humidity Range Storage 10 – 95% RH (non-condensing)
Max Operating Temperature 122°F (50°C)
Max Storage Temperature 158°F (70°C)
Min Operating Temperature 32°F (0°C)
Min Storage Temperature -40°F (-40°C)
Operating Humidity 10 – 95% RH (non-condensing)
Product Information
Airflow Direction Front to back airflow
Capacity Packet buffer size: 32 MB
Device Type Internal power supply
Packaged Quantity 1
Performance Average latency: 2400 ns, Forwarding rate: 1000 Mpps, Line rate: 2.16 Tbps, Switching capacity: 1.08 Tbps
Ports (2nd) Quantity 6
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 20.88 lbs
Width 17.3 inch
Depth 20.9 inch
Physical Characteristics
Color Category Purple
Certifications & Listings
Compliant Standards ACMA RCM, ANATEL, AS/NZS 60950-1, AS/NZS CISPR 32, ASTM D3580, BSMI, CAN/CSA C22.2 No. 60950-1 Second Edition, CB, CCC, CDRH, China RoHS SJ/T 11363-2006, CISPR 24 Class A, CISPR 32 Class A, EAC, EMC 2014/30/EU, EN 300 386, EN 55032 Class A, EN 60825-1 Class 1, EN 60950-1 Second Edition, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2 – Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 – Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 – Class 3.1e, EN/ETSI 300 753 (1997-10), EN55024, FCC CFR 47 Part 15 Class A, FCC CFR21 Part 1040.10, ICES-003 Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC/EN 61000-4-11, KCC, LVD 2014/35/EU, Mexico NOM, NRCS, REACH, RoHS 2011/65/EU, RoHS CNS 15663, UL 60950-1, UL/CUL 62368-1, VCCI Class A, WEEE 2012/19/EU
