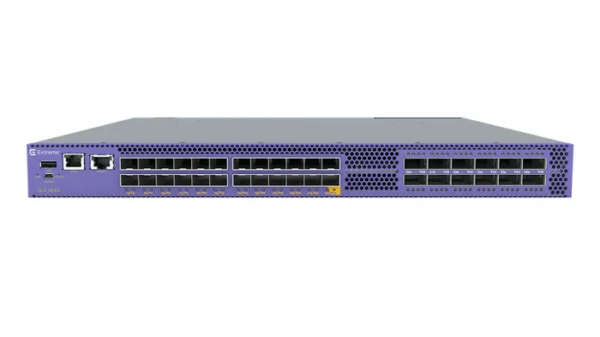

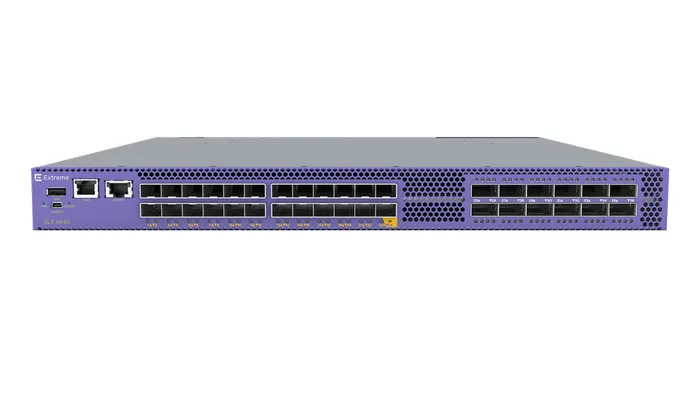

Extreme networks ExtremeRouting SLX 9640 None 1U Blue


ExtremeRouting SLX 9640, 24x 1G/10G SFP+, 4x QSFP28, 900 Gbps, 810 Mpps, 438.5x460x43 mm

366,099.00 د.إ

Next Generation Fixed Router The SLX 9640 is a high capacity 100 GbE and 10 GbE Router supporting flexible configuration mix of 100, 40, 25, 10 and 1 GbE. It provides up to 900 Gbps switch fabric capacity with up to 4M IPv4 and 800,00 IPv6 routes, concurrent in hardware and 6 GB of tunable, ultra-deep packet buffers in a 1U form factor. Visibility, Analytics, Management Integration into Extreme Management Center enables end to end management, monitoring, analytics and visibility of the entire network, from the network edge, to the data center and the cloud. It provides a true single pane of glass interface reducing administration, faster problem resolution and an end to end network view. Highly Flexible Architecture Designed for optimal operations, supporting diverse deployment options—such as Internet border, collapsed border routing and data center interconnect, and network packet broker aggregation deployments- that require deep buffering for lossless forwarding, advanced MPLS, Carrier Ethernet features or VXLAN network virtualization overlays, and greater bandwidth.

SKU: EN-SLX-9640-24S Categories: , Tag:
Feature Description
Quality of Service (QoS) support Y (Yes)
Basic switching RJ-45 Ethernet ports type None
SFP+ module slots quantity 24
Fiber optic connector QSFP28, SFP+
Power connector AC-in jack
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support Y (Yes)
Copper ethernet cabling technology 100BASE-FX, 100BASE-TX
Flow control support Y (Yes)
Link aggregation Y (Yes)
Spanning tree protocol Y (Yes)
Auto-negotiation Y (Yes)
Multiprotocol Label Switching (MPLS) Y (Yes)
VLAN support Y (Yes)
Number of VLANs 4096
Fiber ethernet cabling technology 1000BASE-X
MAC address table 640000 entries
Switching capacity 900 Gbit/s
Forwarding rate 810 Mpps
Jumbo frames support Y (Yes)
Jumbo frames 9216
Packet buffer memory 6000 MB
Access Control List (ACL) Y (Yes)
Security algorithms HTTPS, SNMP, SNMPv3, SSH, SSL/TLS
SSH/SSL support Y (Yes)
Authentication Port-based authentication
Multicast support Y (Yes)
Multicast protocols IGMP 1, IGMP 2, PIM-SM, PIM-SSM, Anycast RP PIM, BSR PIM, MCT
Routing protocols BGP, IS-IS, OSPF
Rack mounting Y (Yes)
Form factor 1U
Product colour Blue
Safety EN 60825-1, EN 60825-2, EN 60950-1, IEC 60950-1, ANSI/UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
List of RFCs 768, 791, 793, 826, 854, 894, 903, 950, 951, 1027, 1042, 1166, 1122, 1191, 1340, 1519, 1542, 1591, 1812, 1858, 2131, 2578, 2784, 3021, 3768, 4001, 4950, 5880, 5881, 5882, 5884, 1745, 1772, 1997, 2385, 2439, 2918, 3392, 3682, 4271, 4364, 4456, 4486, 4724, 6793, 5065, 5291, 5396, 5668, 5575, 8092
Harmonized System (HS) code 85176990
Power over Ethernet (PoE) N (No)
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -25 – 55 °C
Operating relative humidity (H-H) 5 – 90%
Storage relative humidity (H-H) 0 – 95%
Operating altitude 0 – 2012 m
Non-operating altitude 0 – 4500 m
Width 438.5 mm
Depth 460 mm
Height 43 mm
