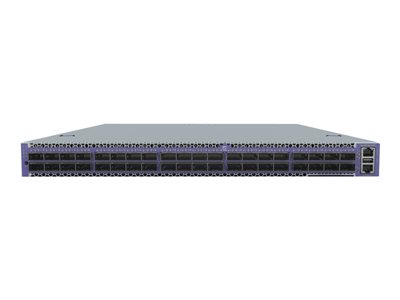

Extreme Networks ExtremeRouting SLX9740-40C – router – rack-mountable
Tech overview
Extreme Networks ExtremeRouting SLX9740-40C – Router – 40-port switch – 40 Gigabit LAN, 100 Gigabit Ethernet, 25 Gigabit LAN, 50 Gigabit LAN – back to front airflow – rack-mountable
AED507,699.00
SLX9740 are high-density, fixed form factor routers that deliver the scale and performance needed to address the explosive growth in network bandwidth, devices and services. This platform provides carrier-class advanced features.
| Specifications | |
|---|---|
| General | |
| Device Type | Router – 40-port switch (integrated) |
| Enclosure Type | Back to front airflow rack-mountable – 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet |
| Performance | |
| Switching capacity (full duplex) | 4 Tbps |
| Forwarding performance (full duplex) | 2 Gpps |
| Capacity | |
| Packet buffer size | 8 GB |
| MAC addresses | 190000 |
| VLANs supported | 4096 |
| IPv4 ACL entries | 4000 |
| IPv6 ACL entries | 2000 |
| L2 ACL entries | 2000 |
| Maximum members in a standard LAG | 64 |
| Maximum number of MCT switches | 2 |
| Bridge domains | 2 |
| IPv4 routes (Unicast) | 3500000 |
| IPv6 routes (Unicast) | 3500000 |
| IPv4 routes (ARP entries) | 95000 |
| IPv6 routes (ARP entries) | 95000 |
| QoS priority queues per port | 8 |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | |
| OSPF, IS-IS, BGP, MPLS | |
| Remote Management Protocol | |
| SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SCP, NETCONF, RESTCONF, SFTP, YANG | |
| Features | |
| MPLS support | Yes |
| IPv6 support | Yes |
| IPv4 support | Yes |
| sFlow v5 | Yes |
| Redundant fans | Yes |
| OpenFlow support | Yes |
| 6 fans | Yes |
| VXLAN tunnel endpoints (VTEP) support | Yes |
| Ethernet Virtual Private Network (EVPN) | Yes |
| Multi-Chassis Trunking (MCT) | Yes |
| 16GB packet buffer | Yes |
| Realtime network analytics | Yes |
| DDoS Protection | Yes |
| Compliant Standards | |
| (See below) | |
| Expansion / Connectivity | |
| Interfaces | LAN: 40 x 100Gb Ethernet – QSFP28 ¦ USB: 1 x 4 pin USB Type A ¦ Console: 1 x RJ-45 ¦ Management: 1 x RJ-45 |
| Power | |
| Power Device | Internal power supply – 1600 Watt |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Dimensions & Weight | |
| Width | 17.7 in |
| Depth | 25.2 in |
| Height | 1.7 in |
| Weight | 29.98 lbs |
