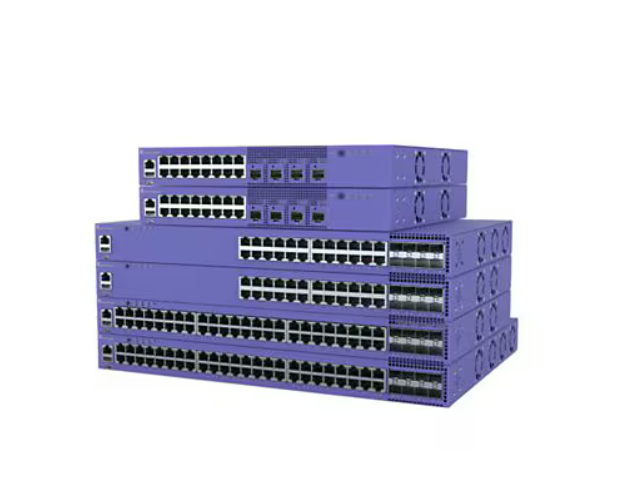

Extreme Networks ExtremeSwitching 5320-24T-8XE – switch – 24 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • Number of Ports: 24

20,799.00 د.إ

Add to Wishlist

Know your gear

Connect wired devices such as computers, laptops, routers, servers and printers to a local area network (LAN) with this Extreme Networks Ethernet Switch. This switch consists of 24 ports for ease of use.

SKU: 5320-24T-8XE Category: Tag:
Category Details
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching
Model 5320-24T-8XE
Manufacturer EXTREME NETWORKS
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az
Features Auto-sensing per device, Full duplex mode, Half duplex mode, MACsec support
Form Factor (Hubs & Switches) Rack-mountable
MAC Address Table Size 32,000 entries
Manageable Yes
Max Units in a Stack 8
Ports 24
Product Type Switch
Remote Management CLI
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
QSFP Slots SFP-DD (stackable)
Connectivity
Interface Provided 1 x console (micro-USB), 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 1 x USB, 24 x 10/100/1000 Base-T RJ-45 PoE – 30 W, 8 x 1/10GBase-X SFP+
Port Quantity 24
Port Type 10/100/1000
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+
Power
Power Supplies Installed 1
Voltage Required AC/DC AC
Software
Software Type Base Software License, ExtremeCloud IQ Pilot (1 year)
Technical Information
Humidity Range Storage 10 – 95% RH (non-condensing)
Max Operating Temperature 122°F
Max Storage Temperature 158°F
Min Operating Temperature 32°F
Min Storage Temperature -40°F
Operating Humidity 10 – 95% RH (non-condensing)
Product Information
Device Type Internal power supply
Packaged Quantity 1
Performance Aggregate bandwidth: 208 Gbps, Frame rate: 154.8 Mpps
Ports (2nd) Quantity 4
Ports (3rd) Quantity 2
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Weight 8.16 lbs
Width 17.3 inch
Depth 11 inch
Physical Characteristics
Color Category Purple
Certifications & Listings
Compliant Standards ACMA RCM, ANATEL, AS/NZS 60950-1, AS/NZS CISPR 32, BSMI, CCC, CDRH, CISPR 24 Class A, CISPR 32, CSA C22.2 No. 60950-1 Second Edition, EAC, EMC, EMC 2014/30/EU, EN 300 386, EN 55032 Class A, EN 60825-1 Class 1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 62368-1, EN55024, EN60950-1 (2nd Edition), FCC CFR21 Part 1040.10, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1 (CB Certificate), IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 62368-1 CB Scheme, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, KCC, LVD 2014/35/EU, Mexico NOM, NRCS, UL 60950-1, UL/CUL 62368-1, VCCI Class A
ENERGY STAR Certified No
