55,499.00 د.إ

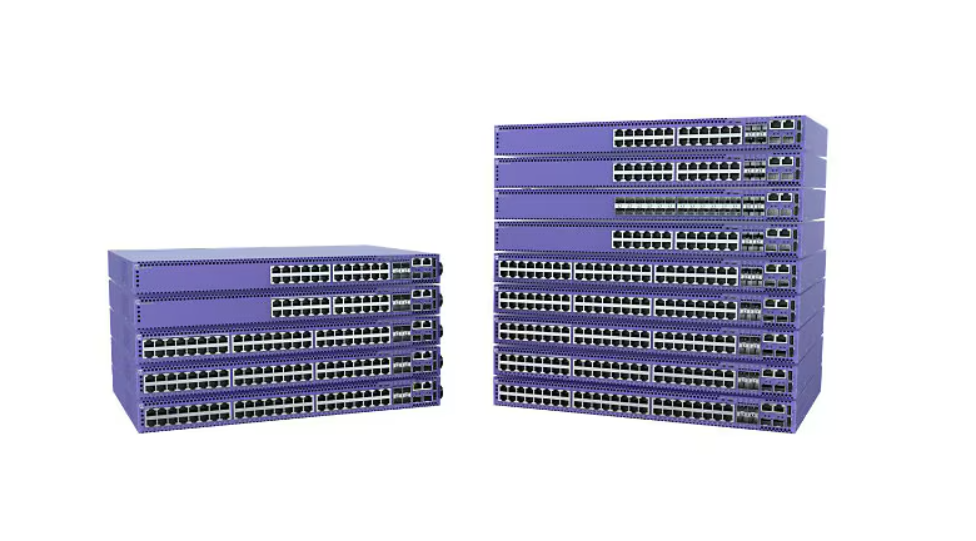

The high-performance, feature-rich, stackable Extreme Networks ExtremeSwitching 5420 Series Switch is designed for the next-generation digital enterprise. With 48 ports, it features both gigabit and multi-gigabit versions with up to 90-watt PoE enabling it to be deployed across a range of edge and wiring-closet environments. It offers fixed power supply with support for a second field-replaceable power supply, fixed fans and four 1/10 GB built-in uplink ports.
| Category | Specification |
|---|
| Overview |
| Brand | Extreme Networks |
| Product Line | Extreme Networks ExtremeSwitching 5420 Series |
| Model | 5420F-8W-16P-4XE |
| Manufacturer | EXTREME NETWORKS |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ae, IEEE 802.3at, IEEE 802.3bt |
| Features | Auto-sensing per device, Full duplex mode, Half duplex mode, MACsec support |
| Form Factor (Hubs & Switches) | Rack-mountable |
| MAC Address Table Size | 64K entries |
| Manageable | Yes |
| Max Units In A Stack | 8 |
| PoE Budget | 1874 watt |
| Ports | 48 |
| Power Over Ethernet (PoE) | PoE+ |
| Product Type | Switch |
| Remote Management | CLI |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Expansion Slots |
| QSFP Slots | 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Connectivity |
| Interface Provided | 1 x console (micro-USB), 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 16 x 10/100/1000 Base-T RJ-45 PoE++ – 90 W, 2 x network stack device SFP-DD, 2 x USB, 32 x 10/100/1000 Base-T RJ-45 PoE+ – 30 W, 4 x 1/10GBase-X SFP+ uplink |
| Port Quantity | 16 |
| Port Type | 10/100/1000 (PoE++) |
| Ports Type (2nd) | 10/100/1000 (PoE+) |
| Power |
| Frequency | 47 – 63 hertz |
| Power Provided | 1200 watt |
| Power Supplies Installed | 1 |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Optional |
| Required Voltage | AC 100-120/200-240 volt |
| Software |
| Software Type | Base Software License, ExtremeCloud IQ Pilot (1 year) |
| Technical Information |
| Encryption | 128-bit AES, 256-bit AES |
| Product Information |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Aggregate bandwidth: 256 Gbps, Frame rate: 190.5 Mpps |
| Ports (2nd) Quantity | 32 |
| Ports (3rd) Quantity | 4 |
| Ports (4th) Quantity | 2 |
| Ports (4th) Type | SFP-DD (stackable) |
| Dimensions & Weight |
| Height | 1.7 inch |
| Weight | 11.82 lbs |
| Width | 17.4 inch |
| Depth | 13 inch |
| Physical Characteristics |
| Color Category | Blue |
