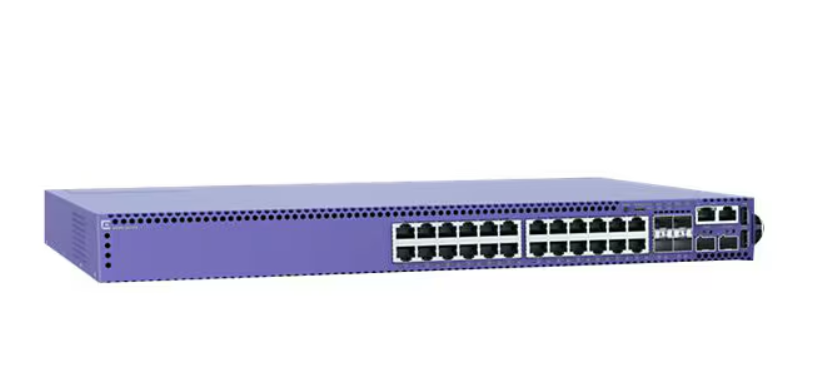

Extreme Networks ExtremeSwitching 5420F – switch – 24 ports – managed – rack-mountable


Quick tech specs

  • Switch
  • managed
  • rack-mountable
  • L3
  • 24 x Gigabit SFP + 4 x 1 Gigabit / 10 Gigabit SFP+ + 2 x SFP-DD (stackable)

35,099.00 د.إ

Know your gear

The Extreme Networks ExtremeSwitching 5420 Series as a universal hardware platform simplifies your deployment experience through powerful cloud management and simplified licensing. The 5420 supports a variety of Ethernet Fabric services, including Extreme’s Fabric Connect and IP Fabric. It also supports Fabric Attach for automated connection to either Layer 2 or Layer 3 Fabric Services.

The 5420 also supports high-speed stacking when running ExtremeXOS via its two built-in SFP-DD stacking ports. Up to eight systems can be stacked using qualified SFP+/SFP-DD direct attach cables and optical transceivers.



SKU: 5420F-24S-4XE Category: Tag:
Category Specification
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching
Model 5420F
Manufacturer EXTREME NETWORKS
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ae
Features Auto-sensing per device, Full duplex mode, Half duplex mode, MACsec support
Form Factor (Hubs & Switches) Rack-mountable
MAC Address Table Size 64K entries
Manageable Yes
Max Units In A Stack 8
Ports 24
Product Type Switch
Remote Management CLI
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
QSFP Slots SFP-DD (stackable)
Connectivity
Interface Provided 1 x console (micro-USB), 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 2 x network stack device SFP-DD, 2 x USB, 24 x 100 / 1000Base-X SFP, 4 x 1/10GBase-X SFP+
Port Quantity 24
Port Type Gigabit SFP
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+
Power
Power Supplies Installed 1
Power Supplies Supported 2
Redundant Power Supply Optional
Software
Software Type Base Software License, ExtremeCloud IQ Pilot (1 year)
Technical Information
Encryption 128-bit AES, 256-bit AES
Product Information
Device Type Internal power supply
Packaged Quantity 1
Performance Aggregate bandwidth: 208 Gbps, Frame rate: 154.8 Mpps
Ports (2nd) Quantity 4
Ports (3rd) Quantity 2
Dimensions & Weight
Height 1.7 inch
Weight 9.08 lbs
Width 17.4 inch
Depth 11.3 inch
Physical Characteristics
Color Category Blue
Certifications & Listings
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
