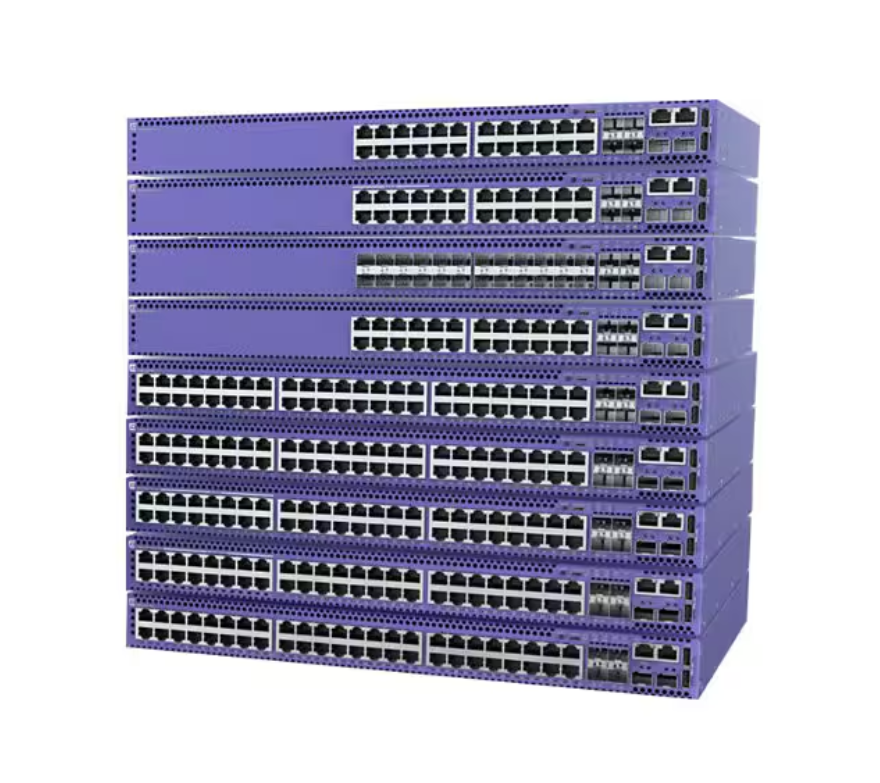

Extreme Networks ExtremeSwitching 5420M – switch – 48 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • Number of Port: 16

AED70,799.00

Add to Wishlist

Know your gear

The Extreme Networks 5420M Switch is a high-performance, feature-rich appliance designed for enterprise edge and aggregation deployments. This 16-port switch offers PoE+ connectivity.

SKU: 5420M-16MW-32P-4YE Category: Tag:
Category Specification
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching
Model 5420M
Manufacturer EXTREME NETWORKS
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ae, IEEE 802.3at, IEEE 802.3bt
Features Auto-sensing per device, Full duplex mode, Half duplex mode, MACsec support
Form Factor (Hubs & Switches) Rack-mountable
MAC Address Table Size 64K entries
Manageable Yes
Max Units In A Stack 8
PoE Budget 2400 watt
Ports 48
Power Over Ethernet (PoE) PoE++
Product Type Switch
Remote Management CLI
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
QSFP Slots 1/10/25 Gigabit SFP28
Connectivity
Interface Provided 1 x console (micro-USB), 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 16 x 100/1000/2.5G RJ-45 PoE++ – 90 W, 2 x network stack device SFP-DD, 2 x USB, 32 x 10/100/1000 Base-T RJ-45 PoE+ – 30 W, 4 x 1/10/25GBase-X SFP28 uplink
Port Quantity 16
Port Type 100/1000/2.5G (PoE++)
Ports Type (2nd) 10/100/1000 (PoE+)
Power
Power Supplies Supported 2
Redundant Power Supply Optional
Software
Software Type Base Software License, ExtremeCloud IQ Pilot (1 year)
Technical Information
Encryption 128-bit AES, 256-bit AES
Product Information
Device Type Internal power supply
Packaged Quantity 1
Performance Aggregate bandwidth: 424 Gbps, Frame rate: 315.5 Mpps
Ports (2nd) Quantity 32
Ports (3rd) Quantity 4
Ports (4th) Quantity 2
Ports (4th) Type SFP-DD (stackable)
Dimensions & Weight
Height 1.7 inch
Weight 11.68 lbs
Width 17.4 inch
Depth 13 inch
Physical Characteristics
Color Category Blue
Certifications & Listings
ENERGY STAR Certified No
Energy & Performance
Standby Power Consumption 60 watt
