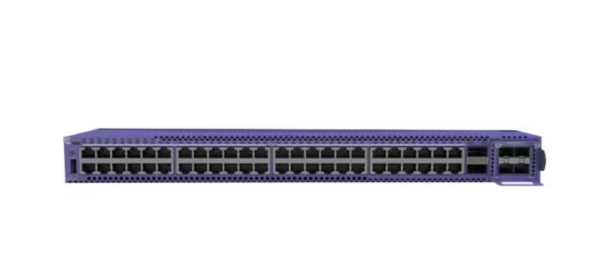

Extreme Networks ExtremeSwitching 5520 series 5520-12MW-36W – switch – 48 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 12x 100M/1/2.2/5GBase-T 802.3bt (90W) PoE Ports
  • 36x 10/100/1000Base-T 802.3bt (90W) PoE Ports

67,899.00 د.إ

Add to Wishlist

Know your gear

The Extreme Networks 5520 Series Switch is a universal edge and aggregation switch platform that delivers high performance and reliability required by contemporary data Center s. It is manageable by ExtremeCloud IQ for simple, secure public or private cloud management.

Category: Tag:
Category Specification
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching 5520 series
Model 5520-12MW-36W
Manufacturer EXTREME NETWORKS
Network & Communication
Compliant Standards IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3by, IEEE 802.3bz
Features 3 fan trays, Energy-Efficient Ethernet (EEE), Media Access Control Security (MACsec)
Form Factor (Hubs & Switches) Rack-mountable
Manageable Yes
Max Units In A Stack 8
Ports 48
Power Over Ethernet (PoE) PoE+
Product Type Switch
Stackable Stackable
Subcategory Network hubs and switches
Switching Type 5 Gigabit Ethernet
Expansion Slots
Expansion Slots 1 (total) / 1 (free) x Versatile Interface Module (VIM)
Connectivity
Interface Provided 1 x console (micro-USB) Type B, 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 12 x 100/1000/2.5G/5G RJ-45 PoE+, 2 x network stack device QSFP28 stacking, 2 x USB Type A, 36 x 1000Base-T RJ-45
Port Quantity 12
Port Type 100/1000/2.5G/5G (PoE+)
Ports Type (2nd) 10/100/1000 (PoE+)
Scanning
Bundled Services 1 year XIQ Pilot subscription
Power
Frequency 50/60 hertz
Hot-Plug Hot-plug
Power Supplies Supported 2
Redundant Power Supply Optional
Technical Information
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 122 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 10 – 95% (non-condensing)
Product Information
Device Type Internal power supply (not installed)
Packaged Quantity 1
Performance Aggregate switching bandwidth: 792 Gbps, Forwarding performance: 589.3 Mpps
Ports (2nd) Quantity 36
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 13.96 lbs
Width 17.4 inch
Depth 17.4 inch
Physical Characteristics
Color Category Purple
Certifications & Listings
Compliant Standards ACMA RCM, AS/NZS 60950-1, AS/NZS CISPR 32, ASTM D3580, BSMI, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1-14, CCC, CDRH, China RoHS SJ/T 11363-2006, CISPR 11 class A, CISPR 24:2010 Class A, CISPR 32 Class A, CNS 14336-1, Directive 2014/30/EU, EAC, EMC, EN 300 386 V1.6.1, EN 55011 class A, EN 55032 Class A, EN 60825-1 Class 1, EN 60950-1, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 6100-3-2, EN 6100-3-3, EN 6100-4-2, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2 – Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 – Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 – Class 3.1e, EN/ETSI 300 753, EN55024, FCC CFR21 Part 1040.10, FCC CFR47 Part 15 A, GB 4943.1-2011, GB/T9254-2008, ICES-003 Class A, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1, KCC, LVD 2014/35/EU, NRCS, RoHS 2011/65/EU, RoHS CNS 15663, SABS, UL 60950-1, UL 62368-1, VCCI Class A, WEEE 2012/19/EU
