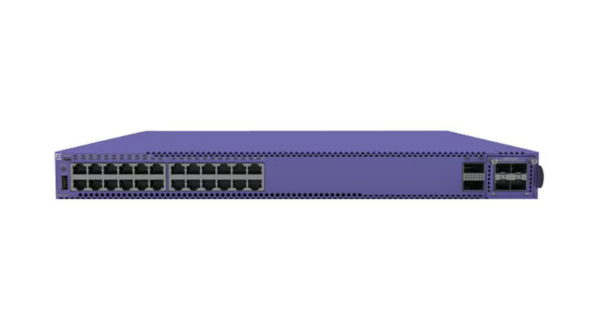

Extreme Networks ExtremeSwitching 5520 series 5520-24T – switch – 24 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 24T
  • managed
  • rack-mountable
  • Switch
  • 24 x 10/100/1000
  • with 1 year XIQ Pilot subscription

26,399.00 د.إ

Add to Wishlist

Know your gear

The ExtremeSwitching 5520 series is a family of high-performance, feature-rich edge and aggregation switches designed for the digital enterprise. The 5520 series universal hardware provides end-to-end secure network segmentation, in addition to advanced policy capabilities, and offers a user-selectable choice of Extreme’s flagship switch operating systems. This makes the 5520 a uniquely flexible platform that can be deployed across a range of edge, aggregation and wiring-closet environments.
SKU: 5520-24T-BASE Category: Tag:
Category Details
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching 5520 series
Model 5520-24T
Manufacturer EXTREME NETWORKS
Network & Communication
Compliant Standards IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bz
Features Auto-sensing per device, Energy-Efficient Ethernet (EEE), Full duplex mode, Half duplex mode, Media Access Control Security (MACsec), Two empty fan slots
Form Factor Rack-mountable
Manageable Yes
Max Units In A Stack 8
Ports 24
Product Type Switch
Stackable Stackable
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
Expansion Slots Available 1 (total) / 1 (free) x Versatile Interface Module (VIM)
Connectivity
Interface Provided 1 x console (micro-USB) Type B, 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 2 x network stack device QSFP28 stacking, 2 x USB Type A, 24 x 10/100/1000 Base-T RJ-45
Port Quantity 24
Port Type 10/100/1000
Power
Hot-Plug Hot-plug
Power Supplies Supported 2
Redundant Power Supply Optional
Technical Information
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 122 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 10 – 95% (non-condensing)
Product Information
Capacity Authenticated policy users/switch: 9216, BEB nodes per VSN: 500, Fabric adjacencies per switch: 128, Fabric nodes per area (BEB + BCB): 800, L2 VSN: 3500, L3 VSN: 256, Policy profiles: 63, Unique permit/deny rules per switch: 8120
Device Type Internal power supply (not installed)
Packaged Quantity 1
Performance Aggregate switching bandwidth: 648 Gbps, Forwarding performance: 482.1 Mpps
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Width 17.4 inch
Depth 17.4 inch
Physical Characteristics
Color Category Purple
Certifications & Listings
Compliant Standards ACMA RCM, AS/NZS 60950-1, AS/NZS CISPR 32, ASTM D3580, BSMI, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1-14, CCC, CDRH, China RoHS SJ/T 11363-2006, CISPR 11 class A, CISPR 24:2010 Class A, CISPR 32 Class A, CNS 14336-1, Directive 2014/30/EU, EAC, EMC, EN 300 386 V1.6.1, EN 55011 class A, EN 55032 Class A, EN 60825-1 Class 1, EN 60950-1, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 6100-3-2, EN 6100-3-3, EN 6100-4-2, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2 – Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 – Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 – Class 3.1e, EN/ETSI 300 753, EN55024, FCC CFR21 Part 1040.10, FCC CFR47 Part 15 A, GB 4943.1-2011, GB/T9254-2008, ICES-003 Class A, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1, KCC, LVD 2014/35/EU, NRCS, RoHS 2011/65/EU, RoHS CNS 15663, SABS, UL 60950-1, UL 62368-1, VCCI Class A, WEEE 2012/19/EU
