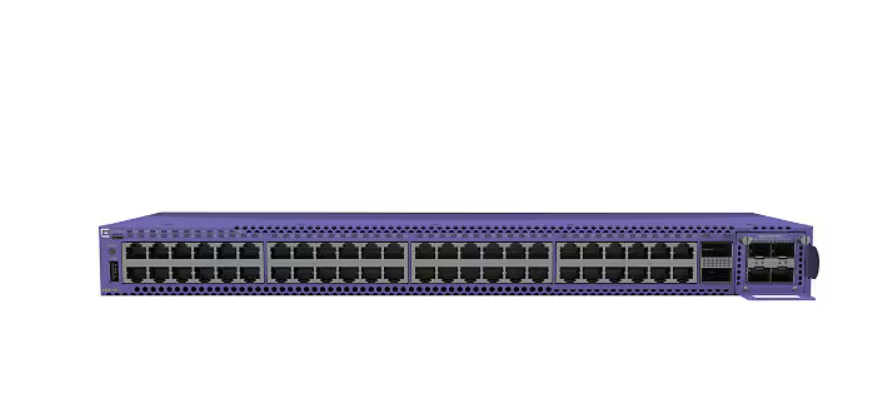

Extreme Networks ExtremeSwitching 5520 series 5520-48T – switch – 48 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • Interface: 48x 10/100/1000Base-T Ports

46,299.00 د.إ

Add to Wishlist

Know your gear

The Extreme Networks 5520 Series Switch is a universal edge and aggregation switch platform that delivers high performance and reliability required by contemporary data Center s. It is manageable by ExtremeCloud IQ for simple, secure public or private cloud management.

SKU: 5520-48T Category: Tag:
Category Specification
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching 5520 series
Model 5520-48T
Manufacturer EXTREME NETWORKS
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.3ab, IEEE 802.3az
Features 3 fan trays, Auto-sensing per device, Energy Efficient Ethernet, Full duplex mode, Half duplex mode, MACsec support
Form Factor (Hubs & Switches) Rack-mountable
Manageable Yes
Max Units In A Stack 8
Ports 48
Product Type Switch
Stackable Stackable
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
Expansion Slots 1 (total) / 1 (free) x Versatile Interface Module (VIM)
Connectivity
Interface Provided 1 x console (micro-USB) Type B, 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 2 x network stack device QSFP28, 2 x USB Type A, 48 x 10/100/1000 Base-T RJ-45
Port Quantity 48
Port Type 10/100/1000
Power
Frequency 50/60 hertz
Power Consumption Operational 171 watt
Power Supplies Supported 2
Redundant Power Supply Optional
Software
Software Type ExtremeCloud IQ Pilot (1 year)
Technical Information
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 122 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 10 – 95% (non-condensing)
Product Information
Capacity Authenticated policy users/switch: 9216, BEB nodes per VSN: 500, Fabric adjacencies per switch: 128, Fabric nodes per area (BEB + BCB): 800, L2 VSN: 3500, L3 VSN: 256, Policy profiles: 63, Unique permit/deny rules per switch: 8120
Device Type Internal power supply (not installed)
Packaged Quantity 1
Performance Aggregate switching bandwidth: 696 Gbps, Forwarding performance: 517.8 Mpps
Dimensions & Weight
Height 1.7 inch
Weight 12.7 lbs
Width 17.4 inch
Depth 17.4 inch
Physical Characteristics
Color Category Purple
Certifications & Listings
Compliant Standards ACMA RCM, ANATEL, AS/NZS 60950-1, AS/NZS CISPR32:2013, ASTM D3580, BSMI, CAN/CSA-C22.2 No. 60950-1, CB, CCC, CDRH, China RoHS, CISPR 24:2010 Class A, CISPR 32 Class A, CNS 15663, Directive 2011/65/EU, Directive 2014/35/EU, EAC, EMC, EMC 2014/30/EU, EN 300 386, EN 55011, EN 55032 Class A, EN 60825-1 Class 1, EN 60950-1, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-2, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2, EN/ETSI 300 753 (1997-10), EN55024, ETSI EN 300 019-2-2 V2.1.2, ETSI EN 300 019-2-3 V2.1.2, FCC CFR21 Part 1040.10, FCC CFR47 Part 15 A, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-6, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, KCC, NOM, NRCS, REACH, RoHS 2011/65/EU, SJ/T 11363-2006, Taiwan BSMI RoHS, UL 60950-1, UL/CUL 62368-1, VCCI Class A, WEEE 2012/19/EU
ENERGY STAR Certified No
