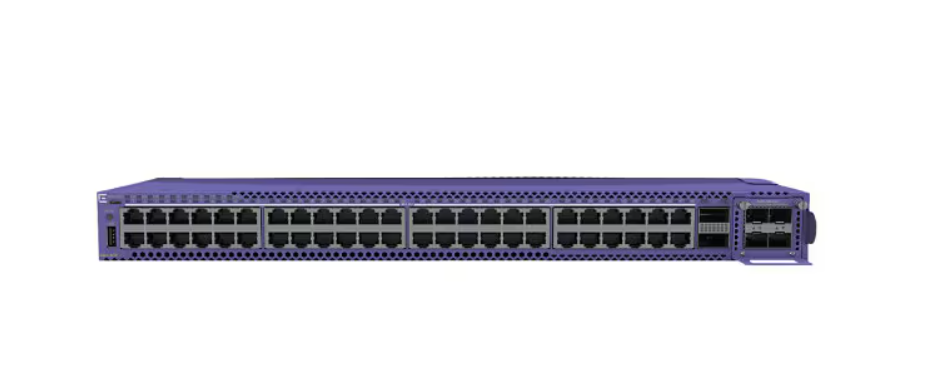

Extreme Networks ExtremeSwitching 5520 series 5520-48W – switch – 48 ports – managed – rack-mountable
Quick tech specs
- 48x 10/100/1000BASE-T Full/half Duplex 802.3bt 90W PoE MACsec Capable Ports
- 3 Fan Modules
- 2 Unpopulated Modular PSU Slots
- Includes 2x Stacking/QSFP28 Ports
- 1 VIM Slot
- Base Software License
55,499.00 د.إ
Know your gear
The Extreme Networks 5520 Switch is a high-performance, feature-rich switch for enterprise edge and aggregation deployments. It offers 48 ports for connectivity along with PoE capability. This switch provides end-to-end secure network segmentation along with enhanced policy capabilities and more.
| Category | Specification |
|---|
| Overview |
| Brand | Extreme Networks |
| Product Line | Extreme Networks ExtremeSwitching 5520 series |
| Model | 5520-48W |
| Manufacturer | EXTREME NETWORKS |
| Network & Communication |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3by, IEEE 802.3bz |
| Features | 3 fan modules, Energy-Efficient Ethernet (EEE), MACsec support |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Manageable | Yes |
| Max Units In A Stack | 8 |
| Ports | 48 |
| Product Type | Switch |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Expansion Slots |
| Expansion Slots | 1 (total) / 1 (free) x Versatile Interface Module (VIM) |
| Connectivity |
| Interface Provided | 1 x console (micro-USB) Type B, 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 2 x network stack device QSFP28 stacking, 2 x USB Type A, 48 x 10/100/1000 Base-T (PoE) RJ-45 90 W |
| Port Quantity | 48 |
| Port Type | 10/100/1000 (PoE) |
| Scanning |
| Bundled Services | 1 year XIQ Pilot subscription |
| Power |
| Frequency | 50/60 hertz |
| Power Consumption Operational | 59 watt |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Optional |
| Technical Information |
| Humidity Range Storage | 10 – 95% (non-condensing) |
| Max Operating Temperature | 122 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| Operating Humidity | 10 – 95% (non-condensing) |
| Product Information |
| Device Type | Internal power supply (not installed) |
| Packaged Quantity | 1 |
| Performance | Aggregate switching bandwidth: 696 Gbps, Forwarding performance: 517.8 Mpps |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Weight | 13.36 lbs |
| Width | 17.4 inch |
| Depth | 17.4 inch |
| Physical Characteristics |
| Color Category | Purple |
