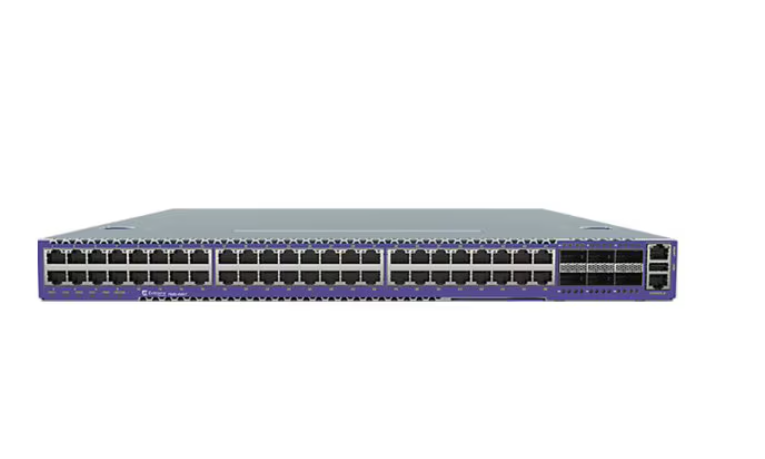

Extreme Networks ExtremeSwitching 7520-48XT-6C – switch – 48 ports – managed – rack-mountable


Quick tech specs

  • 48XT-6C
  • L3
  • 48 x 1/10GBase-T + 6 x 40/100 Gigabit QSFP28
  • rack-mountable
  • Switch
  • managed
  • back to front airflow

179,999.00 د.إ

Know your gear

The Extreme 7520 are purpose-built 48-port switches designed for high-performance aggregation and core applications. As a universal hardware platform, the 7520 provides end-to-end secure network segmentation, in addition to advanced policy capabilities, with a user-selectable choice of Extreme’s flagship switch operating systems. This makes the 7520 a uniquely flexible platform that can be deployed in a variety of aggregation and core environments.

The Extreme 7520 network hardware platform enables organizations to design networks that accommodate a variety of applications and east-west traffic patterns. With its high-density scale-out architecture, leading power efficiency, and airflow options, the 7520 platform delivers a cost-effective solution that optimizes power, cooling, and equipment room space, wherever your network operating center might be.

SKU: 7520-48XT-6C-AC-R Category: Tag:
Category Details
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching
Model 7520-48XT-6C
Manufacturer EXTREME NETWORKS
Memory
Memory Technology DDR4 SDRAM
RAM Installed 16 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3by
Features Non-blocking architecture, Wire speed forwarding, Zero-touch provisioning (ZTP)
Form Factor Rack-mountable
Manageable Yes
Max Units In A Stack 8
Ports 48
Product Type Switch
Remote Management CLI, HTTP, HTTPS
Stackable Yes
Status Indicators System
Subcategory Network hubs and switches
Switching Type 10 Gigabit Ethernet
Connectivity
Interface Provided 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 1 x USB Type A, 48 x 1/10Gbit LAN RJ-45, 6 x 40/100Gbit LAN QSFP28
Port Quantity 48
Port Type 1/10GBase-T
Ports Type (2nd) 40/100 Gigabit QSFP28
Power
Features Rear-to-front airflow
Frequency 50 – 60 Hz
Hot-Plug Yes
Power Provided 800 watts
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Optional
Required Voltage AC 100-140/200-240 volt
Software
Software Type Base Software License
Technical Information
Built-in Devices 128 GB SSD, 6 x fans
Humidity Range Storage 10 – 95% RH (non-condensing)
Max Operating Temperature 122°F (50°C)
Max Storage Temperature 158°F (70°C)
Min Operating Temperature 32°F (0°C)
Min Storage Temperature -40°F (-40°C)
Operating Humidity 10 – 95% RH (non-condensing)
Product Information
Airflow Direction Back to front airflow
Capacity Packet buffer size: 32 MB
Device Type Internal power supply
Packaged Quantity 1
Performance Average latency: 2400 ns, Forwarding rate: 1000 Mpps, Line rate: 2.16 Tbps, Switching capacity: 1.08 Tbps
Ports (2nd) Quantity 6
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1U
Weight 20.88 lbs
Width 17.3 inch
Depth 20.9 inch
Physical Characteristics
Color Category Purple
Certifications & Listings
Compliant Standards ACMA RCM, ANATEL, AS/NZS 60950-1, ASTM D3580, CISPR 24 Class A, FCC CFR 47 Part 15 Class A, UL 60950-1, WEEE 2012/19/EU
