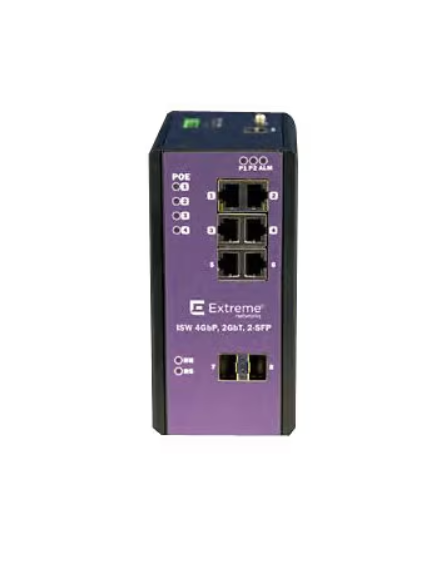

Extreme Networks ExtremeSwitching Industrial Ethernet Switches ISW 4GbP, 2GbT, 2-SFP – switch – 4 ports – managed
Quick tech specs
- SFP
- managed
- DIN rail mountable, wall-mountable
- DC power
- Switch
- 4 x 10/100/1000 (PoE+) + 2 x SFP + 2 x 10/100/1000
- PoE+ (120 W)
13,599.00 د.إ
Know your gear
Designed for industrial use, Extreme Industrial Switches provide continuous uptime, manageability and operational efficiency.
Extreme Industrial Switches are an excellent choice for industrial environments, including intelligent transportation systems, utilities, and smart cities. Full redundant ring technology creates fault-tolerant networks with high availability with industry standard technologies.
| Category | Details |
|---|
| Overview |
| Brand | Extreme Networks |
| Product Line | Extreme Networks ExtremeSwitching Industrial Ethernet Switches |
| Model | ISW 4GbP, 2GbT, 2-SFP |
| Manufacturer | Extreme Networks |
| Memory |
| Flash Memory Installed | 16 megabyte |
| RAM Installed | 128 megabyte |
| Network & Communication |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Features | 4MB packet buffer, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Back Pressure Support, Broadcast Storm Control, DHCP client/relay/server/snooping, Flow control, Full/Half duplex mode, IGMP snooping, LACP, MAC/IP ACLs, MIB II, MSTP, Port Security, QoS, RSTP, SNTP, STP, Store and forward, Storm Control, Syslog, Tagged VLAN, VLAN support |
| Form Factor | DIN rail mountable, Wall-mountable |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8K entries |
| Manageable | Yes |
| PoE Budget | 120 watt |
| Ports | 4 |
| Power Over Ethernet (PoE) | PoE+ |
| Product Type | Switch |
| Remote Management | CLI, HTTPS, RMON 1, 2, 3, 9, SNMP 1, 2c, 3, SSH, Telnet |
| Routing Protocol | IGMP, IGMPv2, IGMPv3 |
| Status Indicators | Port status, Power, Status |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Expansion Slots |
| QSFP Slots | 10/100/1000 |
| Connectivity |
| Interface Provided | 2 x 1000Base-TX RJ-45, 2 x SFP, 4 x 1000Base-T RJ-45 PoE+ |
| Port Quantity | 4 |
| Port Type | 10/100/1000 (PoE+) |
| Ports Type (2nd) | SFP (mini-GBIC) |
| Power |
| Power Consumption Operational | 15 watt |
| Redundant Power Supply | Yes |
| Technical Information |
| Max Operating Temperature | 167 degree Fahrenheit |
| Max Storage Temperature | 185 degree Fahrenheit |
| Min Operating Temperature | -40 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| MTBF | >25 years |
| Operating Humidity | 5 – 95% (non-condensing) |
| Product Information |
| Authentication Method | RADIUS, TACACS+ |
| Capacity | Queues per port: 8, VLANs supported: 1024 |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Aggregate bandwidth: 16 Gbps |
| Ports (2nd) Quantity | 2 |
| Ports (3rd) Quantity | 2 |
| Dimensions & Weight |
| Height | 6.1 inch |
| Weight | 3.11 lbs |
| Width | 3 inch |
| Depth | 5 inch |
| Physical Characteristics |
| Color Category | Black, Purple |
| Certifications & Listings |
| Compliant Standards | CB, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1-03, EMC 2004/108/EC, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-2, EN 61000-6-4, FCC Part 15 A, ICES-003 Class A, IEC 60950-1 Second Edition, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-9, IP30, RoHS, UL 60950-1 Second Edition, WEEE |
| ENERGY STAR Certified | No |
