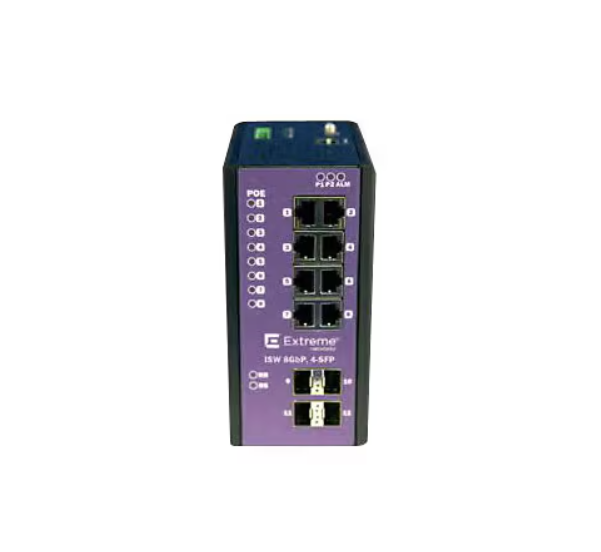

Extreme Networks ExtremeSwitching Industrial Ethernet Switches ISW 8GBP,4-SFP – switch – 8 ports – managed

Add to Wishlist

Quick tech specs

  • SFP
  • managed
  • DIN rail mountable, wall-mountable
  • DC power
  • Switch
  • 8 x 10/100/1000 (PoE+) + 4 x SFP
  • PoE+ (240 W)

AED16,699.00

Add to Wishlist

Know your gear

Designed for industrial use, these Extreme industrial switches provide continuous uptime, manageability and operational efficiency. With full PoE+ power per PoE port, each switch offers the performance needed for today’s power-hungry surveillance devices and WLAN access points. Extreme industrial switches are an excellent choice for industrial environments, including intelligent transportation systems, utilities, and smart cities. Full redundant ring technology creates fault-tolerant networks with high availability with industry standard technologies.
SKU: 16804 Category: Tag:
Category Details
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching Industrial Ethernet Switches
Model ISW 8GBP,4-SFP
Manufacturer EXTREME NETWORKS
Memory
Flash Memory Installed 16 megabyte
RAM Installed 128 megabyte
Network & Communication
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Features 4MB packet buffer, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Back Pressure Support, Broadcast Storm Control, DHCP client, DHCP relay, DHCP server, DHCP snooping, Flow control, Full duplex mode, Half duplex mode, IGMP snooping, Link Aggregation Control Protocol (LACP), MAC and IP-based ACLs support, Management Information Base (MIB) II, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, SNTP support, Spanning Tree Protocol (STP) support, Store and forward, Storm Control, Syslog support, Tagged VLAN, VLAN support
Form Factor (Hubs & Switches) DIN rail mountable, Wall-mountable
Jumbo Frame Support 9KB
MAC Address Table Size 8K entries
Manageable Yes
PoE Budget 240 watt
Ports 8
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Routing Protocol IGMP, IGMPv2, IGMPv3
Status Indicators Port status, Power, Status
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 4 x SFP, 8 x 1000Base-T RJ-45
Port Quantity 8
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) SFP (mini-GBIC)
Power
Power Consumption Operational 15 watt
Redundant Power Supply Yes
Technical Information
Max Operating Temperature 167°F
Max Storage Temperature 185°F
Min Operating Temperature -40°F
Min Storage Temperature -40°F
MTBF >25 Years
Operating Humidity 5 – 95% (non-condensing)
Product Information
Authentication Method RADIUS, TACACS+
Capacity Queues per port: 8, VLANs supported: 1024
Device Type Internal power supply
Packaged Quantity 1
Performance Aggregate bandwidth: 24 Gbps
Ports (2nd) Quantity 4
Dimensions & Weight
Height 6.1 inch
Weight 3.11 lbs
Width 3 inch
Depth 5 inch
Physical Characteristics
Color Category Black, Purple
Certifications & Listings
Compliant Standards CB, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1-03, EMC 2004/108/EC, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-2, EN 61000-6-4, FCC Part 15 A, ICES-003 Class A, IEC 60950-1 Second Edition, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-9, IP30, RoHS, UL 60950-1 Second Edition, WEEE
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
