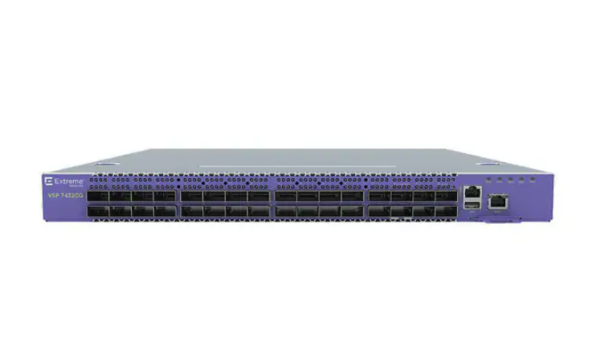

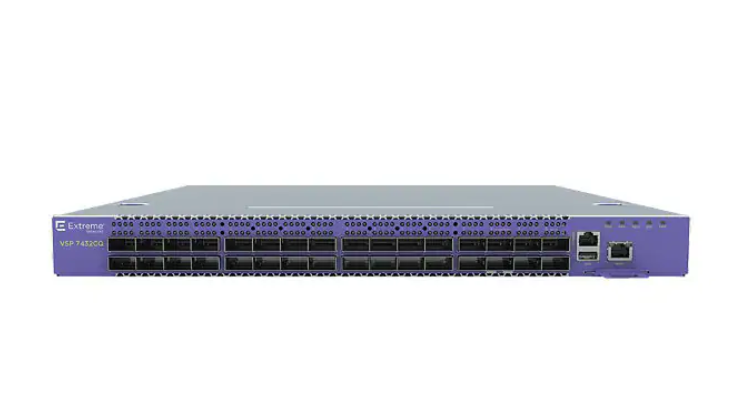

Extreme Networks ExtremeSwitching VSP 7400 VSP7400-32C – switch – 32 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 32C
  • L3
  • 32 x 10 Gigabit / 25 Gigabit / 40 Gigabit / 100 Gigabit QSFP28
  • Switch
  • managed
  • rack-mountable

AED182,899.00

Add to Wishlist

Know your gear

The Virtual Services Platform (VSP) 7400 Series are space-efficient, high-performance Ethernet switches. Featuring a compact 1RU form factor, the VSP 7400 Series can be flexibly deployed in either core/aggregation or high-density top-of-rack architectures. It also supports Extreme Fabric Connect for simplified, automated network services delivery.
SKU: VSP7400-32C Category: Tag:
Category Details
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching VSP 7400
Model VSP7400-32C
Manufacturer EXTREME NETWORKS
Processor
Processors Installed 1
Memory
Memory Technology DDR4 SDRAM
RAM Installed 16 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1ag, IEEE 802.1ah, IEEE 802.1aq, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbp, IEEE 802.1Qcj, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 6 fans, ARP support, Auto-negotiation, Deep Packet Inspection (DPI), Full duplex capability, Hot swappable fan, IPFIX, Link Aggregation Control Protocol (LACP), MLT, MSTP support, Port mirroring, Port-based VLAN, QoS, RSTP, RSPAN, sFlow, SPB, Support IP Shortcut Routing, Support Virtual Service Networks (VSN), VXLAN, VRF, VLAN support
Form Factor Rack-mountable
Jumbo Frame Support 9600 bytes
MAC Address Table Size 160,000 entries
Manageable Yes
Ports 32
Product Type Switch
Routing Protocol BGP, BGP+, IGMP, IGMPv2, IGMPv3, OSPFv2, OSPFv3, PIM-SM, PIM-SSM, RIP-1, RIP-2, RIPng
Subcategory Network hubs and switches
Switching Type 100 Gigabit Ethernet
Connectivity
Interface Provided 1 x 1000Base-T RJ-45 management, 1 x micro-USB output Type A storage, 1 x serial (console) RJ-45 management, 32 x 100Gbit LAN QSFP28
Port Quantity 32
Port Type 10 Gigabit / 25 Gigabit / 40 Gigabit / 100 Gigabit QSFP28
Power
Frequency 50 – 60 hertz
Hot-Plug Hot-plug
Power Provided 750 watt
Power Supplies Installed 1
Power Supplies Supported 2
Redundant Power Supply Optional
Redundant Power Supply Supported 1+1 (with optional power supply)
Technical Information
Built-in Devices 128 GB SSD
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 113°F (45°C)
Max Storage Temperature 158°F (70°C)
Min Operating Temperature 32°F (0°C)
Min Storage Temperature -40°F (-40°C)
Operating Humidity 10 – 95% (non-condensing)
Operating System Required VSP Operating System Software (VOSS) 8.0
Product Information
Capacity ARP entries: 56,000, BCB IP multicast (S, G) streams: 50,000, BCB/BEB nodes per region: 2,000, BEB nodes per VSN: 2,000, BGP peers: 256, BGPv6 peers: 256, IGMP interfaces: 4,059, IP multicast streams: 6,000, IP shortcut routes (IPv4): 16,000, IP shortcut routes (IPv6): 7,500, IPv4 routes: 16,000, IPv6 neighbor table entries: 32,000, IPv6 routes: 7,500, L2 multicast virtual service networks: 2,000, L2 virtual service networks: 4,000, L3 multicast virtual service networks: 256, L3 virtual service networks: 256, Links per MLT/LACP group: 8, MAC addresses: 80,000, Maximum ACL rules per interface (IPv4) egress rules: 254, Maximum ACL rules per interface (IPv4) ingress rules: 512, Maximum ACL rules per interface (IPv6) egress rules: 256, Maximum ACL rules per interface (IPv6) ingress rules: 384, MLD interfaces: 4,059, MLT/LACP groups: 32, MSTP instances: 64, OSPF interfaces: 512, OSPFv3 interfaces: 500, PIM active interfaces: 128, RIP interfaces: 200, RIPng interfaces: 48, VLANs supported: 4,059, VRF instances: 256
Device Type Internal power supply
Packaged Quantity 1
Performance Switching capacity: 6.4 Tbps
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 16.29 lbs
Width 17.3 inch
Depth 22.3 inch
Physical Characteristics
Color Category Purple
Certifications & Listings
Compliant Standards ACMA RCM, AS/NZS 60950-1, AS/NZS CISPR 32, ASTM D3580, BSMI, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1, CB, CCC, CDRH, China RoHS SJ/T 11363-2006, CISPR 11 class A, CISPR 24:2010 Class A, CISPR 32 Class A, CNS 14336-1, EAC, EMC 2014/30/EU, EN 300 386 V1.6.1, EN 55011 class A, EN 55032 Class A, EN 60825-1 Class 1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2, EN/ETSI 300 753, EN55024, ETSI EN 300 019-2-2 V2.1.2, ETSI EN 300 019-2-3 V2.1.2, FCC CFR21 Part 1040.10, FCC CFR47 Part 15 B Class A, GB 4943.1-2011, GB 9254, ICES-003 Class A, IEC 60950-1, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, KCC, LVD 2014/35/EU, NRCS, RoHS 2011/65/EU, RoHS CNS 15663, SABS, UL 60950-1, UL 62368-1, VCCI Class A, WEEE 2012/19/EU
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
