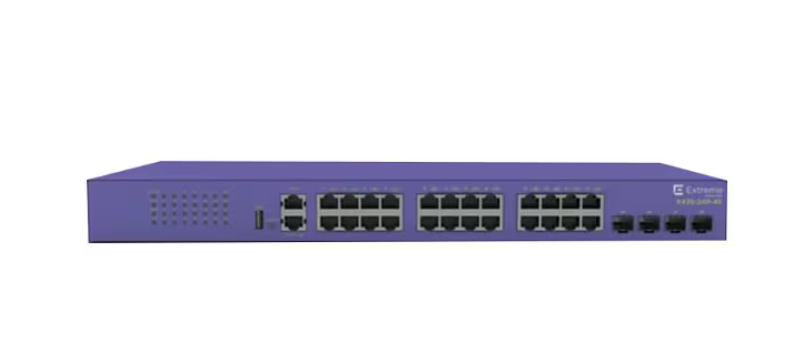

Extreme Networks ExtremeSwitching X435-24T-4S – switch – 24 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 24T-4S
  • managed
  • rack-mountable
  • Switch
  • 24 x 10/100/1000 + 4 x SFP (mini-GBIC) (uplink)

AED7,099.00

Add to Wishlist

Know your gear

The ExtremeSwitching X435 Series are standalone Ethernet switches suited to the needs of cost-conscious enterprises looking for a value-based edge solution. Powered by Extreme Networks ExtremeXOS, the X435 Series offers comprehensive Layer 2 switching, static routing, advanced PoE, role-based policy and comprehensive security services. This makes it ideal for enterprises looking for cost-effective Ethernet connectivity in their branch/small sites or at their network edge.
SKU: X435-24T-4S Category: Tag:
Category Details
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching
Model X435-24T-4S
Manufacturer Extreme Networks
Processor
Processor Brand ARM
Processor Type A9
Processors Installed 1
Memory
Flash Memory Installed 128 megabyte
RAM Installed 512 megabyte
Network & Communication
Compliant Standards IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz
Features Energy Efficient Ethernet, Fanless, Full duplex mode, Half duplex mode, Layer 2 switching
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 16K entries
Manageable Yes
Ports 24
Product Type Switch
Routing Protocol Static IP routing
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 1 x USB Type A, 24 x 1000Base-T RJ-45, 4 x 1/2.5GBase-X SFP
Port Quantity 24
Port Type 10/100/1000
Ports Type (2nd) SFP (mini-GBIC) (uplink)
Power
Frequency 50/60 hertz
Power Consumption Operational 21.3 watt
Power Supplies Installed 1
Software
Software Type ExtremeXOS Value Edge
Technical Information
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 113 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 10 – 95% (non-condensing)
Product Information
Capacity ACL entries (ingress): 1000, IP multicast entries: 1500, IP multicast groups: 64, IPv4 hosts: 3100, IPv6 hosts: 500, LPM entries (IPv4): 32, LPM entries (IPv6): 16, Policy profiles: 63, Port queues: 8, VLANs supported: 4096
Device Type Internal power supply
Packaged Quantity 1
Performance Aggregate switching bandwidth: 68 Gbps, Forwarding rate: 50.6 Mpps
Ports (2nd) Quantity 4
Rack Mounting Kit Included
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 6.5 lbs
Width 17.4 inch
Depth 10 inch
Physical Characteristics
Color Category Purple
Certifications & Listings ACMA RCM, AS/NZS 60950-1, AS/NZS CISPR 32, ASTM D3580, BSMI, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1, CB, CCC, CDRH, China RoHS SJ/T 11363-2006, CISPR 11 class A, CISPR 24:2010 Class A, CISPR 32 Class A, CNS 14336-1, EAC, EMC, EMC 2014/30/EU, EN 300 386 V1.6.1, EN 55011 class A, EN 55032 Class A, EN 60825-1 Class 1, EN 60950-1, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 6100-3-2:2014, EN 6100-3-3:2013, EN 6100-4-2, EN 62368-1, EN/ETSI 300 019-2-1 v2.1.2 – Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 – Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 – Class 3.1e, EN/ETSI 300 753, EN55024, FCC CFR21 Part 1040.10, FCC CFR47 Part 15 B Class A, GB 4943.1-2011, GB 9254, ICES-003 Class A, IEC 60950-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1, KCC, LVD 2014/35/EU, NRCS, RoHS 2011/65/EU, RoHS CNS 15663, SABS, UL 60950-1, UL 62368-1, VCCI Class A, WEEE 2012/19/EU
