Extreme Networks ExtremeSwitching X440-G2 X440-G2-12t-10GE4 – switch – 12 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • G2 X440-G2-12t-10GE4
  • managed
  • rack-mountable
  • Switch
  • 12 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+

12,699.00 د.إ

Add to Wishlist

Know your gear

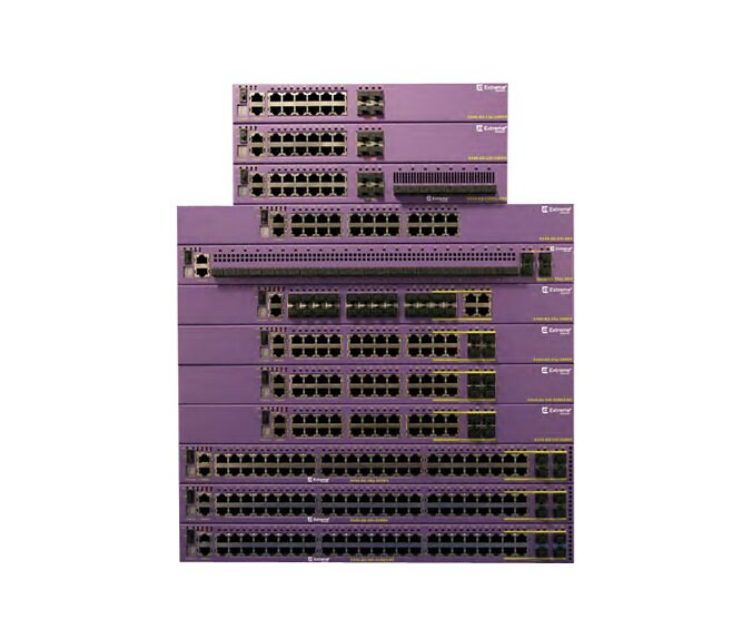

The ExtremeSwitching X440-G2 series is based on Extreme Networks ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability and operational efficiency. Each switch offers the same high-performance, non-blocking hardware technology, in the Extreme Networks tradition of simplifying network deployments through the use of common hardware and software throughout the network. The ExtremeSwitching X440-G2 switches are cost-effective campus edge switches with IEEE 802.3at PoE-plus.
SKU: 16530 Category: Tag:
Category Details
Overview
Brand Extreme Networks
Product Line Extreme Networks ExtremeSwitching X440-G2
Model X440-G2-12t-10GE4
Manufacturer Extreme Networks
Processor
Clock Speed 1 GHz
Processor Brand MIPS
Memory
Flash Memory Installed 4 GB
Memory Technology DDR3 SDRAM
RAM Installed 1 GB
Network & Communication
Compliant Standards IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Features 1.5MB packet buffer, CLEAR-Flow Security Rules Engine, DoS attack prevention, Traffic shaping
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 16K entries
Manageable Yes
Ports 12
Product Type Switch
Stackable Stackable
Status Indicators Fan, Port status, Power
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x console RJ-45 management, 1 x management (Gigabit LAN) RJ-45, 12 x 1000Base-T RJ-45, 4 x 10GBase-X SFP+
Port Quantity 12
Port Type 10/100/1000
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+
Power
Features Redundant Power System (RPS) connector
Frequency 50/60 hertz
Hot-Plug Hot-plug
Power Consumption Operational 32 watt
Power Supplies Installed 1
Power Supplies Supported 2
Redundant Power Supply Optional
Software
Software Type ExtremeXOS Edge
Technical Information
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 122 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
Operating Humidity 10 – 95% (non-condensing)
Product Information
Capacity QoS hardware queues per port: 8, Virtual interfaces (VLANs): 4094
Device Type Internal power supply
Packaged Quantity 1
Performance Aggregate switching bandwidth: 104 Gbps, Forwarding performance: 77.4 Mpps, Latency (64-byte packets): 4 µs
Ports (2nd) Quantity 4
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 5.82 lbs
Width 12 inch
Depth 10.3 inch
Physical Characteristics
Color Category Purple
Certifications & Listings
Compliant Standards 21 CFR 1040.10, ACMA, AS/NZS 60950-1, CB, CCC, CDRH, China RoHS, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1-03, EMC, EMC 2004/108/EC, EN 60825-1, EN 60950-1 Second Edition, EN 61000-3-2:2006, EN 61000-3-3:2008, EN 61000-4-11, EN 61000-4-2:2009, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5:2006, EN 61000-4-6:2009, EN55022:2006+A1:2007 Class A, EN55024 Class A, FCC, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1 Second Edition, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-2:2008, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-4:2004, IEC 61000-4-5, IEC 61000-4-5:2005, IEC 61000-4-6, IEC 61000-4-6:2008, KCC, LVD 2006/95/EC, RCM, RoHS, UL 60950-1 Second Edition, VCCI Class A, WEEE
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
